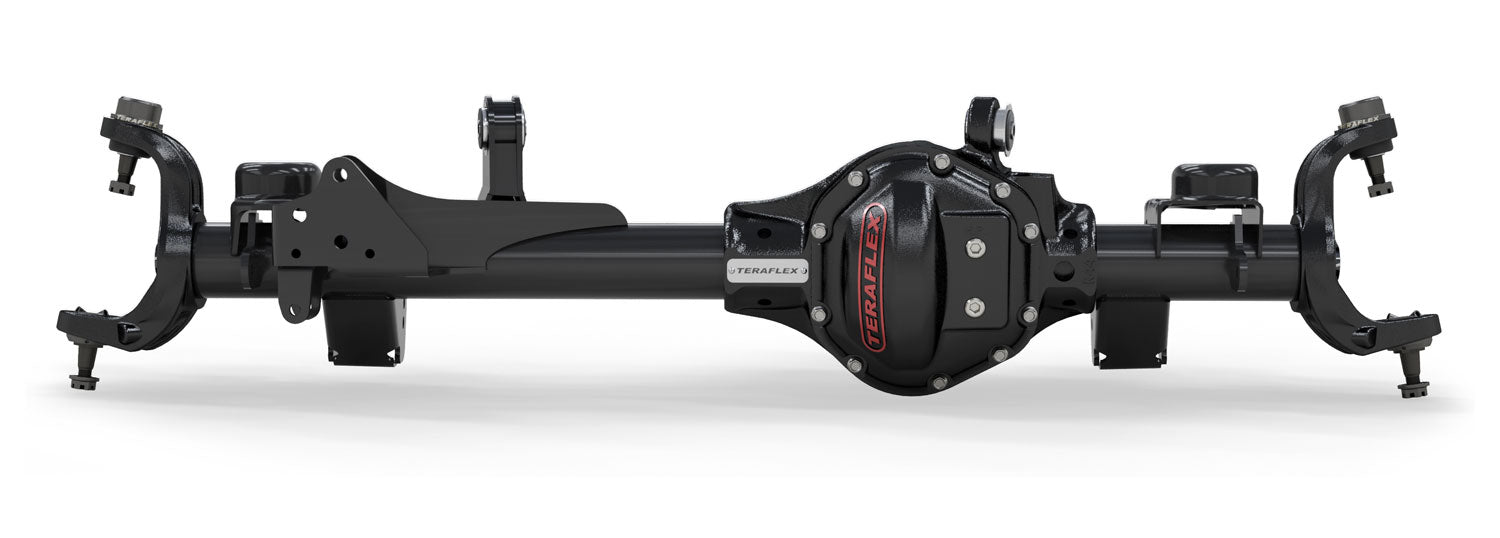

TeraFlex Tera44 HD Front Axle Housing W/ 5.13 R&P & ARB Locker (4-6" Lift) for 2007-2018 Jeep Wrangler - Recon Recovery

TeraFlex Tera44 HD Front Axle Housing W/ 5.13 R&P & ARB Locker (4-6" Lift) for 2007-2018 Jeep Wrangler

by TeraFlex
SKU 3543513
Availability:
In stock
$4,794.99 - $4,794.99
$4,794.99
$4,794.99 - $4,794.99
$4,794.99

Does this part fit my vehicle?

Verify

TeraFlex HD Front Axle Housings are perfect for replacing bent broken or damaged axles in JK Wrangler/Unlimited vehicles including Rubicon models. Can also be used as a direct bolt-on upgrade for Jeep owners looking to beef up the stock axles- weak areas. Our Bare HD Front Axle Housings feature a heavy-duty housing with axle tubes bracketry and forged inner knuckles as well as pre-installed inner seals and upper control arm bushings. Stepping up to our Tera44 HD Front Axle Housing w/ Ring & Pinion & ARB Locker provides a choice of pre-installed ring and pinon gears ARB air locker and TeraFlex HD Ball Joints. Transfer your outer stub shafts outer knuckles and outer axle assembly (unit bearings brakes sensors) to make a complete axle assembly. Requires new inner axle shafts.

Features
  • 3.25 O.D. x 0.5" wall extreme duty axle tube increases torsional strength to resist bending
  • Asymmetric housing design for extra-long tube side strength
  • Pre-installed inner axle seals
  • HD forged inner knuckles w/ greater upper and lower section strength
  • Ductile cast iron housing w/ increased rib gussets
  • HD ductile iron differential cover
  • Smooth radius bottom design to glide over rocks and obstacles
  • Integrated lower control arm skid plates
  • High-flow oil passages and bottom oil drain hole for simple fluid changes
  • Reinforced front track bar mount (ties into spring pad) for greater strength
  • UV protected triple-stage powder coat for corrosion resistance
  • 1/4"-thick CNC laser cut axle brackets for extreme strength
  • Integrated factory location upper control arm mount
  • Pre-installed upper control arm bushings
  • Proper pinion angle for lifted JK applications
  • 4-6" Lift features a raised pinion angle and raised track bar bracket (where applicable)
  • Pre-tapped hole on spring perch for bump stop extensions
  • Pre-drilled holes for limit straps and lower spring retainers
  • Retains all JK ESP, ABS, and speedometer sensor capability
  • 100% engineered, designed, and built in the USA w/ new components
  • 1-Year/Unlimited Mileage Warranty
Fitment
  • 2007-2009 Jeep Wrangler — Does NOT fit: Sport, Unlimited Sport
  • 2010 Jeep Wrangler
  • 2011-2017 Jeep Wrangler — Does NOT fit: Unlimited X, X
  • 2018 Jeep Wrangler — Does NOT fit: Sport S, Unlimited Sport S, Unlimited X, X

Additional fitment notes:

  • JK Wrangler (2-door)
  • JK Wrangler Unlimited (4-door)
Specifications
  • Installation Time: 6 hours
  • Length: 60.5
  • Width: 20
  • Height: 23
  • Weight: 265.0 lbs

Warranty

Backed by TeraFlex limited warranty — Contact Recon Recovery for any warranty claims.
