TeraFlex Tera30 HD Front Axle Housing - Bare (4-6" Lift) for 2007-2018 Jeep Wrangler - Recon Recovery

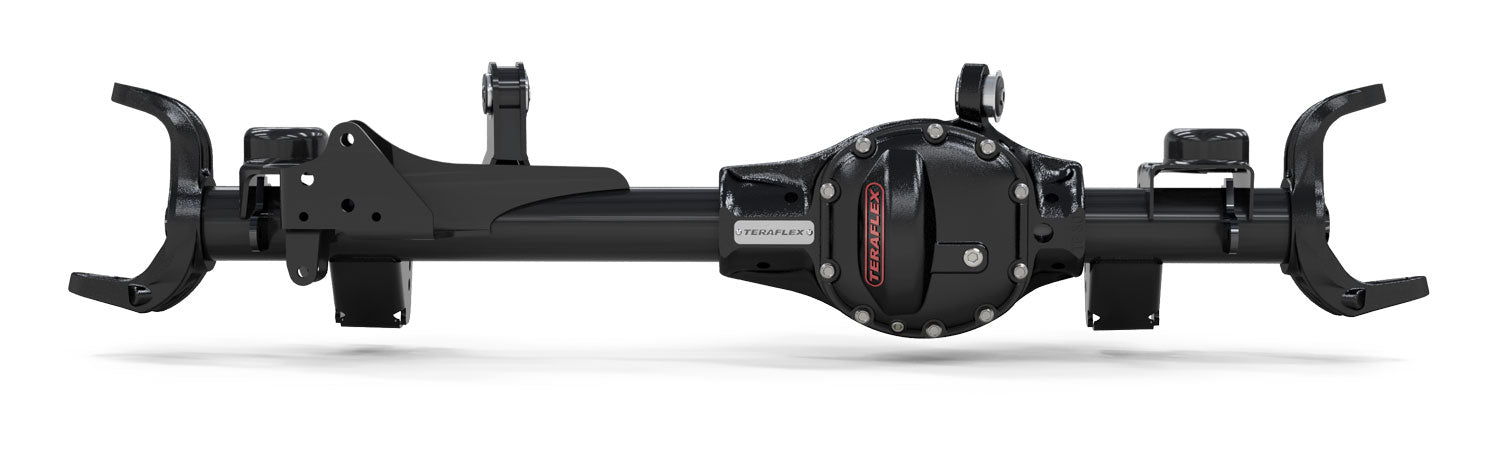

TeraFlex Tera30 HD Front Axle Housing - Bare (4-6" Lift) for 2007-2018 Jeep Wrangler

by TeraFlex
SKU 3503004
Availability:
In stock
$2,620.99 - $2,620.99
$2,620.99
$2,620.99 - $2,620.99
$2,620.99

Does this part fit my vehicle?

Verify

TeraFlex HD Front Axle Housings are perfect for replacing bent broken or damaged axles in JK Wrangler/Unlimited vehicles including Rubicon models. Can also be used as a direct bolt-on upgrade for Jeep owners looking to beef up the stock axles- weak areas. Our Bare HD Front Axle Housings feature a heavy-duty housing with axle tubes bracketry and forged inner knuckles as well as pre-installed inner seals and upper control arm bushings. Transfer your existing internal components (differential ring and pinion axle shafts) and outer components (stub shafts knuckle assembly ball joints unit bearings brakes sensors) to the new housing!

Features
  • 3.25" O.D. x 0.25" wall axle tube increases torsional strength to resist bending w/ minimal weight increase
  • Asymmetric housing design for extra-long tube side strength
  • Pre-installed inner axle seals
  • HD forged inner knuckles w/ greater upper and lower section strength
  • Ductile cast iron housing w/ increased rib gussets
  • HD ductile iron differential cover
  • Smooth radius bottom design to glide over rocks and obstacles
  • Integrated lower control arm skid plates
  • High-flow oil passages and bottom oil drain hole for simple fluid changes
  • Reinforced front track bar mount (ties into spring pad) for greater strength
  • UV protected triple-stage powder coat for corrosion resistance
  • 1/4"-thick CNC laser cut axle brackets for extreme strength
  • Integrated factory location upper control arm mount
  • Pre-installed upper control arm bushings
  • Proper pinion angle for lifted JK applications
  • 4-6" Lift features a raised pinion angle and raised track bar bracket (where applicable)
  • Pre-tapped hole on spring perch for bump stop extensions
  • Pre-drilled holes for limit straps and lower spring retainers
  • Retains all JK ESP, ABS, and speedometer sensor capability
  • 100% engineered, designed, and built in the USA w/ new components
  • 1-Year/Unlimited Mileage Warranty
Fitment
  • 2007-2009 Jeep Wrangler — Does NOT fit: Sport, Unlimited Sport
  • 2010 Jeep Wrangler
  • 2011-2017 Jeep Wrangler — Does NOT fit: Unlimited X, X
  • 2018 Jeep Wrangler — Does NOT fit: Sport S, Unlimited Sport S, Unlimited X, X

Additional fitment notes:

  • JK Wrangler (2-door)
  • JK Wrangler Unlimited (4-door)
Specifications
  • Product Notes: Axle Shaft Upgrade: - High-quality aftermarket axle shafts will enhance your set up. Stock Rubicon axle shafts may also be reused (where applicable). We offer U-Joint Front Axle Shafts as well as High-Angle Rzeppa CV Front Axle Shafts. CONTACT us for options! Axle Shaft Tube Seal Upgrade: - Get serious with HD 0.5" wall seals (# 4354050) or keep it real with standard 0.25" wall seals (# 4354025). Stock seals may also be reused.
  • Installation Time: 8 hours
  • Length: 60.5
  • Width: 20
  • Height: 23
  • Weight: 196.0 lbs
Warranty

Backed by TeraFlex limited warranty — Contact Recon Recovery for any warranty claims.

⚠ WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov
