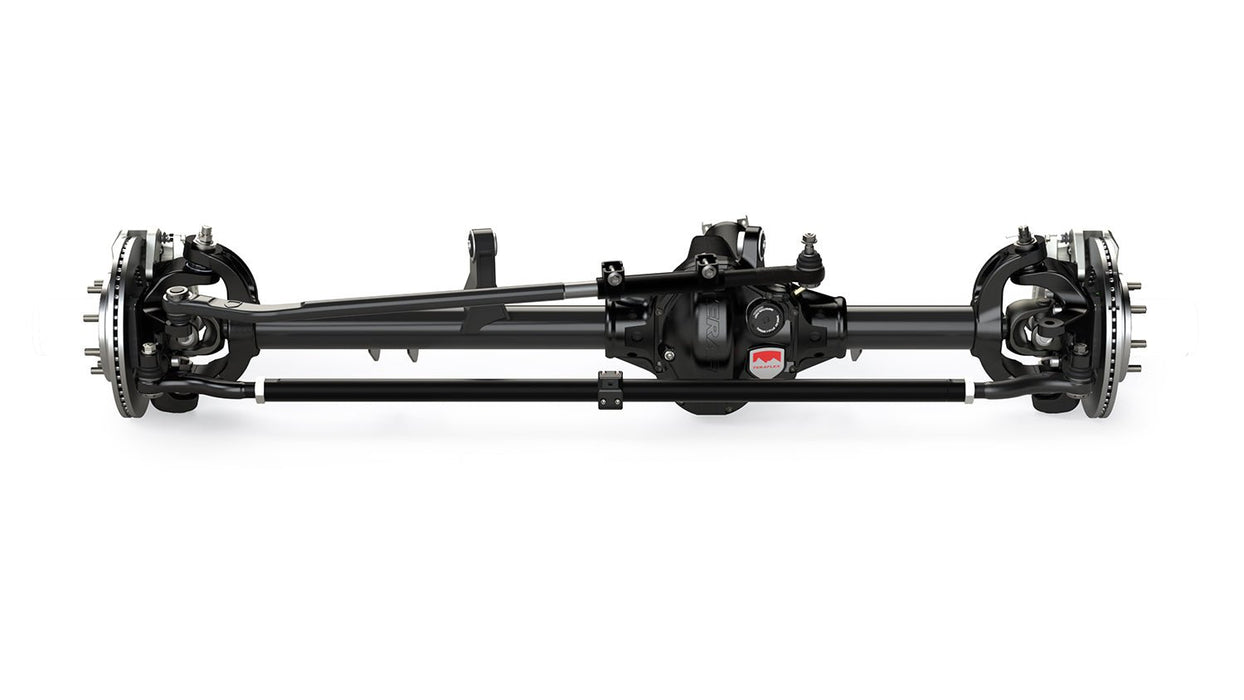

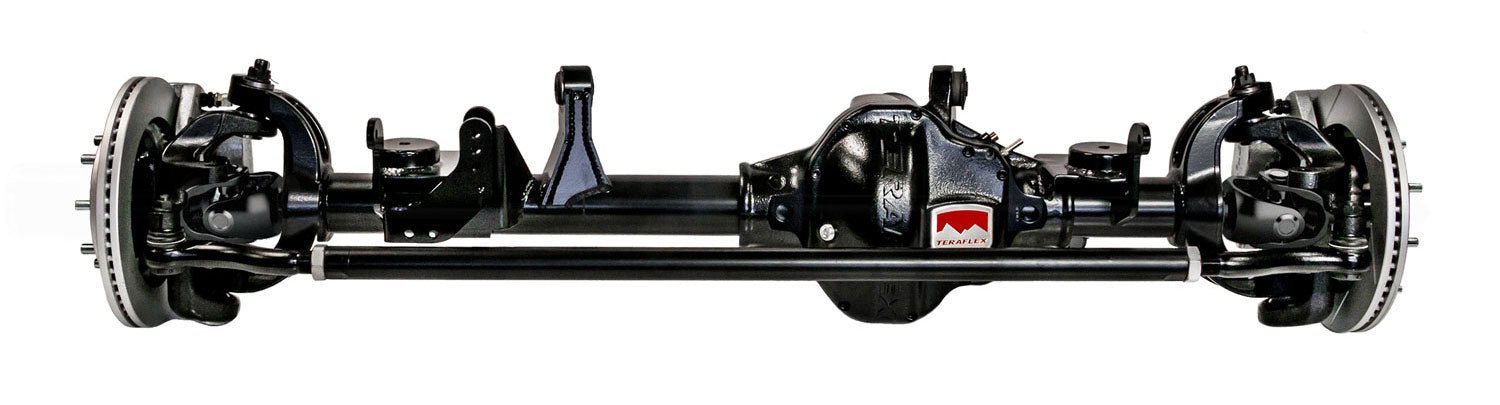

TeraFlex 63.5" Tera60 HD Front Axle W/ Unit Bearing & Super60 4.30 R&P & ARB (3-6" Lift) for 1997-2006 Jeep Wrangler - Recon Recovery

TeraFlex 63.5" Tera60 HD Front Axle W/ Unit Bearing & Super60 4.30 R&P & ARB (3-6" Lift) for 1997-2006 Jeep Wrangler

by TeraFlex
SKU 3816430
Availability:
In stock
$9,959.99 - $9,959.99
$9,959.99
$9,959.99 - $9,959.99
$9,959.99

The complete Tera60 HD Front Axle Assembly w/ Unit Bearing provides a choice of pre-installed Super 60 ring and pinon gears ARB air locker unit bearings and Spicer HD Ball Joints as well as inner and outer axle shafts knuckle assembly brakes and sensors. TeraFlex HD Front Axle Housings are perfect for replacing bent broken or damaged axles in TJ Wrangler/Unlimited vehicles including Rubicon models. Can also be used as a direct bolt-on upgrade for Jeep owners looking to beef up the stock axles- weak areas. Tera60 HD Front Axle Housings are the ultimate upgrade for TJ models requiring maximum suspension up travel and compression. Compatible with all Super 60 gear ratios for extreme duty applications requiring additional ring and pinion strength. Our heavy-duty axle housings feature smooth profile surfaces axle tubes all necessary mount brackets control arm bushings forged inner knuckles and more!

Features
  • Sealed unit bearing assembly for long-term maintenance-free dependability
  • 3.25" O.D. x 0.375" wall DOM axle tube for superior strength vs. weight
  • 63.5" WMS-WMS and 5x5.5" wheel bolt pattern
  • Includes Front Big Brake Kit w/ 13.3" Vented Rotors
  • Fixed spindle mount hub assembly
  • Tera60 specific high-pinion front axle housing design
  • Includes 1350 series pinion yoke
  • 35-spline inner and outer axle shafts
  • Outer pinion bearing pocket features a renewable oil reservoir that sends cool oil to the pinion bearing
  • Oversized outer pinion bearing handles increased torque and high-load conditions
  • High-capacity housing holds maximum amount of oil
  • Asymmetric housing design for extra-long tube side strength
  • Pre-installed inner axle seals
  • HD forged inner knuckles w/ greater upper and lower section strength
  • Ductile cast iron housing w/ increased rib gussets
  • HD ductile iron differential cover
  • Smooth radius bottom design to glide over rocks and obstacles
  • Integrated lower control arm skid plates
  • High-flow oil passages
  • Reinforced front track bar mount (ties into spring pad) for greater strength
  • UV protected triple-stage powder coat for corrosion resistance
  • 1/4"-thick CNC laser cut axle brackets for extreme strength
  • Integrating the front upper control arm mounts into the housing increases up travel an additional 2" compared to other aftermarket Dana 60 axles
  • Pre-installed upper control arm bushings
  • Proper pinion angle for lifted TJ applications
  • 3-6" Lift features a raised pinion angle and raised track bar bracket
  • Pre-tapped hole on spring perch for bump stop extensions
  • Pre-drilled holes for limit straps and lower spring retainers
  • Retains all TJ ESP, ABS, and speedometer sensor capability
  • 100% engineered, designed, and built in the USA w/ new components
  • 1-Year/Unlimited Mileage Warranty
Fitment
  • 1997-2006 Jeep Wrangler

Additional fitment notes:

  • TJ Wrangler (short wheelbase)
  • LJ Wrangler Unlimited (long wheelbase)
  • 3-6" Lift
Specifications
  • Product Notes: - REQUIRES driveshaft modifications. CONTACT us for suggestions!
  • Installation Time: 6 hours
  • Color: 12mm X 100
  • Size: 2XL
  • Length: 78
  • Width: 24
  • Height: 24
  • Weight: 629.0 lbs
Warranty

Backed by TeraFlex limited warranty — Contact Recon Recovery for any warranty claims.
