The new RAM HD trucks are more popular than ever and the ReadyLIFT 6" lift kit for 5th generation Ram 2500 HD trucks are extremely popular. What more could we do for RAM owners? How about engineering a 6" solution for the RAM 3500 HD trucks? That is exactly what ReadyLIFT has done by adding a new CNC-machined billet Aluminum transfer case clocking ring to improve the driveline angle?
Well, that's exactly what we did for this all-new Ram 3500 application. We designed an application-specific lift kit and included an innovative Driveline Indexing System (DIS) with a transfer case clocking ring, OEM output shaft seal, and adjustable transmission crossmember. Why go to all that trouble to achieve a 6" Ram 3500 lift? Some Ram HD trucks can experience a slight vibration after lifting due to driveline angle sensitivity.

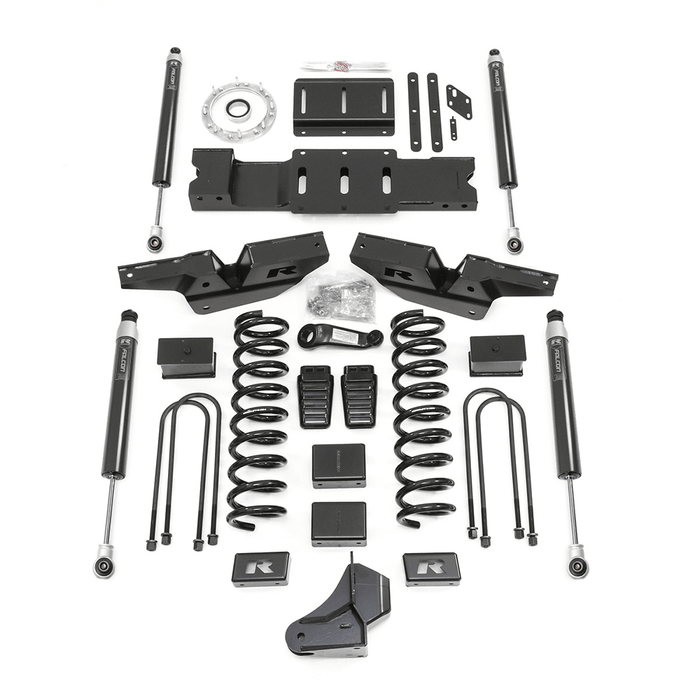

Our new 49-19631 6' lift kit addresses that inherent (albeit infrequent) driveline system phenomenon with the addition of our DIS a heavy-duty transfer case clocking [indexing] ring and new transmission crossmember-positioning the transmission and pinion position for a smooth driving experience on or off-road. Kit 49-19631 includes the new DIS re-positioning components, heavy-duty and great riding 6" lift front springs, 5" lift rear taper blocks, heavy-duty radius arm drop brackets, heavy-duty fabricated steel front, and rear track bar brackets, dropped cast iron pitman arm, front/rear sway bar relocation brackets, and bump stop extensions preventing over-compression of the new Falcon 1.1 Mototube front/rear shocks. *Kit will not fit any models with the standard output 6.7L diesel motor, HEMI Gasoline engine, dually models, Classic models, and any automatic-leveling rear air suspension models.
Features
- 2019-2024 Ram 3500 4WD HD 6" lift kit
- 6" front with 5" rear blocks lift kit
- Includes allnew transfer case clocking ring and new heavyduty transmission crossmember
- Includes 4 Falcon 1.1 Monotube shocks tuned specifically for the Ram 3500 HD
- For use on Diesel engine Ram 3500 4WD HD trucks only
- Allows for up to 37x13.50 tires on 20" x 9" wide wheels with 18 off-set
- Does not work with Factory Air suspension, Auto Level system (factory helper bags), HEMI Gasoline engine, dually models, Classic models
Fitment
Specifications
-
Fitment: Direct Fitment
-
Front or Rear: Front and Rear
-
Front Lift Height: 6 Inches
-
Front Lift Component: Coil Spring
-
Front Shocks: Falcon 1.1 Monotube
-
Rear Lift Height: 5 Inches
-
Rear Lift Component: Block
-
Rear Shocks: Falcon 1.1 Monotube
-
Max Tire Size: 37 Inch
-
Installation Time: 5+ Hours
-
Install Difficulty: Difficult Requires Professional Installation
-
Country of Origin: US
Warranty
READYLIFT® “NO HASSLE” PRODUCT WARRANTY
This unique “no hassle” product warranty proves their commitment to the quality of every product that ReadyLIFT produces. ReadyLIFT product warranty only extends to the Original Purchaser of any ReadyLIFT product. If it breaks, they'll give you a new part.
Any ReadyLIFT products containing missing or defective components will be covered under warranty by ReadyLIFT. Please contact Recon Recovery to initiate a warranty claim. In the event of a defective product, ReadyLIFT may request a return of the defective product (at ReadyLIFT expense) so the quality team can analyze the nature of the defect. Returning defective product will not delay the replacement part delivery.
ReadyLIFT leveling kit, block kits and lift kit products are NOT intended for off-road abuse. Any abuse or damage as a result of off-road use voids the warranty of the ReadyLIFT product. Exception: ReadyLIFT Jeep SST and Terrain Flex Lift Kits are designed for normal off-road use to complement the Jeep vehicle's off-road capability. All Jeep Lift Kit products are covered under warranty when used in recreational off-road environments.
Wearable components including, but not limited to, shocks, ball joints, heim joints, bushings, and steering extensions, are covered for up to 1-year. Labor, installation, surcharges or any other applicable fees from the original purchase are non-refundable. ReadyLIFT is not responsible for any consequential damage to vehicles.
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product.
