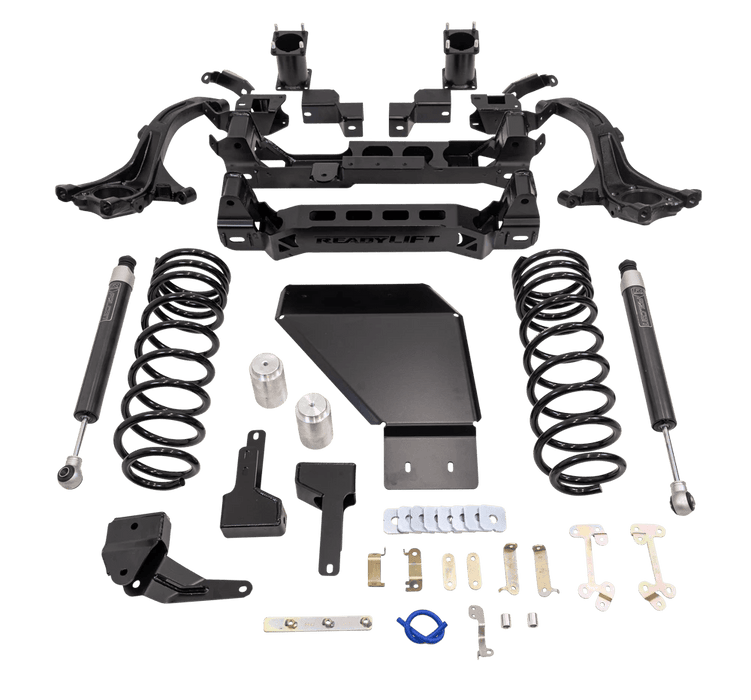

ReadyLIFT announces two new suspension solutions for the 2022-2026 Toyota Tundra with rear coil spring and factory air configurations: 6-inch lift kits. These kits, successful following the Tundra product line, feature Falcon 1.1 monotube shocks, designed for the 2022+ Toyota Tundra. The kits include strong, laser-cut, CNC bent, welded, boxed sub-frame drop assemblies for increased ground clearance and suspension geometry maintenance. The cast iron front knuckles, precision-designed, retain factory tie rods with minimal trimming.
The innovative differential drop system ensures easy installation and correct positioning to maintain CV axle and driveline angles. Kits 44-52620 (non-rear air) and 44-52660 (with rear air) prevent premature tire wear by maintaining alignment and geometry. The system includes bump stop extensions and sway bar frame mount brackets for factory geometry retention.
These features ensure superior driving and handling. The 6-inch Big Lift allows for 5.75" backspace (18-20mm Offset) on 20x9 with 35" tires and, with trimming, 5.5" backspace (10-13mm Offset) on 20x9 with 37" tires. It includes two Falcon 1.1 monotube rear shocks, retains the factory turning radius, and is compatible with stock 20-inch wheels. Not suitable for the 2022+ Tundra TRD Pro with Bilstein coilover shocks or the TRD rear sway bar option.
The kits work only with factory 20" wheels (not 18" wheels), but most aftermarket wheels fit (confirm before installation).
Features
- Allows for 5.75" backspace (1820mm Offset) on 20x9 with 35" tires
- Max tire with trimming 5.5" backspace (1013mm Offset) on 20x9 with 37" tires
- Includes two Falcon 1.1 monotube rear shocks
- Retains factory turning radius
- Allows for use of stock 20" wheels
- Works with auto adjust headlights
- Not compatible with 2022+ Tundra TRD Pro w/ Bilstein coilover shocks, TRD rear sway bar option, or trucks equipped with LoadLeveling Rear Height Control Air Suspension or Adaptive Variable Suspension (AVS)
Refer to the tire fitment guide along with the year make model data. Tire fitments shown are for Maximum size and based on a no rub or no modifications required fitment. ReadyLIFT & Recon Recovery is not responsible if the listed max sizes are exceeded. Due to differences in manufacturing, dimension and inflated measurements, tire and wheel combinations should be test fit prior to installation.
Fitment
- 2022-2026 Toyota Tundra — 4WD
- Lift: 6.0" F/4.0" R | Max Tire: 37" x 12.5" (325/60R20) | Wheel Width: 9" | Backspacing: 5.5" | Offset: +10
Specifications
-
Fitment: Direct Fitment
-
Front or Rear: Front and Rear
-
Front Lift Height: 6 Inches
-
Front Lift Component: Spacer
-
Rear Lift Height: 6 Inches
-
Rear Lift Component: Coil Spring
-
Rear Shocks: Falcon 1.1 Monotube
-
Max Tire Size: 35 Inch
-
Installation Time: 5+ Hours
-
Install Difficulty: Difficult Requires Professional Installation
-
Country of Origin: US
Notes
- (1) Does not work on air ride-equipped trucks.
Warranty
READYLIFT® “NO HASSLE” PRODUCT WARRANTY
This unique “no hassle” product warranty proves their commitment to the quality of every product that ReadyLIFT produces. ReadyLIFT product warranty only extends to the Original Purchaser of any ReadyLIFT product. If it breaks, they'll give you a new part.
Any ReadyLIFT products containing missing or defective components will be covered under warranty by ReadyLIFT. Please contact Recon Recovery to initiate a warranty claim. In the event of a defective product, ReadyLIFT may request a return of the defective product (at ReadyLIFT expense) so the quality team can analyze the nature of the defect. Returning defective product will not delay the replacement part delivery.
ReadyLIFT leveling kit, block kits and lift kit products are NOT intended for off-road abuse. Any abuse or damage as a result of off-road use voids the warranty of the ReadyLIFT product. Exception: ReadyLIFT Jeep SST and Terrain Flex Lift Kits are designed for normal off-road use to complement the Jeep vehicle's off-road capability. All Jeep Lift Kit products are covered under warranty when used in recreational off-road environments.
Wearable components including, but not limited to, shocks, ball joints, heim joints, bushings, and steering extensions, are covered for up to 1-year. Labor, installation, surcharges or any other applicable fees from the original purchase are non-refundable. ReadyLIFT is not responsible for any consequential damage to vehicles.
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product.
