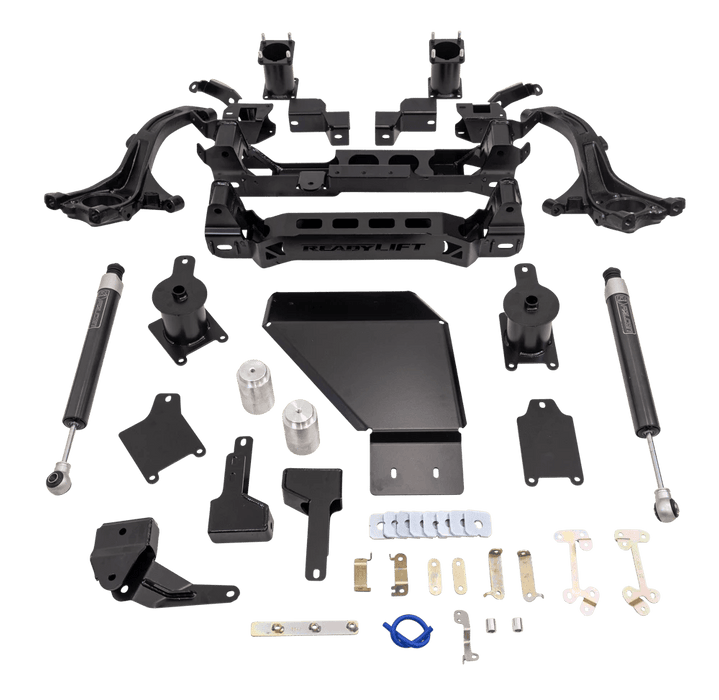

ReadyLIFT's success with leveling and SST lift kits for the 2022-2026Toyota Tundra has led to the introduction of two new suspension solutions: 6" lift kits designed for trucks with rear coil spring and factory air configuration. These kits, inspired by the success of Tundra products, include Falcon 1.1 monotube shocks tailored for 2022+ Toyota Tundra Trucks. These 6" lift kits boast robust features, such as ultra-strong laser cut, CNC bent, welded, and boxed sub-frame drop assemblies to preserve suspension geometry and enhance ground clearance. The kits also have precision-designed cast iron front knuckles, CNC-machined for fit while minimizing the need for trimming factory tie rods.

The innovative differential drop system, easy to install, maintains proper CV axle and driveline angles. With kit numbers 44-52620 (non-rear air) and 44-52660 (with rear air), tire wear is minimized due to maintained alignment and geometry. The kits include bump stop extensions and sway bar frame mount brackets for maintaining factory sway bar geometry.

These features create a superior driving and handling experience for the Toyota Tundra. The 6" Big Lift offers benefits like accommodating 5.75" backspace (18-20mm Offset) on 20x9 with 35" tires, and a max tire option with trimming at 5.5" backspace (10-13mm Offset) on 20x9 with 37" tires. It also includes two Falcon 1.1 monotube rear shocks, retains the factory turning radius, and allows the use of stock 20" wheels. Not suitable for 2022+ Tundra TRD Pro with Bilstein coilover shocks or the TRD rear sway bar option, and is only compatible with factory 20" wheels (not 18").

Most aftermarket wheels fit but should be confirmed before installation.

Features

• Allows for 5.75" backspace (1820mm Offset) on 20x9 wheels with 35" tires
• Maximum tire size with trimming is 5.5" backspace (1013mm Offset) on 20x9 wheels with 37" tires
• Includes two Falcon 1.1 monotube rear shocks
• Retains factory turning radius
• Compatible with stock 20" wheels
• Compatible with auto adjust headlights
• Not compatible with 2022+ Tundra TRD Pro with Bilstein coilover shocks, TRD rear sway bar option, or trucks equipped with LoadLeveling Rear Height Control Air Suspension or Adaptive Variable Suspension (AVS)

Refer to the tire fitment guide along with the year make model data. Tire fitments shown are for Maximum size and based on a no rub or no modifications required fitment. ReadyLIFT & Recon Recovery is not responsible if the listed max sizes are exceeded. Due to differences in manufacturing, dimension and inflated measurements, tire and wheel combinations should be test fit prior to installation.

Fitment

• 2022-2026 Toyota Tundra — 4WD
  • Lift: 6.0" F/4.0" R | Max Tire: 37" x 12.5" (325/60R20) | Wheel Width: 9" | Backspacing: 5.5" | Offset: +10

Specifications

• Fitment: Direct Fitment
• Front or Rear: Front and Rear
• Front Lift Height: 6 Inches
• Front Lift Component: Spacer
• Rear Lift Height: 6 Inches
• Rear Lift Component: Coil Spring
• Rear Shocks: Falcon 1.1 Monotube
• Max Tire Size: 35 Inch
• Installation Time: 5+ Hours
• Install Difficulty: Difficult Requires Professional Installation
• Country of Origin: US

Warranty

READYLIFT® “NO HASSLE” PRODUCT WARRANTY

This unique “no hassle” product warranty proves their commitment to the quality of every product that ReadyLIFT produces. ReadyLIFT product warranty only extends to the Original Purchaser of any ReadyLIFT product. If it breaks, they'll give you a new part.

Any ReadyLIFT products containing missing or defective components will be covered under warranty by ReadyLIFT. Please contact Recon Recovery to initiate a warranty claim. In the event of a defective product, ReadyLIFT may request a return of the defective product (at ReadyLIFT expense) so the quality team can analyze the nature of the defect. Returning defective product will not delay the replacement part delivery.

ReadyLIFT leveling kit, block kits and lift kit products are NOT intended for off-road abuse. Any abuse or damage as a result of off-road use voids the warranty of the ReadyLIFT product. Exception: ReadyLIFT Jeep SST and Terrain Flex Lift Kits are designed for normal off-road use to complement the Jeep vehicle's off-road capability. All Jeep Lift Kit products are covered under warranty when used in recreational off-road environments.

Wearable components including, but not limited to, shocks, ball joints, heim joints, bushings, and steering extensions, are covered for up to 1-year. Labor, installation, surcharges or any other applicable fees from the original purchase are non-refundable. ReadyLIFT is not responsible for any consequential damage to vehicles.
