ReadyLIFT 6" Lift Kit with Bilstein Shocks with Ring and Crossmember for 2019-2024 Ram 2500 - Recon Recovery

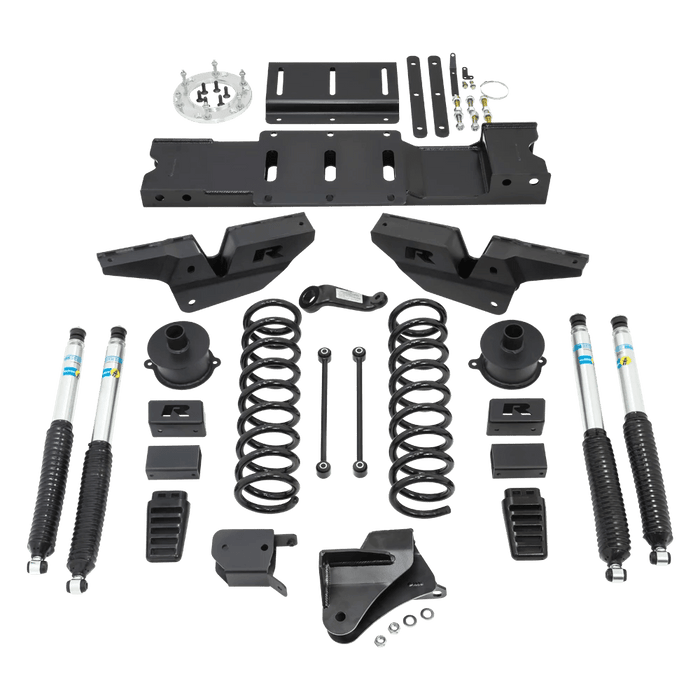

ReadyLIFT 6" Lift Kit with Bilstein Shocks with Ring and Crossmember for 2019-2024 Ram 2500

by ReadyLIFT
SKU 49-1961
Availability:
In stock
$2,499.95 - $2,499.95
$2,499.95
$2,499.95 - $2,499.95
$2,499.95

Does this part fit my vehicle?

Verify

The new Ram HD trucks are more popular than ever and our ReadyLIFT 6" lift kit we introduced two years ago has been an extremely popular lift option. How can we take an already great 2019-2024 Ram HD 6" lift kit and make it better? How about adding a new CNC-machined billet Aluminum transfer case clocking ring to reposition the transfer case pinion angle? Some Ram HD trucks can experience a slight vibration after lifting due to driveline angle sensitivity.

Our new 49-1961 6" lift kit addresses that inherent driveline system issue with the addition of a heavy-duty transfer case clocking [indexing] ring and new transmission crossmember. This Driveline Indexing System (DIS) combination works great with our ReadyLIFT 6" lift kit while re-positioning the transmission and pinion position for a smooth driving experience on or off road. Kit 49-1961 includes everything in our popular 49-1960 6" lift kit as well as these new DIS re-positioning components. Heavy duty and great riding 6" lift front springs, 3.5" lift rear coil spring spacers, heavy-duty radius arm drop brackets, heavy-duty fabricated steel front and rear track bar brackets, dropped cast iron pitman arm, front/rear sway bar relocation brackets and bump stop extensions preventing over- compression of the new Bilstein 5100 series front/rear shocks are all included in this premium kit.

For use on diesel 2500 trucks only.

Features
  • 2019-2024 Ram 2500 4WD HD 6" lift kit
  • 6inch front/3.5inch rear lift
  • Includes all new transfer case clocking ring
  • New heavy-duty transmission crossmember
  • 4 Bilstein 5100 series shocks tuned specifically for Ram 2500 HD
  • For use on Diesel engine Ram 2500 4WD HD trucks only
  • Allows for up to 37x13.50 tires on 9.5" wide wheels with 18 off-set
  • Does not work with Factory Air suspension or Auto Level system (factory helper bags)

Refer to the tire fitment guide along with the year make model data. Tire fitments shown are for Maximum size and based on a no rub or no modifications required fitment. ReadyLIFT & Recon Recovery is not responsible if the listed max sizes are exceeded. Due to differences in manufacturing, dimension and inflated measurements, tire and wheel combinations should be test fit prior to installation.

Fitment
  • 2019-2024 Ram 2500 — 4WD
    • 2019-2024 DODGE RAM 2500: Lift: 6.0" | Max Tire: 37" x 13.5" | Wheel Width: 9.5" | Backspacing: 5" | Offset: -18

Note: Single Cab configuration has not been validated for fitment & drivability by ReadyLIFT

Specifications
  • Fitment: Direct Fitment
  • Front or Rear: Front and Rear
  • Front Lift Height: 6 Inches
  • Front Lift Component: Coil Spring
  • Front Shocks: Bilstein 5100
  • Rear Lift Height: 3.5 Inches
  • Rear Lift Component: Coil Spring Spacer
  • Rear Shocks: Bilstein 5100
  • Max Tire Size: 37 Inch
  • Installation Time: 5+ Hours
  • Install Difficulty: Difficult Requires Professional Installation
  • Country of Origin: US
Warranty

READYLIFT® “NO HASSLE” PRODUCT WARRANTY

This unique “no hassle” product warranty proves their commitment to the quality of every product that ReadyLIFT produces. ReadyLIFT product warranty only extends to the Original Purchaser of any ReadyLIFT product. If it breaks, they'll give you a new part.

Any ReadyLIFT products containing missing or defective components will be covered under warranty by ReadyLIFT. Please contact Recon Recovery to initiate a warranty claim. In the event of a defective product, ReadyLIFT may request a return of the defective product (at ReadyLIFT expense) so the quality team can analyze the nature of the defect. Returning defective product will not delay the replacement part delivery.

ReadyLIFT leveling kit, block kits and lift kit products are NOT intended for off-road abuse. Any abuse or damage as a result of off-road use voids the warranty of the ReadyLIFT product. Exception: ReadyLIFT Jeep SST and Terrain Flex Lift Kits are designed for normal off-road use to complement the Jeep vehicle's off-road capability. All Jeep Lift Kit products are covered under warranty when used in recreational off-road environments.

Wearable components including, but not limited to, shocks, ball joints, heim joints, bushings, and steering extensions, are covered for up to 1-year. Labor, installation, surcharges or any other applicable fees from the original purchase are non-refundable. ReadyLIFT is not responsible for any consequential damage to vehicles.

WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product.

Leveling Kits

Leveling Kits

Level out your truck or SUV with ReadyLift leveling kits. Engineered to eliminate factory rake, these premium-grade kits raise the front end to match the rear — giving you a balanced stance and room for larger tires. Available for most years, makes, and models.

SST Lift Kits

SST Lift Kits

The original mid-lift solution for trucks, Jeeps, and SUVs. ReadyLift SST Lift Kits are built for drivers who want more than a leveling kit but aren't ready for a full big lift — delivering added height and tire clearance with factory-quality ride and handling.

Big Lift Kits

Big Lift Kits

Run larger tires and give your vehicle an aggressive look with ReadyLift Big Lift Kits. Engineered for maximum height without sacrificing factory ride quality, these complete systems deliver serious clearance while keeping handling and steering geometry in check.

SHOP ALL Readylift Products

SHOP ALL Readylift Products

ReadyLift builds premium leveling, mid-lift, and big lift kits for trucks, Jeeps, and SUVs — engineered to add height and tire clearance without giving up factory ride quality.

SHOP REadylift ITEMS NOW
Description

The new Ram HD trucks are more popular than ever and our ReadyLIFT 6" lift kit we introduced two years ago has been an extremely popular lift option. How can we take an already great 2019-2024 Ram HD 6" lift kit and make it better? How about adding a new CNC-machined billet Aluminum transfer case clocking ring to reposition the transfer case pinion angle? Some Ram HD trucks can experience a slight vibration after lifting due to driveline angle sensitivity.

Our new 49-1961 6" lift kit addresses that inherent driveline system issue with the addition of a heavy-duty transfer case clocking [indexing] ring and new transmission crossmember. This Driveline Indexing System (DIS) combination works great with our ReadyLIFT 6" lift kit while re-positioning the transmission and pinion position for a smooth driving experience on or off road. Kit 49-1961 includes everything in our popular 49-1960 6" lift kit as well as these new DIS re-positioning components. Heavy duty and great riding 6" lift front springs, 3.5" lift rear coil spring spacers, heavy-duty radius arm drop brackets, heavy-duty fabricated steel front and rear track bar brackets, dropped cast iron pitman arm, front/rear sway bar relocation brackets and bump stop extensions preventing over- compression of the new Bilstein 5100 series front/rear shocks are all included in this premium kit.

For use on diesel 2500 trucks only.

Features
  • 2019-2024 Ram 2500 4WD HD 6" lift kit
  • 6inch front/3.5inch rear lift
  • Includes all new transfer case clocking ring
  • New heavy-duty transmission crossmember
  • 4 Bilstein 5100 series shocks tuned specifically for Ram 2500 HD
  • For use on Diesel engine Ram 2500 4WD HD trucks only
  • Allows for up to 37x13.50 tires on 9.5" wide wheels with 18 off-set
  • Does not work with Factory Air suspension or Auto Level system (factory helper bags)

Refer to the tire fitment guide along with the year make model data. Tire fitments shown are for Maximum size and based on a no rub or no modifications required fitment. ReadyLIFT & Recon Recovery is not responsible if the listed max sizes are exceeded. Due to differences in manufacturing, dimension and inflated measurements, tire and wheel combinations should be test fit prior to installation.

Fitment
  • 2019-2024 Ram 2500 — 4WD
    • 2019-2024 DODGE RAM 2500: Lift: 6.0" | Max Tire: 37" x 13.5" | Wheel Width: 9.5" | Backspacing: 5" | Offset: -18

Note: Single Cab configuration has not been validated for fitment & drivability by ReadyLIFT

Specifications
  • Fitment: Direct Fitment
  • Front or Rear: Front and Rear
  • Front Lift Height: 6 Inches
  • Front Lift Component: Coil Spring
  • Front Shocks: Bilstein 5100
  • Rear Lift Height: 3.5 Inches
  • Rear Lift Component: Coil Spring Spacer
  • Rear Shocks: Bilstein 5100
  • Max Tire Size: 37 Inch
  • Installation Time: 5+ Hours
  • Install Difficulty: Difficult Requires Professional Installation
  • Country of Origin: US
Warranty

READYLIFT® “NO HASSLE” PRODUCT WARRANTY

This unique “no hassle” product warranty proves their commitment to the quality of every product that ReadyLIFT produces. ReadyLIFT product warranty only extends to the Original Purchaser of any ReadyLIFT product. If it breaks, they'll give you a new part.

Any ReadyLIFT products containing missing or defective components will be covered under warranty by ReadyLIFT. Please contact Recon Recovery to initiate a warranty claim. In the event of a defective product, ReadyLIFT may request a return of the defective product (at ReadyLIFT expense) so the quality team can analyze the nature of the defect. Returning defective product will not delay the replacement part delivery.

ReadyLIFT leveling kit, block kits and lift kit products are NOT intended for off-road abuse. Any abuse or damage as a result of off-road use voids the warranty of the ReadyLIFT product. Exception: ReadyLIFT Jeep SST and Terrain Flex Lift Kits are designed for normal off-road use to complement the Jeep vehicle's off-road capability. All Jeep Lift Kit products are covered under warranty when used in recreational off-road environments.

Wearable components including, but not limited to, shocks, ball joints, heim joints, bushings, and steering extensions, are covered for up to 1-year. Labor, installation, surcharges or any other applicable fees from the original purchase are non-refundable. ReadyLIFT is not responsible for any consequential damage to vehicles.

WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product.
