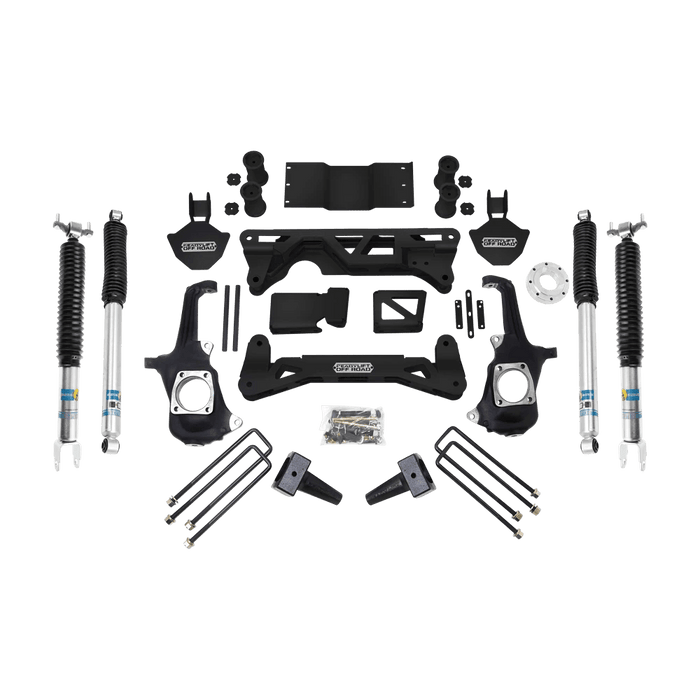

The ReadyLIFT 5" to 6" Adjustable Lift Kit Systems are designed for 2011-2019 Chevy Silverado / GMC Sierra 2500HD/3500HD 2WD/4WD trucks. This comprehensive kit includes four Bilstein Performance Shocks specifically tailored for this application. It offers a premium 5"-6" adjustable height front Lift Kit that ensures both quality lift and robust off-road capabilities while maintaining the factory ride quality on the street. The kit comprises precision-designed laser-cut and CNC formed sub-frame assemblies that easily bolt in.

It also features custom-formed nodular iron knuckles engineered for perfect geometry, ride comfort, and handling performance. For 4WD applications, an integrated differential drop bracket system is included to ensure correct CV axle angles and optimal performance. Front lift is achieved using ReadyLIFT Forged Torsion keys, allowing for adjustable lift from 5" to 6" without sacrificing the factory ride. In the rear, OEM quality cast iron rear blocks are used to maintain ride quality.

The kit comes complete with tough steel bump stop extensions, a skid plate, and sway bar end links.

Please note that this system is compatible with stock 20" wheels or 9" wheels with 4.75" - 5.5" backspacing, but it cannot be used with stock 17" or 18" wheels.

Additionally, SRW (Single Rear Wheel) models may require custom U-Bolts to accommodate the factory tow package, and it will not fit DRW (Dual Rear Wheel) applications without custom U-bolts. Installing this kit may reduce towing capacity. It's important to note that this kit is primarily designed for use in 2WD mode at speed on public roads, and 4WD should only be used off-road or in adverse slow-speed conditions due to driveline vibrations at high speeds. In some cases, a double cardan driveshaft may be required to help eliminate high-speed 4WD front driveline vibrations when the lift kits are 5-8" high.

Features

• Adjustable lift height of 5"6
• Specifically designed for 2011-2019 GM 2500HD/3500HD 4WD vehicles
• Complete front and rear off-road suspension system
• Includes (4) Bilstein 5100 Series Shocks
• Can accommodate up to 35" tall tires
• Utilizes OEM factory torsion keys
• Made in the USA
• Compatible with most tow packages (see details for specific notes)


Refer to the tire fitment guide along with the year make model data. Tire fitments shown are for Maximum size and based on a no rub or no modifications required fitment. ReadyLIFT & Recon Recovery is not responsible if the listed max sizes are exceeded. Due to differences in manufacturing, dimension and inflated measurements, tire and wheel combinations should be test fit prior to installation.

Fitment

• 2011-2019 Chevrolet Silverado 2500 HD — 2WD/4WD
  • Lift: 5"-6" ADJ. | Max Tire: 35" x 12.5" (325/60R20) | Wheel Width: 9" | Backspacing: 4.75" | Offset: -6
• 2011-2019 GMC Sierra 2500 HD — 2WD/4WD
• 2011-2019 Chevrolet Silverado 3500 HD — 2WD/4WD
  • Lift: 5"-6" ADJ. | Max Tire: 35" x 12.5" (325/60R20) | Wheel Width: 9" | Backspacing: 4.75" | Offset: -6
• 2011-2019 GMC Sierra 3500 HD — 2WD/4WD

Note: Single Cab configuration has not been validated for fitment and drivability by ReadyLIFT.

Specifications

• Fitment: Direct Fitment
• Front or Rear: Front and Rear
• Front Lift Height: 6 Inches
• Front Lift Component: Torsion Key
• Front Shocks: Bilstein 5100
• Rear Lift Height: 6 Inches
• Rear Lift Component: Block
• Rear Shocks: Bilstein 5100
• Max Tire Size: 35 Inch
• Installation Time: 5+ Hours
• Install Difficulty: Difficult Requires Professional Installation
• Country of Origin: US

Warranty

READYLIFT® “NO HASSLE” PRODUCT WARRANTY

This unique “no hassle” product warranty proves their commitment to the quality of every product that ReadyLIFT produces. ReadyLIFT product warranty only extends to the Original Purchaser of any ReadyLIFT product. If it breaks, they'll give you a new part.

Any ReadyLIFT products containing missing or defective components will be covered under warranty by ReadyLIFT. Please contact Recon Recovery to initiate a warranty claim. In the event of a defective product, ReadyLIFT may request a return of the defective product (at ReadyLIFT expense) so the quality team can analyze the nature of the defect. Returning defective product will not delay the replacement part delivery.

ReadyLIFT leveling kit, block kits and lift kit products are NOT intended for off-road abuse. Any abuse or damage as a result of off-road use voids the warranty of the ReadyLIFT product. Exception: ReadyLIFT Jeep SST and Terrain Flex Lift Kits are designed for normal off-road use to complement the Jeep vehicle's off-road capability. All Jeep Lift Kit products are covered under warranty when used in recreational off-road environments.

Wearable components including, but not limited to, shocks, ball joints, heim joints, bushings, and steering extensions, are covered for up to 1-year. Labor, installation, surcharges or any other applicable fees from the original purchase are non-refundable. ReadyLIFT is not responsible for any consequential damage to vehicles.

WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product.
