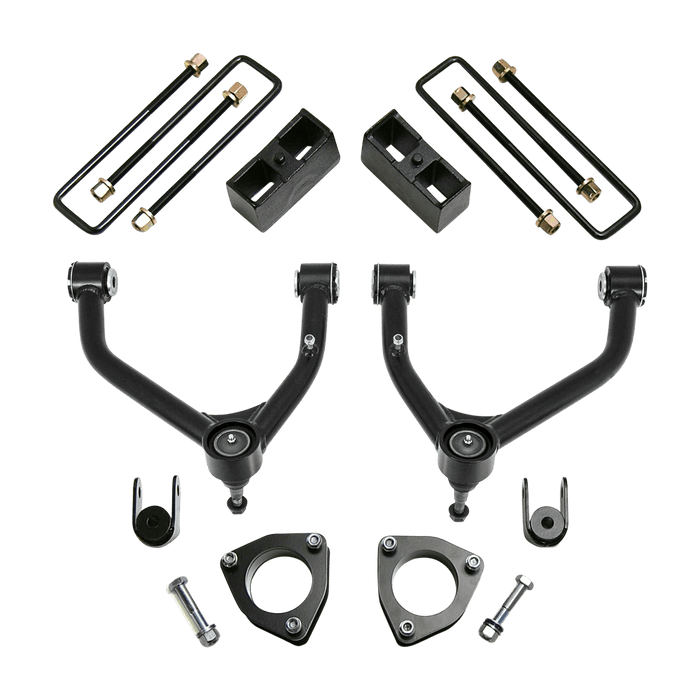

Introducing the ReadyLIFT SST Lift Kit system for 2007-2016 1500-series Silverado/Sierra 6-lug 2WD Trucks, now with ultra-strong TCT free-floating pivot bushings for friction-free operation. This innovative 4.0" lift kit is entirely bolt-on, a result of over six months of rigorous product development and testing. It offers increased ground clearance, accommodating tire sizes up to 33" on aftermarket wheels, such as 33x11.50 on 22x9.5 wheels with 5.5" backspacing or 17x9 wheels with +0 offset on a 285/70R17. The system raises the front of your Silverado/Sierra 1500 2WD trucks by 4.0" using robust powder-coated steel strut extensions, which don't require any irreversible modifications to the factory strut.

Additionally, it includes 100% DOM tubular upper control arms with OEM-style ball joints, providing clearance and maintaining OEM geometry without spindle modifications. To lift the rear, the kit incorporates 3.0" OEM-style cast iron rear lift blocks and U-bolts, featuring pinion angle correction and axle locating ears for a perfect fit and performance. The rear shock extensions maintain the factory mounting position for a great ride with your existing shocks. This system is backed by a Limited Lifetime Warranty from ReadyLIFT.

Please note that the kit is designed for use with aftermarket wheels with a backspacing of 5.25". If you plan to use stock wheels with larger aftermarket tires, you'll need a wheel spacer to prevent tire contact with the control arm at full locked turn. ReadyLIFT offers a CNC-machined billet aluminum wheel spacer (10-3485) for factory wheels with stud pockets. Ensure compatibility with your vehicle, as some 2016 models with stamped steel Control Arms or Aluminum upper Control Arms are not suitable for this lift kit.

Finally, this kit is not intended for off-roading purposes.

Features

• Max lift of 4.0
• Front lift of 1.75" and rear lift of 1.75
• Maximum tire size of 33
• Compatible with 2007-2013 2WD models and 2014-2016 2WD models with forged steel OE upper control arm
• Solid mount for even load distribution
• Includes pressin 10.9 grade hardware
• OEM style cast blocks for durability
• Will not deform or change shape
• No cutting or welding required for installation
• Maintains factory ride quality
• All necessary components included in the package
• New and improved UCA assembly with heavy duty ball joints
• Note: Single Cab configuration has not been

Refer to the tire fitment guide along with the year make model data. Tire fitments shown are for Maximum size and based on a no rub or no modifications required fitment. ReadyLIFT & Recon Recovery is not responsible if the listed max sizes are exceeded. Due to differences in manufacturing, dimension and inflated measurements, tire and wheel combinations should be test fit prior to installation.

Fitment

• 2007-2016 Chevrolet Silverado 1500 — 2WD
  • Lift: 4.0" F-1.75" R | Max Tire: 33" x 11.5" (285/60R20) | Wheel Width: 9" | Backspacing: 5.25" | Offset: +6
• 2007-2016 GMC Sierra 1500 — 2WD with Forged Steel OE Upper Control Arms

Specifications

• Fitment: Direct Fitment
• Front or Rear: Front and Rear
• Front Lift Height: 4 Inches
• Front Lift Component: Spacer
• Rear Lift Height: 1.75 Inches
• Rear Lift Component: Block and U-bolt
• Max Tire Size: 33 Inch
• Installation Time: 5+ Hours
• Install Difficulty: Difficult Requires Professional Installation
• Country of Origin: US

Notes

• (1) NOTE: NOT FOR USE WITH 2016 AND UP GM WITH STAMPED STEEL CONTROL ARM.
• (2) Auto Ride Systems and Auto Leveling Systems (Air Bags) will require modifications, please call for information.
• (2) Auto Ride Systems and Auto Leveling Systems (Air Bags) will require modifications, please call for information.
• (3) If you intend to run the stock wheels with stock or oversized tires part number 15-3485 wheel spacer is required to prevent the tire from rubbing on the control arm. Any contact between the tire and UCA will void the warranty. ReadyLIFT has also developed a billet aluminum wheel adapter 10-3485 for use with factory wheels which have the stud pockets cast into the wheel next to the lug holes on the back side of the wheel to allow for aftermarket tires.

Warranty

READYLIFT® “NO HASSLE” PRODUCT WARRANTY

This unique “no hassle” product warranty proves their commitment to the quality of every product that ReadyLIFT produces. ReadyLIFT product warranty only extends to the Original Purchaser of any ReadyLIFT product. If it breaks, they'll give you a new part.

Any ReadyLIFT products containing missing or defective components will be covered under warranty by ReadyLIFT. Please contact Recon Recovery to initiate a warranty claim. In the event of a defective product, ReadyLIFT may request a return of the defective product (at ReadyLIFT expense) so the quality team can analyze the nature of the defect. Returning defective product will not delay the replacement part delivery.

ReadyLIFT leveling kit, block kits and lift kit products are NOT intended for off-road abuse. Any abuse or damage as a result of off-road use voids the warranty of the ReadyLIFT product. Exception: ReadyLIFT Jeep SST and Terrain Flex Lift Kits are designed for normal off-road use to complement the Jeep vehicle's off-road capability. All Jeep Lift Kit products are covered under warranty when used in recreational off-road environments.

Wearable components including, but not limited to, shocks, ball joints, heim joints, bushings, and steering extensions, are covered for up to 1-year. Labor, installation, surcharges or any other applicable fees from the original purchase are non-refundable. ReadyLIFT is not responsible for any consequential damage to vehicles.
