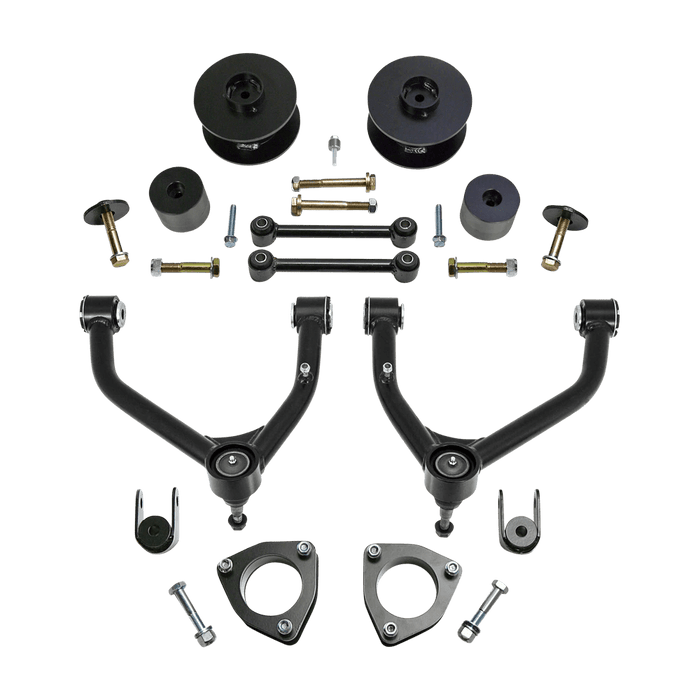

Introducing the ReadyLIFT 69-3495 4.0" SST Lift Kit, a revolutionary system designed for 2007-2014 1500-series GM 6-lug 4WD SUV/SUTs. This kit boasts ultra-strong TCT free-floating pivot bushings, ensuring self-lubrication and eliminating friction. This system significantly boosts ground clearance and accommodates up to 33" tires on aftermarket wheels (commonly 33x12.50 max). Minimal inner fenderwell trimming may be required for 33x12.50 tires, but 22x9.5 with 5.5" backspacing or 17x9 +0 offset on a 285/70R17 require no modifications.

The ReadyLIFT 4.0" SST Lift Kit raises your GM 1500 4WD SUV's front by 4.0", thanks to rugged powder-coated steel strut extensions that attach directly to the factory strut without any modifications. It features a DOM tubular Upper Control Arm with OEM-style ball joints, eliminating the need for spindle alterations. The CNC-machined 6061-T6 billet Aluminum differential drop brackets offer easy front suspension lift without compromising driveline integrity.

These brackets are paired with a powder-coated plate steel skid plate for differential protection. To lift the rear, this kit includes 3.0" powder-coated steel coil spring spacers that maintain the factory ride. Long and sturdy rear sway bar end links and bump stop extensions ensure proper rear suspension function. Steel rear shock extensions maintain the factory mounting position for the rear shocks, offering great ride quality.

The ReadyLIFT 69-3495 4.0" SST Lift Kit is designed to enhance your vehicle's ride and handling while providing the desired height. It comes with a Limited Lifetime Warranty and ReadyGuard PowerTrain Warranty.

Please note that this kit is for use with aftermarket wheels and may require a wheel spacer for stock wheels to prevent interference with the control arm during full locked turns.

Additionally, installation may cause rear axle shift, necessitating an adjustable rear track bar or drop bracket. Not compatible with rear airbag suspension or AWD models.

Features

• Features solid mount and even load distribution
• Includes pressin 10.9 grade hardware
• OEM style cast blocks for durability
• Will not deform or change shape over time
• No cutting of OEM parts or welding required
• Maintains factory ride quality
• New and improved UCA assembly
• Designed for GM SUV 1500 models
• Maximum lift of 4.0" in the front and 3.0" in the rear
• Can accommodate tires up to 33" in diameter
• Compatible with factory steel knuckle suspension
• Specifically fits Chevy Suburban, Tahoe, and GMC Yukon
• Not compatible with rear air equipped models
• Not compatible with AWD models

Fitment

• 2007-2014 Cadillac Escalade (Non-AWD, EXT, ESV) — 4WD
  • 2007-2014 CHEV/GMC ALL GM SUV/SUT'S: Lift: 4.0" F-3.0" R | Max Tire: 33" x 11.5" (295/60R20) | Wheel Width: 9" | Backspacing: 5" | Offset: 0
• 2007-2013 Chevrolet Avalanche — 4WD
• 2007-2014 Chevrolet Tahoe (XL) — 4WD
• 2007-2014 Chevrolet Suburban (XL) — 4WD
• 2007-2014 GMC Yukon (XL) — 4WD

Refer to the tire fitment guide along with the year make model data. Tire fitments shown are for Maximum size and based on a no rub or no modifications required fitment. ReadyLIFT & Recon Recovery is not responsible if the listed max sizes are exceeded. Due to differences in manufacturing, dimension and inflated measurements, tire and wheel combinations should be test fit prior to installation.

Specifications

• Fitment: Direct Fitment
• Front or Rear: Front and Rear
• Front Lift Height: 4 Inches
• Front Lift Component: Spacer
• Rear Lift Height: 3 Inches
• Rear Lift Component: Coil Spring Spacer
• Max Tire Size: 33 Inch
• Installation Time: 5+ Hours
• Install Difficulty: Difficult Requires Professional Installation
• Country of Origin: US

Notes

• (1) NOTE: NOT FOR USE WITH 2016 AND UP GM WITH STAMPED STEEL CONTROL ARM.
• (2) Auto Ride Systems and Auto Leveling Systems (Air Bags) will require modifications, please call for information.
• (3) If you intend to run the stock wheels with stock or oversized tires part number 15-3485 wheel spacer is required to prevent the tire from rubbing on the control arm. Any contact between the tire and UCA will void the warranty. ReadyLIFT has also developed a billet aluminum wheel adapter 10-3485 for use with factory wheels which have the stud pockets cast into the wheel next to the lug holes on the back side of the wheel to allow for aftermarket tires.

Warranty

READYLIFT® “NO HASSLE” PRODUCT WARRANTY

This unique “no hassle” product warranty proves their commitment to the quality of every product that ReadyLIFT produces. ReadyLIFT product warranty only extends to the Original Purchaser of any ReadyLIFT product. If it breaks, they'll give you a new part.

Any ReadyLIFT products containing missing or defective components will be covered under warranty by ReadyLIFT. Please contact Recon Recovery to initiate a warranty claim. In the event of a defective product, ReadyLIFT may request a return of the defective product (at ReadyLIFT expense) so the quality team can analyze the nature of the defect. Returning defective product will not delay the replacement part delivery.

ReadyLIFT leveling kit, block kits and lift kit products are NOT intended for off-road abuse. Any abuse or damage as a result of off-road use voids the warranty of the ReadyLIFT product. Exception: ReadyLIFT Jeep SST and Terrain Flex Lift Kits are designed for normal off-road use to complement the Jeep vehicle's off-road capability. All Jeep Lift Kit products are covered under warranty when used in recreational off-road environments.

Wearable components including, but not limited to, shocks, ball joints, heim joints, bushings, and steering extensions, are covered for up to 1-year. Labor, installation, surcharges or any other applicable fees from the original purchase are non-refundable. ReadyLIFT is not responsible for any consequential damage to vehicles.

WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product.
