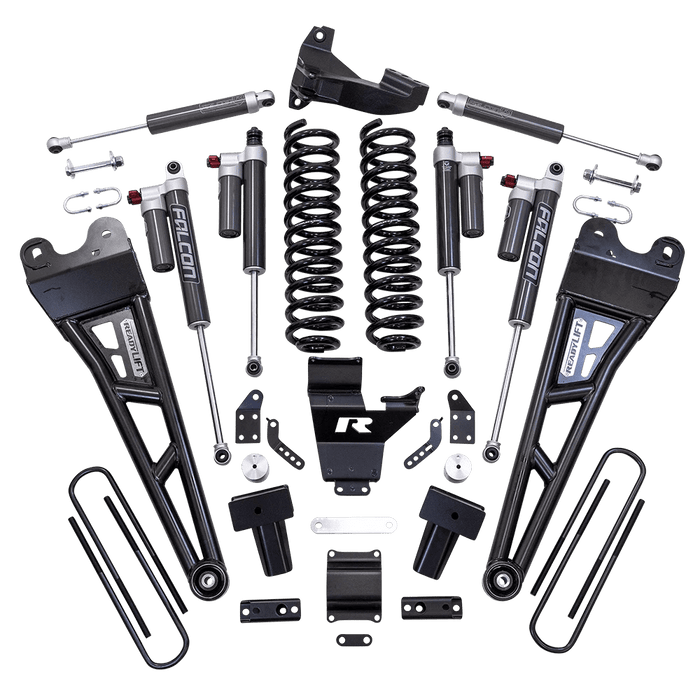

ReadyLIFT Suspension is pleased to announce a new Super Duty lift kit. We are now offering our first 4" Coil Spring Kit including Tubular Radius Arms, Falcon Dual Steering Stabilizer and the new Falcon 3.3 piggyback shocks. This gives Super Duty owners an excellent alternative for lifting their trucks to fit larger tires. The coil spring system allows for increased tire sizes and widths along with providing improved ground clearance on a head-turning stance!

This optimum lift height allows for up to 37" tall tires. The coil spring kit delivers a great ride and handling performance! The key ingredients to improving Super Duty ride and handling are the new, specially engineered coil springs teamed with Falcon 3.3 shocks and a track bar relocation bracket! Features & Benefits: 4" Coil Spring Lift Kit with Vehicle-specific performance-tuned Falcon Shocks.

Tubular Radius Arms help to correct the caster angle in Falcon Dual Steering Stabilizer Bolt-on lift kit - no structural modifications required. Allows for up to 37" tall tires on 9" wide wheels with +18 offset. Diesel trucks with rear single-wheel only. Falcon 3.3 monotube dampers on all four corners. 3.3 Fast Adjust Dampers offer a wide range of adjustability for specific terrain and/or handling characteristics with two separate knobs to tune to your preference. 3-Position Fast Adjust Knob for Soft, Custom, and Firm Compression.

Soft mode allows a partial bypass of the main piston for a softer ride 8-Position Micro Adjust Dial offers refined damping adjustments Reservoir design increases nitrogen to oil ratio for consistent damping over wide temperature ranges.

Features

• 4" Coil Spring Lift Kit with Vehicle-specific performance-tuned Falcon Shocks.
• Tubular Radius Arms help to correct the caster angle in
• Falcon Dual Steering Stabilizer
• Bolt-on lift kit - no structural modifications required.
• Allows for up to 37" tall tires on 9" wide wheels with +18 off-set.
• Diesel trucks with rear single-wheel only.
• Falcon 3.3 monotube dampers on all four corners.
• 3.3 Fast Adjust Dampers off-er a wide range of adjustability for specific terrain and/or handling characteristics with two separate knobs to tune to your preference.

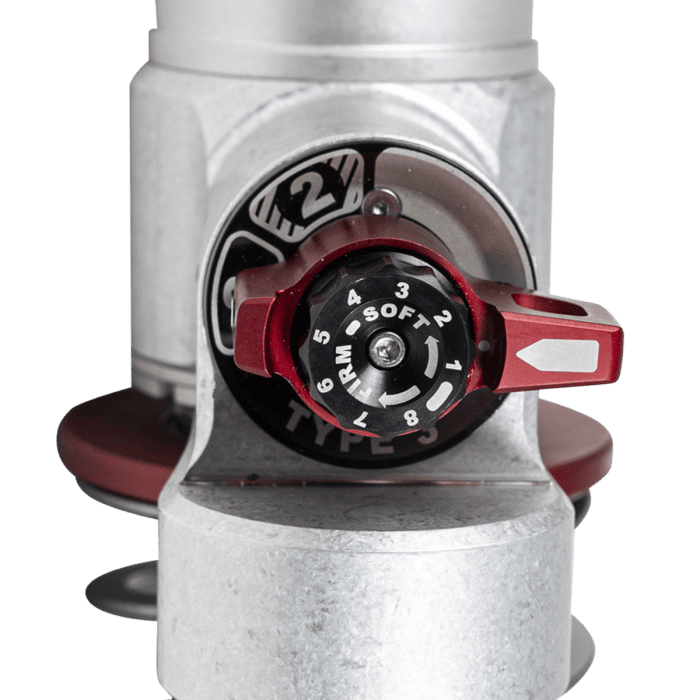

• 3-Position Fast Adjust Knob for Soft, Custom, and Firm Compression. Soft mode allows a partial bypass of the main piston for a softer ride
• 8-Position Micro Adjust Dial off-ers refined damping adjustments
• Reservoir design increases nitrogen to oil ratio for consistent damping over wide temperature ranges.
• Hard Anodized Large Bore 6061-T6 Aluminum Shock Body for impact and corrosion resistance as well as increased oil volume for consistent performance.
• VOD (Volume Optimized Damping) features a digressive linear piston for quicker ramp-up for reduced body roll and an overall increase in damping to reduce bottom out when pushed to the limit.
• Red Line high VI shock oil for consistent performance across all temperatures from -50F to 450F with anti-wear and lubricity agents.

Refer to the tire fitment guide along with the year make model data. Tire fitments shown are for Maximum size and based on a no rub or no modifications required fitment. ReadyLIFT & Recon Recovery is not responsible if the listed max sizes are exceeded. Due to differences in manufacturing, dimension and inflated measurements, tire and wheel combinations should be test fit prior to installation.

Fitment

• 2017-2022 Ford F-250 Super Duty (Diesel) — 4WD
  • Lift: 4" | Max Tire: 37" x 12.5" | Wheel Width: 9" | Backspacing: 5" | Offset: 0
• 2017-2022 Ford F-350 Super Duty (Diesel) — 4WD

NOTE: Tremor versions will not gain the full 4 inches over stock ride height. Kits are designed for diesel applications only. Not recommended for 2WD or gas trucks. Single Cab configuration has not been validated for fitment & drivability by ReadyLIFT.

Specifications

• Fitment: Universal
• Front or Rear: Front and Rear
• Front Lift Height: 4
• Front Lift Component: Coil Spring
• Front Shocks: Falcon 3.3
• Rear Lift Height: 4
• Rear Lift Component: Block
• Rear Shocks: Falcon 3.3
• Max Tire Size: 37
• Installation Time: 5+ Hours
• Install Difficulty: Intermediate Requires some Automotive knowledge
• Color: Black
• Material: Steel
• Country of Origin: US

Warranty

READYLIFT® “NO HASSLE” PRODUCT WARRANTY

This unique “no hassle” product warranty proves their commitment to the quality of every product that ReadyLIFT produces. ReadyLIFT product warranty only extends to the Original Purchaser of any ReadyLIFT product. If it breaks, they'll give you a new part.

Any ReadyLIFT products containing missing or defective components will be covered under warranty by ReadyLIFT. Please contact Recon Recovery to initiate a warranty claim. In the event of a defective product, ReadyLIFT may request a return of the defective product (at ReadyLIFT expense) so the quality team can analyze the nature of the defect. Returning defective product will not delay the replacement part delivery.

ReadyLIFT leveling kit, block kits and lift kit products are NOT intended for off-road abuse. Any abuse or damage as a result of off-road use voids the warranty of the ReadyLIFT product. Exception: ReadyLIFT Jeep SST and Terrain Flex Lift Kits are designed for normal off-road use to complement the Jeep vehicle's off-road capability. All Jeep Lift Kit products are covered under warranty when used in recreational off-road environments.

Wearable components including, but not limited to, shocks, ball joints, heim joints, bushings, and steering extensions, are covered for up to 1-year. Labor, installation, surcharges or any other applicable fees from the original purchase are non-refundable. ReadyLIFT is not responsible for any consequential damage to vehicles.
