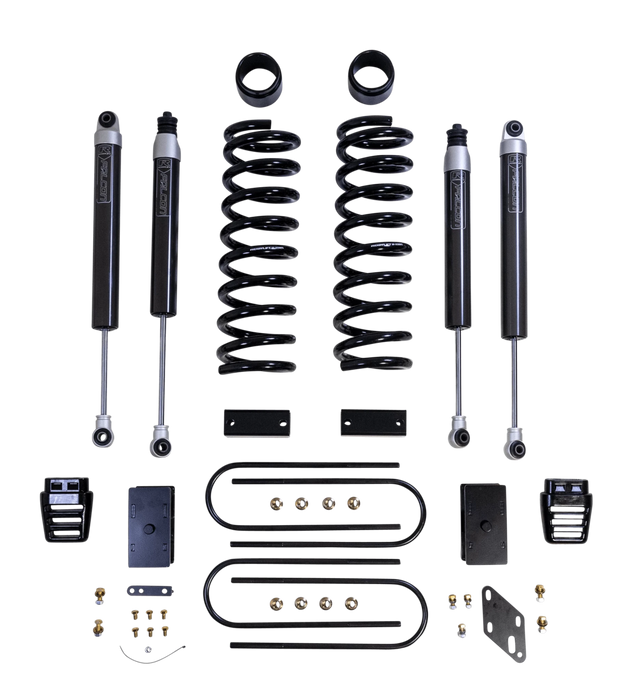

Lift and level out your RAM 3500 dually diesel-powered truck with ReadyLIFT " new 3-inch lift kit. ReadyLIFT's kit provides plenty of clearance for larger aggressive tires and wheels delivering a muscular, tough look, all while improving the factory ride quality while clearing up to 35x12.50 tires. The new Ram HD 3" Coil Spring Lift Kit is specifically designed for Heavy-Duty applications utilizing ReadyLIFT-engineered new front coil springs and Falcon 1.1 Monotube front & rear shocks. The 3500 dually kit includes rear blocks and U-bolts to achieve a neutral, lifted stance.
Ram 3500 dually trucks equipped with rear air require the new air spacer part number www.readylift.com/2019-2023-ram-3500-dually-rear-air-3-spacer-kit.html 26-19332 .
Features and Benefits: Front Coil Spring 3" Lift Suspension. Max Lift 3 in - Max Tire Diameter 35 in. For 2019-2023 Ram 3500 Dually. 4-Corner Falcon 1.1 Monotube Shocks.
Diesel Motor Ram 3500 Dually HD's only. Wheel Fitment 20x8.5 -145/+145 Offset.
Features
- Front Coil Spring 3" Lift Suspension
- Maximum lift of 3 inches
- Compatible with 2019-2023 Ram 3500 Dually models
- Features 4Corner Falcon 1.1 Monotube Shocks
- Designed specifically for Diesel Motor Ram 3500 Dually HD models
- Allows for wheel fitment of 20x8.5 with 145/+145 off-set
- Compatible with trucks equipped with rear air, additional spacers required
- Not compatible with Power Wagon, single cab trucks, or Snow Prep/Ambulance Package
- Can accommodate up to 35" tires
- 37" tires may require trimming for proper fitment
Refer to the tire fitment guide along with the year make model data. Tire fitments shown are for Maximum size and based on a no rub or no modifications required fitment. ReadyLIFT & Recon Recovery is not responsible if the listed max sizes are exceeded. Due to differences in manufacturing, dimension and inflated measurements, tire and wheel combinations should be test fit prior to installation.
Fitment
- 2019-2024 Ram 3500 — 4WD
- 2019-2024 DODGE RAM 3500 DUALLY: Lift: 3.0" F-3.0" R | Max Tire: 35" x 12.5" (325/60R20) | Wheel Width: 8.25" | Backspacing: 5" | Offset: -145/+145 (*(MAX WITH TRIMMING) - Tire: 37" x 12.5")
Note: Trucks equipped with rear air require additional spacers PN: www.readylift.com/2019-2023-ram-3500-dually-rear-air-3-spacer-kit.html 26-19332 .
Not compatible with Power Wagon, single cab trucks, or Snow Prep/Ambulance Package. 37 " tires will require trimming.
Specifications
-
Fitment: Direct Fitment
-
Front or Rear: Front and Rear
-
Front Lift Height: 3 Inches
-
Front Lift Component: Coil Spring
-
Front Shocks: Falcon 1.1 Monotube
-
Rear Lift Height: 3 Inches
-
Rear Lift Component: Block and U-bolt
-
Rear Shocks: Falcon 1.1 Monotube
-
Max Tire Size: 35 Inch
-
Installation Time: 4 Hours
-
Install Difficulty: Difficult Requires Professional Installation
-
Country of Origin: US
Warranty
READYLIFT® “NO HASSLE” PRODUCT WARRANTY
This unique “no hassle” product warranty proves their commitment to the quality of every product that ReadyLIFT produces. ReadyLIFT product warranty only extends to the Original Purchaser of any ReadyLIFT product. If it breaks, they'll give you a new part.
Any ReadyLIFT products containing missing or defective components will be covered under warranty by ReadyLIFT. Please contact Recon Recovery to initiate a warranty claim. In the event of a defective product, ReadyLIFT may request a return of the defective product (at ReadyLIFT expense) so the quality team can analyze the nature of the defect. Returning defective product will not delay the replacement part delivery.
ReadyLIFT leveling kit, block kits and lift kit products are NOT intended for off-road abuse. Any abuse or damage as a result of off-road use voids the warranty of the ReadyLIFT product. Exception: ReadyLIFT Jeep SST and Terrain Flex Lift Kits are designed for normal off-road use to complement the Jeep vehicle's off-road capability. All Jeep Lift Kit products are covered under warranty when used in recreational off-road environments.
Wearable components including, but not limited to, shocks, ball joints, heim joints, bushings, and steering extensions, are covered for up to 1-year. Labor, installation, surcharges or any other applicable fees from the original purchase are non-refundable. ReadyLIFT is not responsible for any consequential damage to vehicles.
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product.
