ReadyLIFT Suspension has engineered a line of suspension products made to fit the 2011-2016 Ford Super Duty equipped with diesel engines. Our 2011-2016 F250 4WD 3.5" F/1.5"-3.0" R SST Lift Kit provides the exact amount of front and rear lift while allowing for wheel and tire combinations up to 35" and keeping the smooth OEM ride and drivability. This ReadyLIFT SST Lift Kit is the perfect Lift Solution for the 2011-2016 Ford Super Duty trucks with a diesel engines and a two-piece drive shaft. Does not fit the 2011-2016 Super Duty with the 6.2 liter GASOLINE engine.

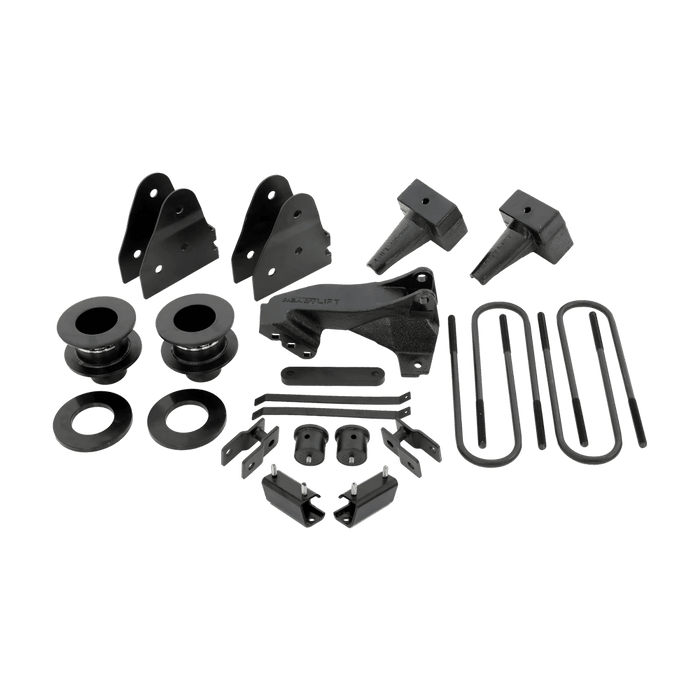

The 69-2531 3.5" F/3.0" R SST Lift Kit includes 3.5" powdercoated steel coil spring spacers, sound isolators, shock extensions, sway bar frame mount spacers, bump stop extensions, carrier bearing spacer, track bar relocation bracket, radius arm drop brackets and OEM-style 5.0" Rear Lift Blocks for a great looking mild lift system that will maintain your factory ride!

Features

• Max Lift: 3.5
• Front lift range: 1.0"3.0
• Rear lift range: 3.0
• Maximum tire diameter: 35
• Compatible with 2011-2016 F250/F-350/F450 4WD trucks
• Designed for trucks with twopiece drive shaft
• Includes 5" rear block
• Specifically designed for diesel engines
• Gas engine trucks will sit nose high
• Easy to install and use

Refer to the tire fitment guide along with the year make model data. Tire fitments shown are for Maximum size and based on a no rub or no modifications required fitment. ReadyLIFT & Recon Recovery is not responsible if the listed max sizes are exceeded. Due to differences in manufacturing, dimension and inflated measurements, tire and wheel combinations should be test fit prior to installation.

Fitment

• 2011-2016 Ford F-250 Super Duty (Standard Box) — 4WD
  • Lift: 3.5" F-1-3" R | Max Tire: 37" x 12.5" | Wheel Width: 9" | Backspacing: 5" | Offset: 0
• 2011-2016 Ford F-350 Super Duty (Standard Box) — 4WD
• 2011-2016 Ford F-450 Super Duty (Standard Box) — 4WD

NOTE: This kit is for use on trucks with a two-piece drive shaft. If you have a one-piece drive shaft, use kit 69-2538.

NOTE: The lift blocks in this kit are not designed to work with aftermarket or factory add-on air spring/load leveling kits that attach to the bump stop tangs. Use of this type of air bag system will void all block warranties and can cause failure of the block bump stop tang. Diesel engines only. Gas engine trucks will sit nose high.

NOTE: Tow Package vehicles may require longer U-bolts or removal of top overload springs.

Specifications

• Fitment: Direct Fitment
• Front or Rear: Front and Rear
• Front Lift Height: 3.5 Inches
• Front Lift Component: Coil Spring Spacer
• Rear Lift Height: 3 Inches
• Rear Lift Component: Block and U-bolt
• Max Tire Size: 37 Inch
• Installation Time: 5+ Hours
• Install Difficulty: Difficult Requires Professional Installation
• Shocks Included: No
• Country of Origin: TN

Notes

• (1) NOTE: Alignment cams are suggested for all kits

Warranty

READYLIFT® “NO HASSLE” PRODUCT WARRANTY

This unique “no hassle” product warranty proves their commitment to the quality of every product that ReadyLIFT produces. ReadyLIFT product warranty only extends to the Original Purchaser of any ReadyLIFT product. If it breaks, they'll give you a new part.

Any ReadyLIFT products containing missing or defective components will be covered under warranty by ReadyLIFT. Please contact Recon Recovery to initiate a warranty claim. In the event of a defective product, ReadyLIFT may request a return of the defective product (at ReadyLIFT expense) so the quality team can analyze the nature of the defect. Returning defective product will not delay the replacement part delivery.

ReadyLIFT leveling kit, block kits and lift kit products are NOT intended for off-road abuse. Any abuse or damage as a result of off-road use voids the warranty of the ReadyLIFT product. Exception: ReadyLIFT Jeep SST and Terrain Flex Lift Kits are designed for normal off-road use to complement the Jeep vehicle's off-road capability. All Jeep Lift Kit products are covered under warranty when used in recreational off-road environments.

Wearable components including, but not limited to, shocks, ball joints, heim joints, bushings, and steering extensions, are covered for up to 1-year. Labor, installation, surcharges or any other applicable fees from the original purchase are non-refundable. ReadyLIFT is not responsible for any consequential damage to vehicles.

WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product.
