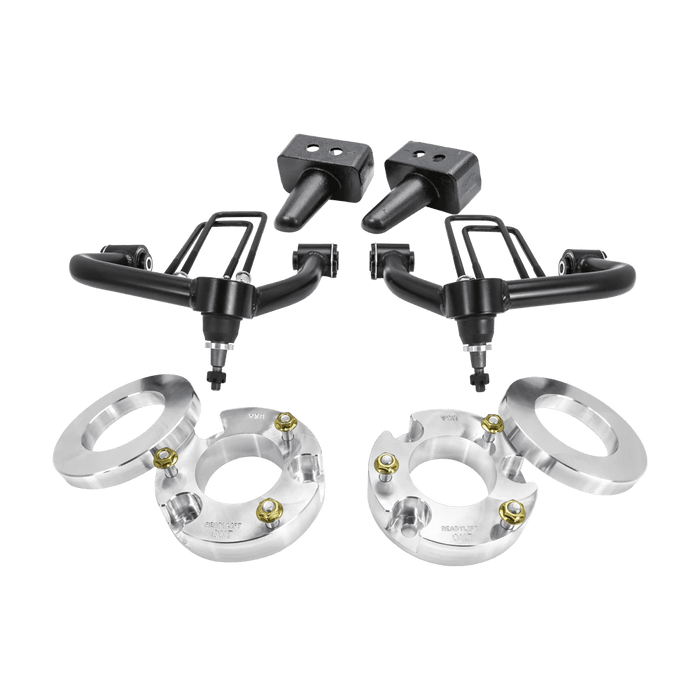

ReadyLIFT Suspension has engineered a 3.5" lift kit made to fit the 2017-2022 Ford F250/F-350 SuperDuty 4WD trucks with a two-piece drive shaft. These new 3.5" lift kits allow for wheel and tire combinations up to 37" while keeping the smooth OEM ride and drivability. This is a complete lift kit includes 4" OEM-equivalent rear blocks with integrated bump stop landings, 3.5" coil spring extensions with sound isolators, an OEM-style panhard drop bracket, front bump stops OEM shock extension brackets, a pair of radius arm drop brackets, and all needed hardware. When used with the maximum size tires, the F250 truck body is raised over 6".

ReadyLIFT Smart Suspension Technology is used to make this kit very user-friendly to install, requiring no cutting or drilling. Like all other ReadyLIFT kits, the F250/F-350 3.5" SST Lift Kit is guaranteed for life against manufacturing defects.

Features

• Max Lift: 3.5
• Front lift: 1.0
• Rear lift: 1.0
• Maximum tire diameter: 37
• Compatible with 2017-2022 Super Duty 4WD with 2piece drive shaft
• Includes radius arm drop brackets
• Track bar relocation bracket
• Front coil spring spacers
• Carrier bearing drop spacer
• Flat 4" lift rear blocks

Refer to the tire fitment guide along with the year make model data. Tire fitments shown are for Maximum size and based on a no rub or no modifications required fitment. ReadyLIFT & Recon Recovery is not responsible if the listed max sizes are exceeded. Due to differences in manufacturing, dimension and inflated measurements, tire and wheel combinations should be test fit prior to installation.

Fitment

• 2017-2022 Ford F-250 Super Duty (Standard Box) — 4WD
  • Lift: 3.5" F-1-3" R | Max Tire: 37" x 12.5" | Wheel Width: 9" | Backspacing: 5" | Offset: 0 (* - Max tire size on factory wheel. Inside edge of tire may rub on radius arm at full turn.)
• 2017-2022 Ford F-350 Super Duty (Standard Box) — 4WD
• 2017-2022 Ford F-450 Super Duty (Standard Box) — 4WD

NOTE: For use with trucks with a two-piece drive shaft.NOTE: The lift blocks in this kit are not designed to work with aftermarket or factory add-on air spring/load leveling kits that attach to the bump stop tangs. Use of this type of air bag system will void all block warranties and can cause failure of the block bump stop tang.

NOTE: 2020-22 MY Super Duty may sit slightly taller in the rear than prior model years due block height variations from the Ford factory. The additional rake works well visually with the vehicle's body lines.

NOTE: Not compatible with TREMOR editions.

Specifications

• Fitment: Direct Fitment
• Front or Rear: Front and Rear
• Front Lift Height: 3.5 Inches
• Front Lift Component: Coil Spring Spacer
• Rear Lift Height: 3.5 Inches
• Rear Lift Component: Block and U-bolt
• Max Tire Size: 37 Inch
• Installation Time: 5+ Hours
• Install Difficulty: Difficult Requires Professional Installation
• Country of Origin: US

Notes

• (1) NOTE: Alignment cams are suggested for all kits

Warranty

READYLIFT® “NO HASSLE” PRODUCT WARRANTY

This unique “no hassle” product warranty proves their commitment to the quality of every product that ReadyLIFT produces. ReadyLIFT product warranty only extends to the Original Purchaser of any ReadyLIFT product. If it breaks, they'll give you a new part.

Any ReadyLIFT products containing missing or defective components will be covered under warranty by ReadyLIFT. Please contact Recon Recovery to initiate a warranty claim. In the event of a defective product, ReadyLIFT may request a return of the defective product (at ReadyLIFT expense) so the quality team can analyze the nature of the defect. Returning defective product will not delay the replacement part delivery.

ReadyLIFT leveling kit, block kits and lift kit products are NOT intended for off-road abuse. Any abuse or damage as a result of off-road use voids the warranty of the ReadyLIFT product. Exception: ReadyLIFT Jeep SST and Terrain Flex Lift Kits are designed for normal off-road use to complement the Jeep vehicle's off-road capability. All Jeep Lift Kit products are covered under warranty when used in recreational off-road environments.

Wearable components including, but not limited to, shocks, ball joints, heim joints, bushings, and steering extensions, are covered for up to 1-year. Labor, installation, surcharges or any other applicable fees from the original purchase are non-refundable. ReadyLIFT is not responsible for any consequential damage to vehicles.
