ReadyLIFT offers an expanded line of leveling products made to fit the Ford Super Duty trucks. Due to popular demand we developed a SST Lift Kit for the 1999-2004 Ford F250 Super Duty 4WD trucks and 2000-2005 Ford Excursion 4WD. (Note: for use on 1999 model F250 trucks built after 3/1/1999 - not for use on trucks built before 3/1/99). These front leaf spring trucks require an innovative approach to leveling-lifting. ReadyLIFT is proud to offer a new SST Lift Kit system that will compliment the leaf spring suspension.

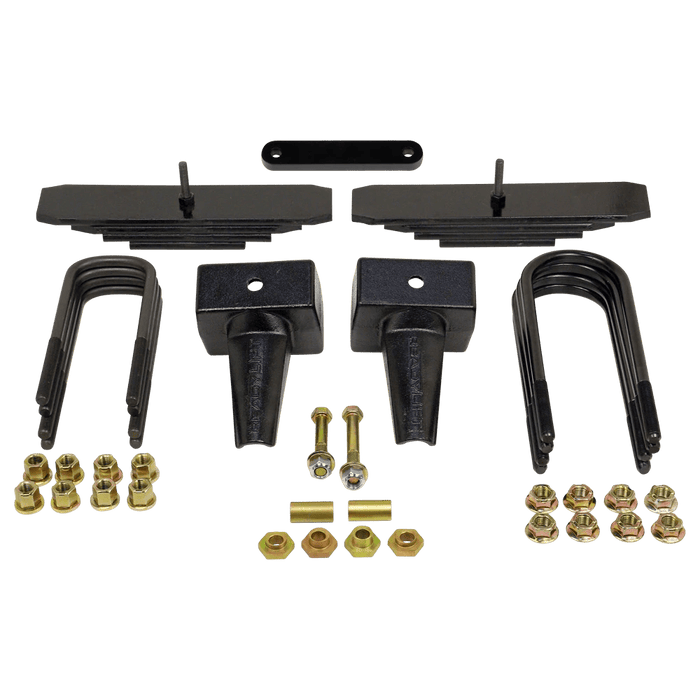

This system includes a "mini leaf pack" that, once installed under the factory leaf spring pack, raises the front of the F250 4WD Super Duty trucks a total of 2.0" which is what is required to obtain a level stance. To lift the rear, our time-tested OEM-style 4.0" cast iron rear blocks with built-in pinion angle correction and bump stop landings replace the factory 2.0" block for additional lift of 2.0". This kit also includes a carrier bearing spacer which is intended for use on trucks with a two-piece drive shaft. This set up establishes a mild lift with a slight rake maintained for towing or hauling.

The kit comes with new longer front and rear U-bolts and hardware as well as important pan-hard bar alignment bushings. This kit will allow for up to 35" tall tires. If you are looking for a leveling kit for your (post 3/1/99) '99-04 F250 then look no further. This is the kit you've been searching for.

Fits trucks fit with either the gas or diesel engine applications

Features

• Max lift of 2.0" in the front and 2.0" in the rear
• Compatible with trucks with twopiece drive shafts
• Can accommodate tires up to 35" in diameter
• Features a mini leaf pack design that inserts under the front leaf springs

Refer to the tire fitment guide along with the year make model data. Tire fitments shown are for Maximum size and based on a no rub or no modifications required fitment. ReadyLIFT & Recon Recovery is not responsible if the listed max sizes are exceeded. Due to differences in manufacturing, dimension and inflated measurements, tire and wheel combinations should be test fit prior to installation.

Fitment

• 1999-2004 Ford Excursion — 4WD
• 1999-2004 Ford F-250 Super Duty (Standard Box) — 4WD
  • Lift: 2.0" F-2.0" R | Max Tire: 35" x 12.5" (325/60R20) | Wheel Width: 9" | Backspacing: 5" | Offset: 0
• 1999-2004 Ford F-350 Super Duty (Standard Box) — 4WD
• 1999-2004 Ford F-450 (Standard Box) — 4WD

NOTE: For trucks with a two-piece drive shaft.

NOTE: The lift blocks in this kit are not designed to work with aftermarket or factory add-on air spring/load leveling kits that attach to the bump stop tangs. Use of this type of air bag system will void all block warranties and can cause failure of the block bump stop tang.

Specifications

• Fitment: Direct Fitment
• Front or Rear: Front and Rear
• Front Lift Height: 2 Inches
• Front Lift Component: Leaf Spring
• Rear Lift Height: 2 Inches
• Rear Lift Component: Block
• Max Tire Size: 35 Inch
• Installation Time: 5+ Hours
• Install Difficulty: Difficult Requires Professional Installation
• Country of Origin: US

Notes

• (1) NOTE: Alignment cams are suggested for all kits

Warranty

READYLIFT® “NO HASSLE” PRODUCT WARRANTY

This unique “no hassle” product warranty proves their commitment to the quality of every product that ReadyLIFT produces. ReadyLIFT product warranty only extends to the Original Purchaser of any ReadyLIFT product. If it breaks, they'll give you a new part.

Any ReadyLIFT products containing missing or defective components will be covered under warranty by ReadyLIFT. Please contact Recon Recovery to initiate a warranty claim. In the event of a defective product, ReadyLIFT may request a return of the defective product (at ReadyLIFT expense) so the quality team can analyze the nature of the defect. Returning defective product will not delay the replacement part delivery.

ReadyLIFT leveling kit, block kits and lift kit products are NOT intended for off-road abuse. Any abuse or damage as a result of off-road use voids the warranty of the ReadyLIFT product. Exception: ReadyLIFT Jeep SST and Terrain Flex Lift Kits are designed for normal off-road use to complement the Jeep vehicle's off-road capability. All Jeep Lift Kit products are covered under warranty when used in recreational off-road environments.

Wearable components including, but not limited to, shocks, ball joints, heim joints, bushings, and steering extensions, are covered for up to 1-year. Labor, installation, surcharges or any other applicable fees from the original purchase are non-refundable. ReadyLIFT is not responsible for any consequential damage to vehicles.

WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product.
