ReadyLIFT Suspension offers a suspension product designed specifically for the 2011-2016 Ford Super Duty. The 2011-2016 F250 4WD 2.5" F/2.0" R SST Lift Kit is engineered to provide the ideal front and rear lift for towing or hauling, maintaining a slight rake. It accommodates wheel and tire combinations up to 35 inches while preserving the smooth OEM ride and drivability.

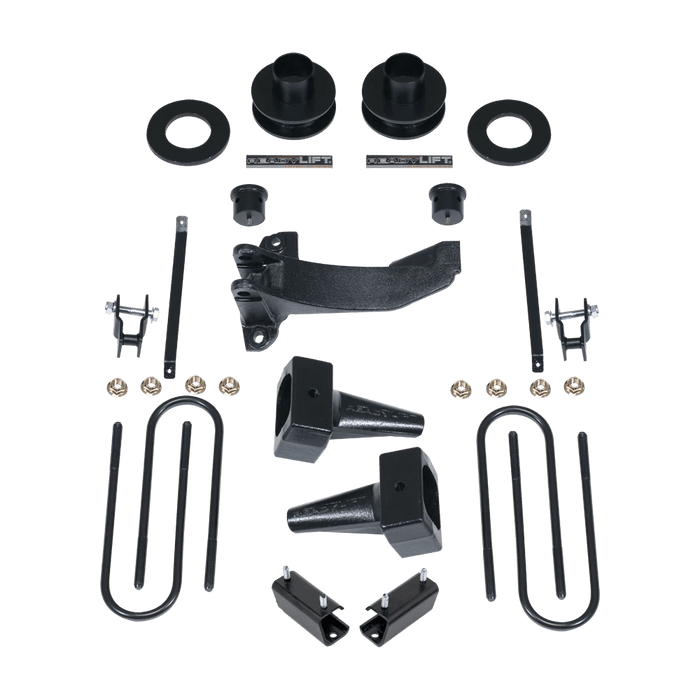

This kit includes various components such as 2.5-inch powder-coated steel coil spring spacers, sound isolators, shock extensions, sway bar frame mount spacers, bump stop extensions, carrier bearing spacer, and track bar relocation bracket.

Additionally, it features ReadyLIFT's 4.0-inch OEM-style cast iron block to achieve near factory rake, enhancing the lifted stance. The 2.5-inch coil spacers and sound isolators ensure a comfortable OEM ride, while shock extensions allow the retention of existing front shocks. To level the truck, front sway bar frame mounts are spaced downward, a unique feature of this kit. Bumpstop extensions maintain the factory distance between the bump stop and axle, and a carrier bearing spacer allows for driveshaft angle adjustment.

The kit also includes a track bar relocation bracket for improved steering quality. Installation is made easy with ReadyLIFT's Smart Suspension Technology, requiring no cutting or drilling.

Moreover, this kit is backed by a lifetime guarantee against manufacturing defects. Note that it is designed for F250 trucks with one-piece drive shaft and may not work with certain aftermarket or factory air spring/load leveling kits that attach to the bump stop tangs, as this can void block warranties and lead to block bump stop tang failure. Upgrade your 2011-2016 F250 4WD with this reliable and user-friendly 2.5" SST Lift Kit for an enhanced lifted stance with a slight rake while preserving the factory ride quality. Save time and money with this value-packed solution from ReadyLIFT.

Features

• Max Lift: 2.5 inches in the front and 2.0 inches in the rear
• Maximum tire diameter: 35 inches
• Compatible with 2011-2016 F250 4WD trucks with onepiece drive shaft
• Includes shock extensions, bump stop extensions, track bar relocation bracket, and OEM style rear lift blocks

Refer to the tire fitment guide along with the year make model data. Tire fitments shown are for Maximum size and based on a no rub or no modifications required fitment. ReadyLIFT & Recon Recovery is not responsible if the listed max sizes are exceeded. Due to differences in manufacturing, dimension and inflated measurements, tire and wheel combinations should be test fit prior to installation.

Fitment

• 2011-2016 Ford F-250 Super Duty (Standard Box) — 4WD
  • Lift: 2.5" F-2.0" R | Max Tire: 35" x 12.5" (325/60R20) | Wheel Width: 9" | Backspacing: 5" | Offset: 0 (* - Max tire size on factory wheel. Inside edge of tire may rub on radius arm at full turn.)
• 2011-2016 Ford F-350 Super Duty (Standard Box) — 4WD
• 2011-2016 Ford F-450 Super Duty (Standard Box) — 4WD

Specifications

• Fitment: Direct Fitment
• Front or Rear: Front and Rear
• Front Lift Height: 2.5 Inches
• Front Lift Component: Coil Spring Spacer
• Rear Lift Height: 2 Inches
• Rear Lift Component: Block and U-bolt
• Max Tire Size: 35 Inch
• Installation Time: 5+ Hours
• Install Difficulty: Difficult Requires Professional Installation
• Shocks Included: No
• Country of Origin: TN

Notes

• (1) NOTE: Alignment cams are suggested for all kits

Warranty

READYLIFT® “NO HASSLE” PRODUCT WARRANTY

This unique “no hassle” product warranty proves their commitment to the quality of every product that ReadyLIFT produces. ReadyLIFT product warranty only extends to the Original Purchaser of any ReadyLIFT product. If it breaks, they'll give you a new part.

Any ReadyLIFT products containing missing or defective components will be covered under warranty by ReadyLIFT. Please contact Recon Recovery to initiate a warranty claim. In the event of a defective product, ReadyLIFT may request a return of the defective product (at ReadyLIFT expense) so the quality team can analyze the nature of the defect. Returning defective product will not delay the replacement part delivery.

ReadyLIFT leveling kit, block kits and lift kit products are NOT intended for off-road abuse. Any abuse or damage as a result of off-road use voids the warranty of the ReadyLIFT product. Exception: ReadyLIFT Jeep SST and Terrain Flex Lift Kits are designed for normal off-road use to complement the Jeep vehicle's off-road capability. All Jeep Lift Kit products are covered under warranty when used in recreational off-road environments.

Wearable components including, but not limited to, shocks, ball joints, heim joints, bushings, and steering extensions, are covered for up to 1-year. Labor, installation, surcharges or any other applicable fees from the original purchase are non-refundable. ReadyLIFT is not responsible for any consequential damage to vehicles.

WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product.
