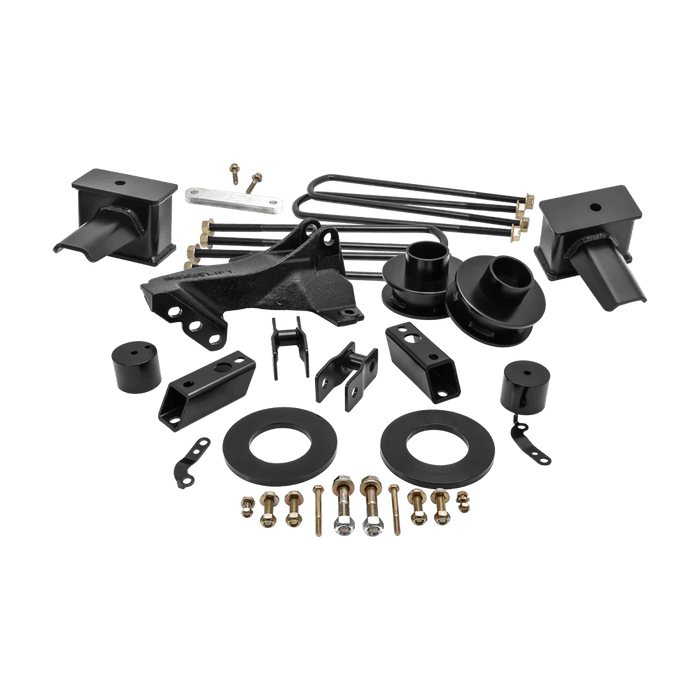

When it comes to lifting your 2017-2026 Ford F-250/F-350 Super Duty SRW, the ReadyLIFT 2.5" SST Lift Kit system provides a comprehensive solution. This kit raises your 2017-2026 single rear wheel Super Duty by 2.5" in the front and 2.0" in the rear. It was developed in response to customer demand for a leveling kit height lift that includes rear blocks to maintain some rake for towing or hauling purposes. The kit includes 2.5" coil spacers and sound isolators to preserve the OEM ride quality and reduce noise.

Shock extensions are included to retain the use of your existing front shocks, eliminating the need for aftermarket replacements. Sway bar drop mount spacers ensure the correct sway bar location, while bump stop extensions maintain the factory distance between the bump stop and axle.

Additionally, a carrier bearing spacer allows for driveshaft angle adjustment, and a track bar relocation bracket enhances steering quality. This kit is ideal for achieving a lifted stance with a slight rake on your 2017-2026 F-250 / F-350 4WD.

Please note that it is not compatible with TREMOR editions and should not be used with aftermarket or factory add-on air spring/load leveling kits that attach to the bump stop tangs, as it may void block warranties and cause block bump stop tang failure. Also, keep in mind that 2020-25 MY Super Duty trucks may sit slightly taller in the rear due to block height variations from the Ford factory, which complements the vehicle's body lines aesthetically. The 69-2741 2.5" SST Lift Kit by ReadyLIFT is a convenient and safe way to lift your Super Duty while preserving your factory ride quality. It offers a cost-effective solution without the need for extensive installation time, cutting, or drilling.

Plus, it comes with a lifetime guarantee against manufacturing defects.

Features

• 2.5" SST Lift Kit
• Compatible with 2017-2026 Ford Super Duty (SRW) 4WD models
• Maintains factory ride
• Designed for use on SRW trucks with 2piece drive shaft
• Allows for 37" tall tires (35" is ideal for this kit)
• Not compatible with TREMOR editions

Refer to the tire fitment guide along with the year make model data. Tire fitments shown are for Maximum size and based on a no rub or no modifications required fitment. ReadyLIFT & Recon Recovery is not responsible if the listed max sizes are exceeded. Due to differences in manufacturing, dimension and inflated measurements, tire and wheel combinations should be test fit prior to installation.

Fitment

• 2017-2026 Ford F-250 Super Duty (Standard Box) — 4WD
  • Lift: 2.5" F-2.0" R | Max Tire: 35" x 12.5" (325/60R20) | Wheel Width: 9" | Backspacing: 5" | Offset: 0 (* - Max tire size on factory wheel. Inside edge of tire may rub on radius arm at full turn.)
  • Lift: 2.5" F-2.0" R | Max Tire: 37" x 12.5" | Wheel Width: 9" | Backspacing: 5" | Offset: 0
• 2017-2026 Ford F-350 Super Duty (Standard Box) — 4WD
• 2017-2026 Ford F-450 Super Duty (Standard Box) — 4WD

Specifications

• Fitment: Direct Fitment
• Front or Rear: Front and Rear
• Front Lift Height: 2.5 Inches
• Front Lift Component: Coil Spring Spacer
• Rear Lift Height: 2 Inches
• Rear Lift Component: Block and U-bolt
• Max Tire Size: 35 Inch
• Installation Time: 5+ Hours
• Install Difficulty: Difficult Requires Professional Installation
• Country of Origin: US

Notes

• (1) NOTE: Alignment cams are suggested for all kits

Warranty

READYLIFT® “NO HASSLE” PRODUCT WARRANTY

This unique “no hassle” product warranty proves their commitment to the quality of every product that ReadyLIFT produces. ReadyLIFT product warranty only extends to the Original Purchaser of any ReadyLIFT product. If it breaks, they'll give you a new part.

Any ReadyLIFT products containing missing or defective components will be covered under warranty by ReadyLIFT. Please contact Recon Recovery to initiate a warranty claim. In the event of a defective product, ReadyLIFT may request a return of the defective product (at ReadyLIFT expense) so the quality team can analyze the nature of the defect. Returning defective product will not delay the replacement part delivery.

ReadyLIFT leveling kit, block kits and lift kit products are NOT intended for off-road abuse. Any abuse or damage as a result of off-road use voids the warranty of the ReadyLIFT product. Exception: ReadyLIFT Jeep SST and Terrain Flex Lift Kits are designed for normal off-road use to complement the Jeep vehicle's off-road capability. All Jeep Lift Kit products are covered under warranty when used in recreational off-road environments.

Wearable components including, but not limited to, shocks, ball joints, heim joints, bushings, and steering extensions, are covered for up to 1-year. Labor, installation, surcharges or any other applicable fees from the original purchase are non-refundable. ReadyLIFT is not responsible for any consequential damage to vehicles.

WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product.
