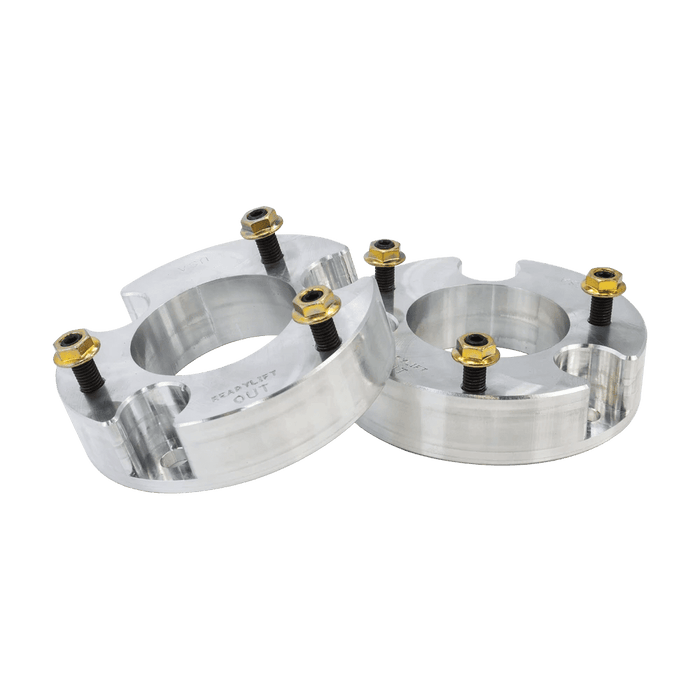

This ReadyLIFT CNC-machined billet Aluminum Leveling Kit is designed specifically for the new 2015-2020 Ford F-150 trucks. The strut positioning is different on 2015-UP trucks requiring the development of a new front lift system to lift the front of this application. This Leveling Kit Front provides 2.25" of lift via strut extension Smart Suspension Technology For 2015-2020 Ford F-150 trucks.

For distances measuring greater than 22" as described above, #66-2215 IS NOT the correct kit. Use #66-2052 1.5 Leveling Kit to ensure proper front lift height and suspension geometry. Incorrectly using 66-2215 on a truck with 22" distance may result in UCA suspension component interference and/or excessive ball joint wear.

Features

• 201520 FORD F150 2WD/4WD Front Leveling Kit
• Max Lift of 2.25
• Max Tire Diameter of 35
• Crafted from CNC Machined billet Aluminum
• Offset design engineered specifically for 2015UP F150 2wd/4wd Trucks
• Not for use on trucks that are factory prelifted/leveled or that have the "off-road package
• Check factory height prior to ordering or installing
• Trucks with more than 22" of wheel hub to fender lip height may require less lift

Refer to the tire fitment guide along with the year make model data. Tire fitments shown are for Maximum size and based on a no rub or no modifications required fitment. ReadyLIFT & Recon Recovery is not responsible if the listed max sizes are exceeded. Due to differences in manufacturing, dimension and inflated measurements, tire and wheel combinations should be test fit prior to installation.

Fitment

• 2015-2020 Ford F-150 — 2WD/4WD
  • Lift: 2.25" | Max Tire: 35" x 11.5" (295/65R20) | Wheel Width: 9" | Backspacing: 6" | Offset: +25 (***-May require some minor trimming of inner fender well.)

NOTE: Not for use on trucks that are factory pre-lifted/leveled or that have the "off-road package". To ensure proper leveling kit fitment, using a plumb bob line (for a clean vertical) to measure from the center of the wheel hub to the bottom edge of the fender at the 12 oclock position while the wheels are pointing straight forward. If this measurement is greater than 22" then the truck already has some factory front lift compared to a base truck. For distances measuring greater than 22" as described above, #66-2215 IS NOT the correct kit.

Specifications

• Fitment: Direct Fitment
• Front or Rear: Front
• Front Lift Height: 2.25 Inches
• Front Lift Component: Spacer
• Max Tire Size: 35 Inch
• Installation Time: 3 Hours
• Install Difficulty: Difficult Requires Professional Installation
• Material: Billet Aluminum
• Country of Origin: TN

Notes

• (1) Truck may have a slight rake.

Warranty

READYLIFT® “NO HASSLE” PRODUCT WARRANTY

This unique “no hassle” product warranty proves their commitment to the quality of every product that ReadyLIFT produces. ReadyLIFT product warranty only extends to the Original Purchaser of any ReadyLIFT product. If it breaks, they'll give you a new part.

Any ReadyLIFT products containing missing or defective components will be covered under warranty by ReadyLIFT. Please contact Recon Recovery to initiate a warranty claim. In the event of a defective product, ReadyLIFT may request a return of the defective product (at ReadyLIFT expense) so the quality team can analyze the nature of the defect. Returning defective product will not delay the replacement part delivery.

ReadyLIFT leveling kit, block kits and lift kit products are NOT intended for off-road abuse. Any abuse or damage as a result of off-road use voids the warranty of the ReadyLIFT product. Exception: ReadyLIFT Jeep SST and Terrain Flex Lift Kits are designed for normal off-road use to complement the Jeep vehicle's off-road capability. All Jeep Lift Kit products are covered under warranty when used in recreational off-road environments.

Wearable components including, but not limited to, shocks, ball joints, heim joints, bushings, and steering extensions, are covered for up to 1-year. Labor, installation, surcharges or any other applicable fees from the original purchase are non-refundable. ReadyLIFT is not responsible for any consequential damage to vehicles.

WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product.
