ReadyLIFT is proud to offer a SST Lift Kit system for the Chevy Colorado 2WD/4WD (Torsion bar) pickups and Hummer H3. Using ReadyLIFT's popular engineering methods, our research and development team released a true bolt-on, no modifications required, front and rear lift kit system for 2004-2012 Chevy Colorado pickups. The front of this popular truck receives a 2.25" lift in front using the ReadyLIFT adjustable torsion keys. To lift the rear, new rear leaf spring shackles are included which provide a 1.5" lift.

This equates to a nice all-around lift suitable for up to 32" tall tires while providing a bit of a rake to towing or hauling.

In addition to the highest quality torsion keys and shackles on the market, this kit also contains front and rear shock extensions so you will not have to change your stock shocks.

Features

• Max lift of 2.25 inches
• Compatible with Colorado, Canyon, and Hummer H3
• Designed for 4WD Torsion Key vehicles only
• Not suitable for 2WD Coil Spring Trucks (use 693075 instead)

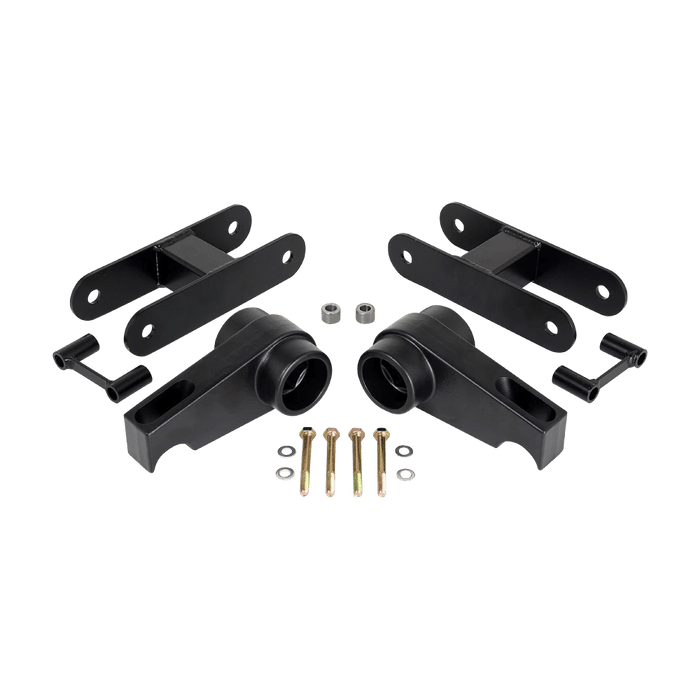

• Includes front torsion leveling keys and rear lift shackles
• Front lift of 1.5 inches, rear lift of 1 inch
• Improves ground clearance and overall appearance of vehicle
• Easy to install with basic tools
• Made with high-quality materials for durability and long-evity
• Provides a more aggressive stance and allows for larger tires
• Enhances overall performance and handling of vehicle

Fitment

• 2004-2012 Chevrolet Colorado — 2WD/4WD
  • Lift: 2.25" F-1.5" R | Max Tire: 33" x 10.5" (275/60R20) | Wheel Width: 8" | Backspacing: 5" | Offset: +12
  • 2004-2012 HUMMER H3/H3T: Lift: 2.25" F-1.5" R | Max Tire: 35" x 12.5" (325/60R20) | Wheel Width: 8" | Backspacing: 5.5" | Offset: +25
• 2004-2012 GMC Canyon — 2WD/4WD
• 2004-2012 Hummer H2 — 4WD

Refer to the tire fitment guide along with the year make model data. Tire fitments shown are for Maximum size and based on a no rub or no modifications required fitment. ReadyLIFT & Recon Recovery is not responsible if the listed max sizes are exceeded. Due to differences in manufacturing, dimension and inflated measurements, tire and wheel combinations should be test fit prior to installation.

Specifications

• Fitment: Direct Fitment
• Front or Rear: Front and Rear
• Front Lift Height: 2.25 Inches
• Front Lift Component: Torsion Key
• Rear Lift Height: 1.5 Inches
• Rear Lift Component: Spacer
• Max Tire Size: 33 Inch
• Installation Time: 5+ Hours
• Install Difficulty: Difficult Requires Professional Installation
• Country of Origin: TN

Notes

• (1) Do not use the supplied shock extensions for this application.

Warranty

READYLIFT® “NO HASSLE” PRODUCT WARRANTY

This unique “no hassle” product warranty proves their commitment to the quality of every product that ReadyLIFT produces. ReadyLIFT product warranty only extends to the Original Purchaser of any ReadyLIFT product. If it breaks, they'll give you a new part.

Any ReadyLIFT products containing missing or defective components will be covered under warranty by ReadyLIFT. Please contact Recon Recovery to initiate a warranty claim. In the event of a defective product, ReadyLIFT may request a return of the defective product (at ReadyLIFT expense) so the quality team can analyze the nature of the defect. Returning defective product will not delay the replacement part delivery.

ReadyLIFT leveling kit, block kits and lift kit products are NOT intended for off-road abuse. Any abuse or damage as a result of off-road use voids the warranty of the ReadyLIFT product. Exception: ReadyLIFT Jeep SST and Terrain Flex Lift Kits are designed for normal off-road use to complement the Jeep vehicle's off-road capability. All Jeep Lift Kit products are covered under warranty when used in recreational off-road environments.

Wearable components including, but not limited to, shocks, ball joints, heim joints, bushings, and steering extensions, are covered for up to 1-year. Labor, installation, surcharges or any other applicable fees from the original purchase are non-refundable. ReadyLIFT is not responsible for any consequential damage to vehicles.

WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product.
