To run a 285 or larger tire on factory wheels, some compatible 2007-2018 GM 1500 6-lug truck and SUV applications may require ReadyLIFT's 15-3485 1/2" front wheel spacer due to differences in factory wheel options and backspacing.

The ReadyLIFT 66-3085 Front Leveling Kit provides up to 2.25 inches of front lift without compressing the factory springs or requiring permanent modification to factory components or cutting of the strut studs. The system is designed to maintain factory OEM ride quality and comfort.

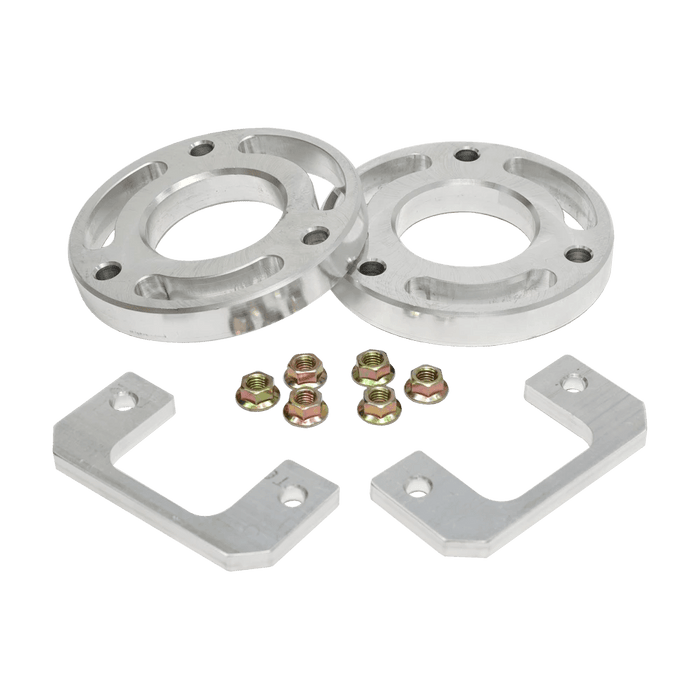

The 66-3085 kit includes two Aluminum SST Strut Extensions, two Aluminum SST Lower Strut Mount Spacers, and the necessary installation hardware. The spacers are CNC-machined from solid 6061-T6 billet aluminum for strength and durability.

For 2017 models equipped with stamped-steel upper control arms, compatible aftermarket upper control arms or factory aluminum upper control arms are required. Stamped-steel upper control arms on these models can experience ball-joint issues when the suspension is leveled or lifted.

Before ordering or installing the kit, measure the vehicle's existing front ride height. With the wheels pointing straight forward, use a plumb line to measure from the center of the wheel hub to the bottom edge of the fender at the 12 o'clock position. A measurement greater than 22 inches indicates that the vehicle may already have factory or aftermarket front lift.

If the measurement exceeds 22 inches, ReadyLIFT specifies that the kit should be installed without the lower horseshoe spacer to account for the vehicle's existing lift and maintain proper suspension geometry. Installing the complete kit on a vehicle that is already above this height may result in component interference or excessive wear.

Features

• Provides up to 2.25" of front lift
• Accommodates tires up to 33" in diameter
• Designed for compatible 2007-2018 GM full-size 1500 LD 6-lug trucks and SUVs
• CNC-machined 6061-T6 billet aluminum construction
• Includes upper strut extensions, lower strut spacers, and necessary hardware
• Does not compress factory springs or require cutting the factory strut studs
• Designed to maintain factory OEM ride quality and comfort
• Not compatible with vehicles equipped with factory Air-Ride
• Vehicles equipped with Magnetic Ride Control require recalibration
• Factory ride height should be checked before ordering or installation
• Vehicles measuring more than 22" from the wheel hub to the fender lip may require less lift
• 1/2" front wheel spacers may be required when running 285 or larger tires on certain factory wheels
• 2017 models with stamped-steel upper control arms require compatible aftermarket or factory aluminum upper control arms


Refer to the tire fitment guide along with the year make model data. Tire fitments shown are for Maximum size and based on a no rub or no modifications required fitment. ReadyLIFT & Recon Recovery is not responsible if the listed max sizes are exceeded. Due to differences in manufacturing, dimension and inflated measurements, tire and wheel combinations should be test fit prior to installation.

Fitment

• 2007-2013 Chevrolet Avalanche — 2WD/4WD
• 2007-2018 Chevrolet Silverado 1500 — 2WD/4WD

  • Lift: 2.25" | Max Tire: 33" x 11.5" (285/60R20) | Wheel Width: 9" | Offset: +12 (***-May require some minor trimming of inner fender well.)
• 2007-2016 GMC Sierra 1500 — 2WD/4WD
• 2007-2018 Chevrolet Tahoe (XL) — 2WD/4WD
• 2007-2018 Chevrolet Suburban (XL) — 2WD/4WD
• 2007-2018 GMC Yukon (XL) — 2WD/4WD

Specifications

• Fitment: Direct Fitment
• Front Lift Height: 2.25 Inches
• Max Tire Size: 33 Inch
• Installation Time: 4 Hours
• Install Difficulty: Difficult Requires Professional Installation
• Country of Origin: TN

Notes

• (1) Rear coil spacer installation recommended for level or slight rake stance.
• (1) Rear coil spacers may be required to achieve a level stance.

Warranty

READYLIFT® “NO HASSLE” PRODUCT WARRANTY

This unique “no hassle” product warranty proves their commitment to the quality of every product that ReadyLIFT produces. ReadyLIFT product warranty only extends to the Original Purchaser of any ReadyLIFT product. If it breaks, they'll give you a new part.

Any ReadyLIFT products containing missing or defective components will be covered under warranty by ReadyLIFT. Please contact Recon Recovery to initiate a warranty claim. In the event of a defective product, ReadyLIFT may request a return of the defective product (at ReadyLIFT expense) so the quality team can analyze the nature of the defect. Returning defective product will not delay the replacement part delivery.

ReadyLIFT leveling kit, block kits and lift kit products are NOT intended for off-road abuse. Any abuse or damage as a result of off-road use voids the warranty of the ReadyLIFT product. Exception: ReadyLIFT Jeep SST and Terrain Flex Lift Kits are designed for normal off-road use to complement the Jeep vehicle's off-road capability. All Jeep Lift Kit products are covered under warranty when used in recreational off-road environments.

Wearable components including, but not limited to, shocks, ball joints, heim joints, bushings, and steering extensions, are covered for up to 1-year. Labor, installation, surcharges or any other applicable fees from the original purchase are non-refundable. ReadyLIFT is not responsible for any consequential damage to vehicles.

WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product.
