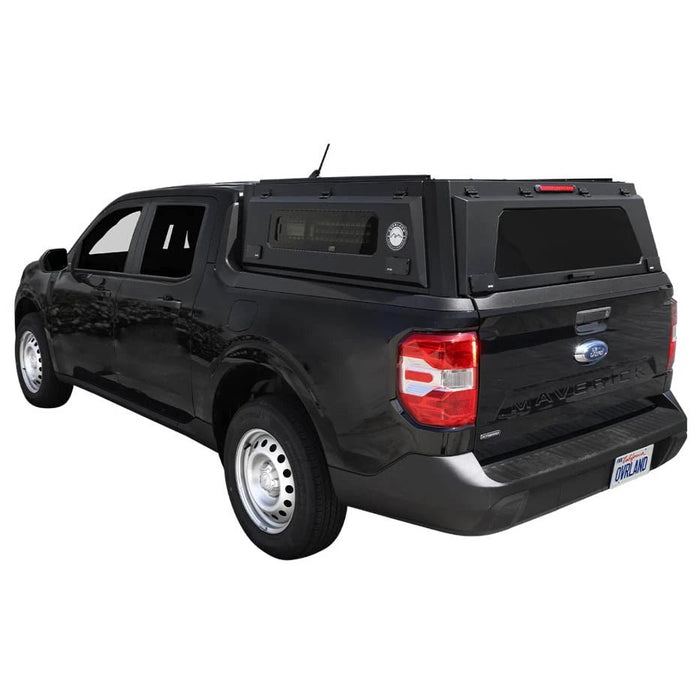

2022–2027 FORD MAVERICK 4.5FT BED – OVS EXPEDITION PRO+ TRUCK CAP WITH FULL WINDOW WING DOORS, MOLLE STORAGE & 3RD BRAKE LIGHT

Introducing the ultimate truck topper for your Ford Maverick — the OVS Expedition Pro+ Truck Cap with Full Window Wing Doors. Elevate your adventures with the perfect blend of rugged durability, unmatched style, and expedition-grade utility. Purpose-fit for the 2022–2027 Ford Maverick 4.5ft bed, this modular marine-grade stainless steel truck cap is engineered for overland travel, work truck use, camping, rooftop tent builds, and secure gear storage — all in one premium platform.

Every detail is engineered for real overland use. Marine-grade 16-gauge stainless steel construction — the thickest material in its class — stands up to the harshest conditions with corrosion resistance that generic aluminum caps can't touch. A two-stage textured black powder coat over electrostatic e-coat protection keeps the cap looking sharp season after season. Full-length wing doors on both sides feature full tempered glass panels with integrated MOLLE storage channels, giving you 360° access to your bed plus direct mounting for tools, first aid kits, recovery gear, and expedition accessories. Sliding side window vents allow controlled airflow, while a pressure air vent manages passive circulation to reduce condensation.

Security features are built into the platform, not bolted on. Heavy-duty lockable latches secure all access points. A reinforced rear security cage protects the rear window from impacts and unauthorized access. MOLLE window cages add another layer of stainless steel protection. Cargo carrying is serious business too — integrated roof rails support 325 lb dynamic / 750 lb static load capacity when equipped with compatible crossbars, making the Pro+ fully rated for rooftop tents, cargo boxes, kayaks, and expedition gear even on the compact Maverick platform. Installation is a simple 1–2 hour no-drill clamping process using included hardware — no permanent modifications, no compromise to your factory warranty.

Key Highlights:

• Purpose-fit for 2022–2027 Ford Maverick 4.5ft bed (Part #70200031)
• Marine-grade 16-gauge stainless steel (thickest in class)
• Full Window Wing Doors with tempered glass on both sides
• Integrated MOLLE-PAL channels inside wing doors
• Rear security cage + MOLLE window cage
• Sliding side windows with integrated vents
• Pressure air vent for passive airflow
• Integrated 3rd brake light for safety

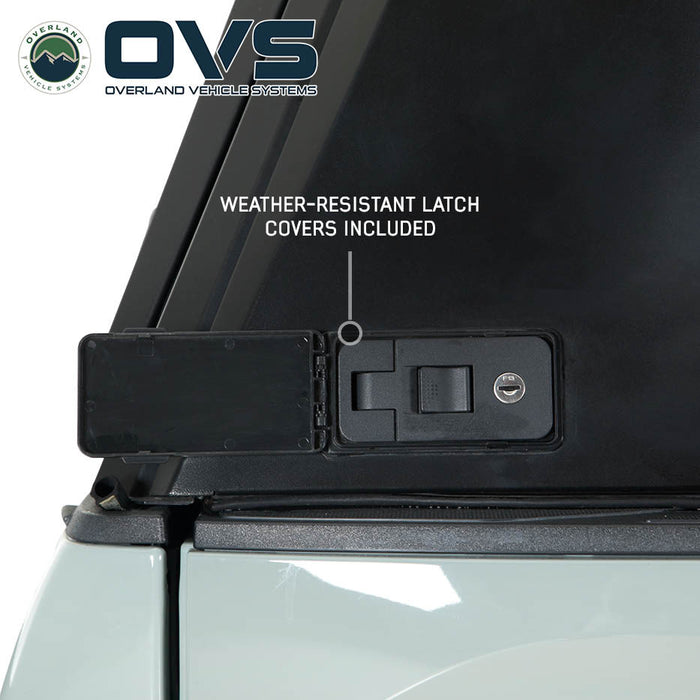

• Heavy-duty lockable latches on all access points
• 5-piece modular construction for easier install
• E-coat + two-stage textured black powder coat
• No-drill clamping installation (1–2 hours)
• Integrated roof rails (325 lb dynamic / 750 lb static with crossbars)
• Compatible with rooftop tents, awnings, and expedition gear
• 122.35 lb cap weight — lightweight for a stainless cap
• Limited Lifetime Warranty

Get ready to haul, explore, and dominate the trail — the OVS Expedition Pro+ is the ultimate upgrade for your Ford Maverick.

Specs

Features

• Marine-Grade 16 GA Stainless Steel: Purpose-built for expedition-grade durability. Marine-grade 16-gauge stainless steel (the thickest material in its class — competitors use 17-20 GA) handles the harshest environments with corrosion resistance that generic aluminum caps can't match.
• True Fit Technology: Vehicle-specific engineering ensures a clean, factory-integrated fit — not a modified universal-fit compromise.

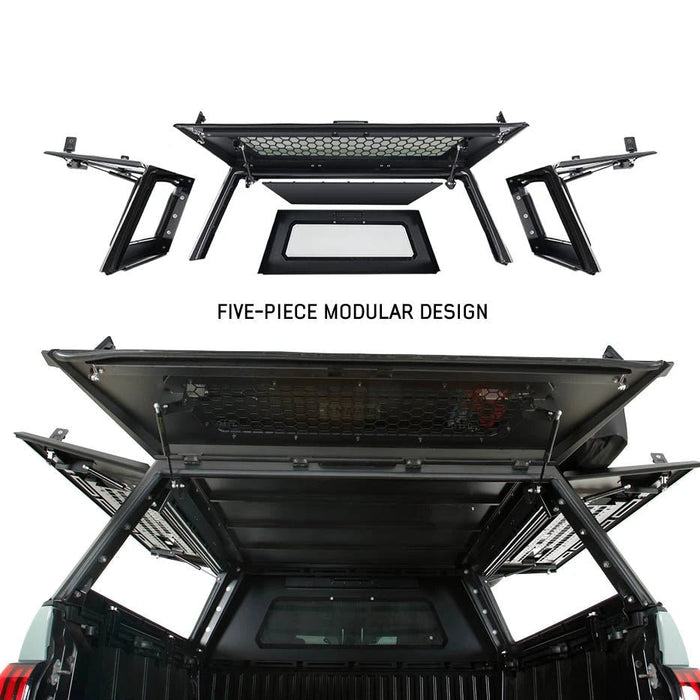

• 5-Piece Modular Design: Ships and assembles in multiple sections for easier transport and installation. One or two people can complete the install in 1–2 hours.

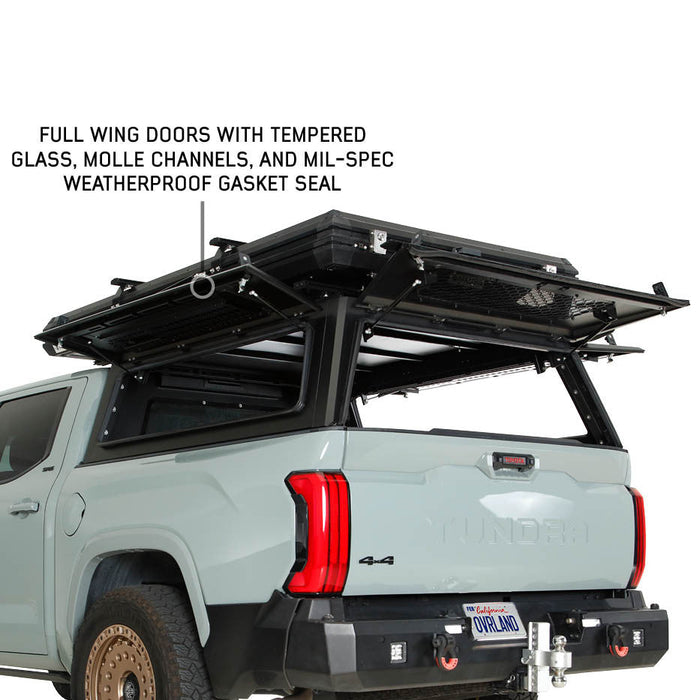

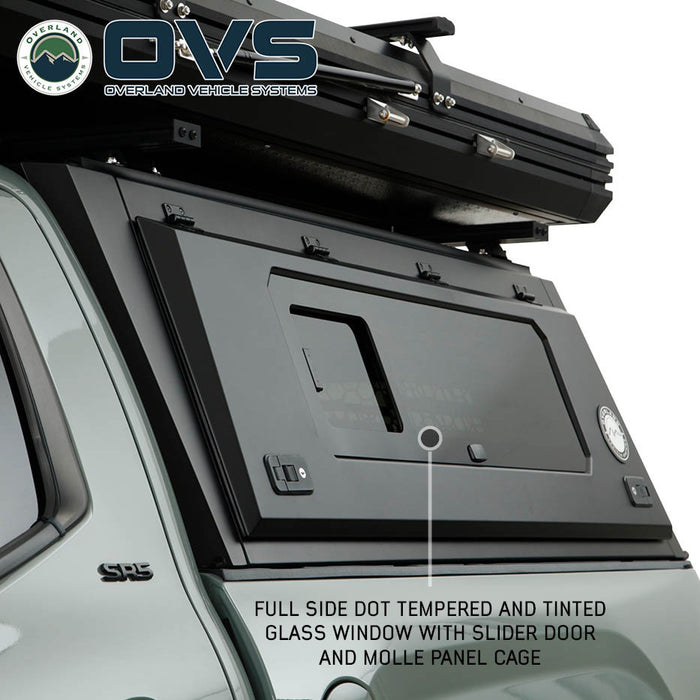

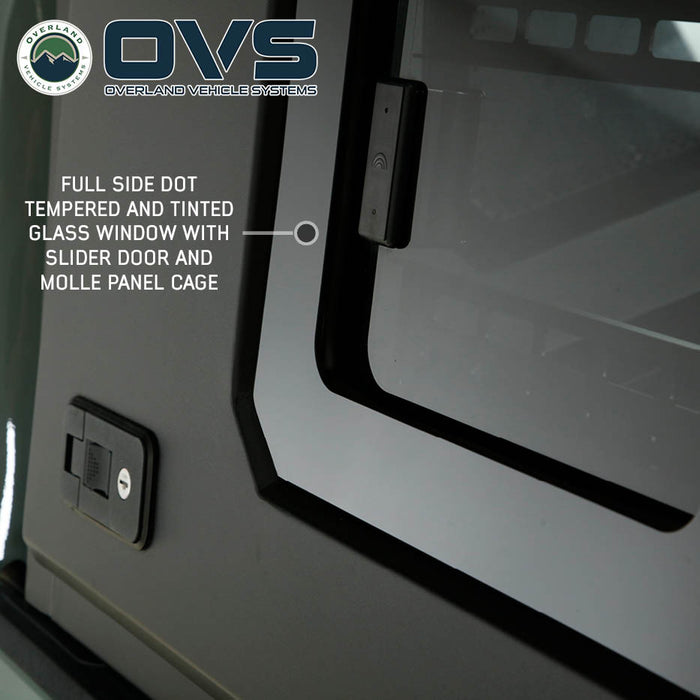

• Full Window Wing Doors: Both side wing doors feature full-length tempered glass windows with heavy-duty gas struts and lockable latches. Open the entire side of your bed for effortless access, or lock down for secure travel.

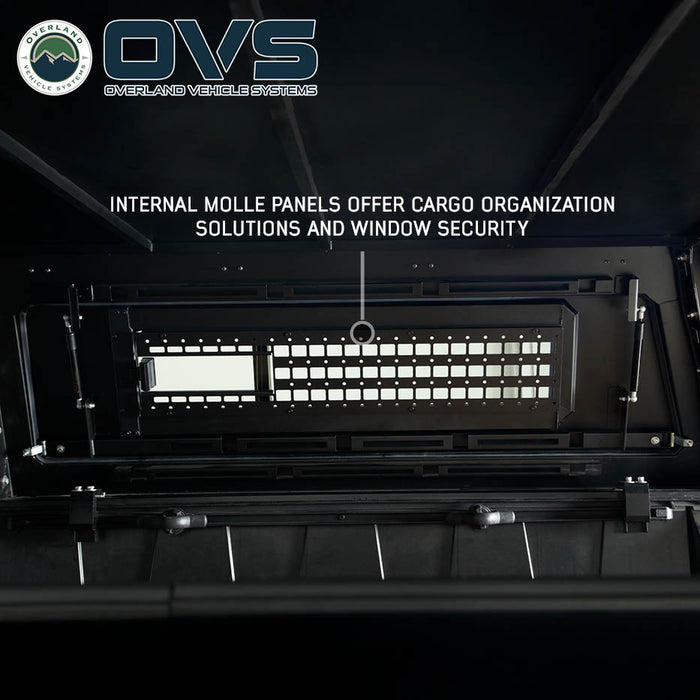

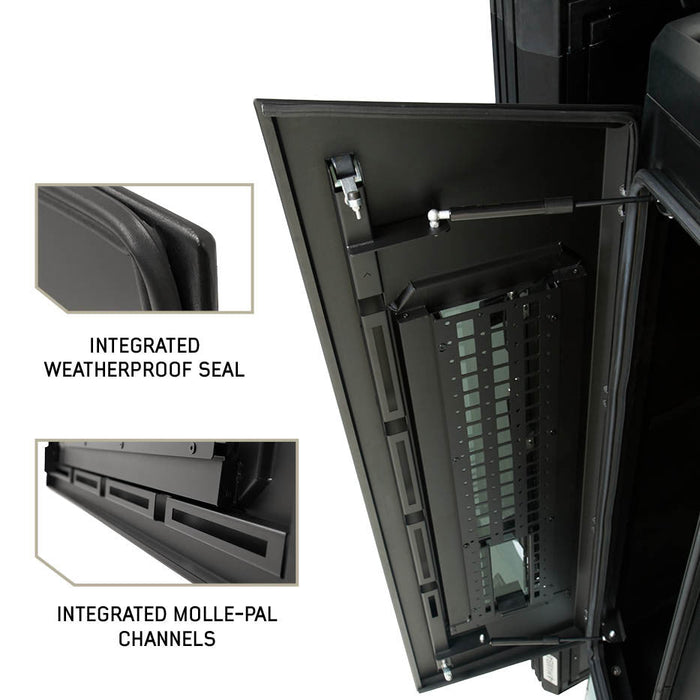

• Integrated MOLLE-PAL Channels: Built directly into the interior panels of the wing doors — mount tools, recovery gear, first aid kits, radios, and trail essentials on the inside of the doors themselves. Each door supports ~15 lbs of mounted accessories.

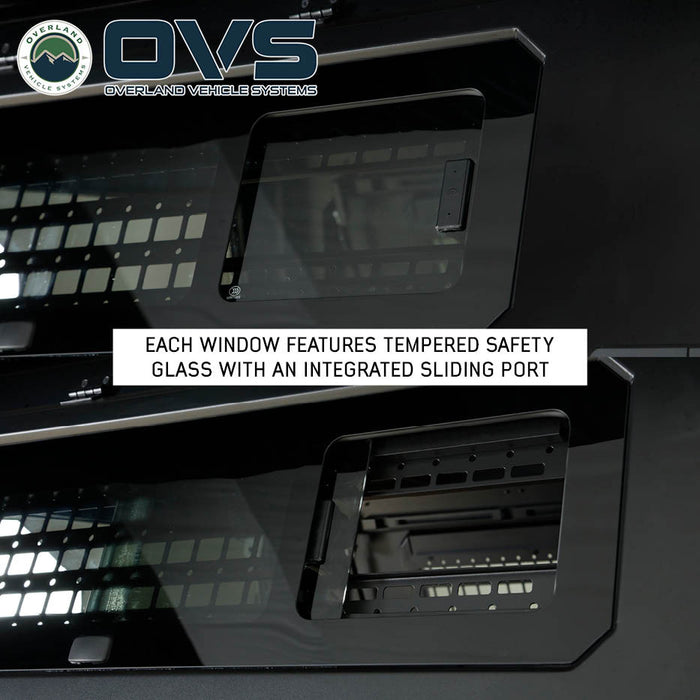

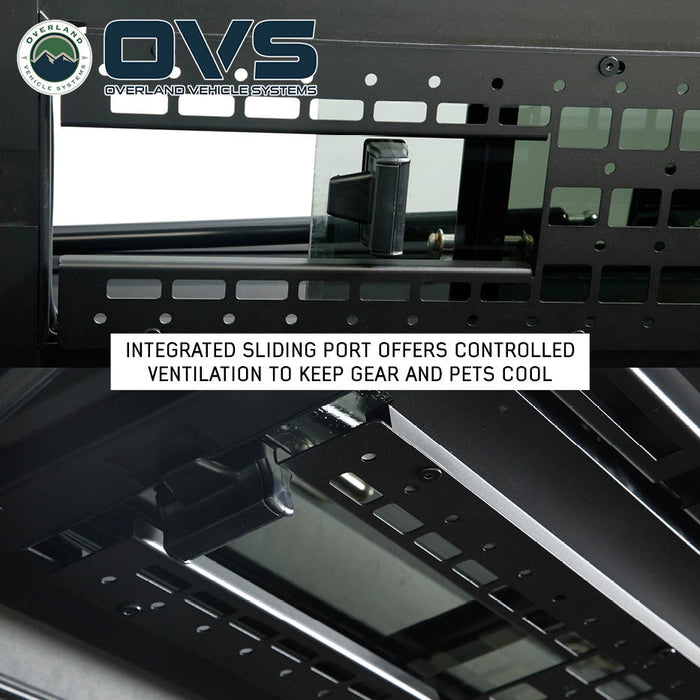

• Sliding Side Window Vents: Controlled airflow through integrated sliding vents in the tempered glass — perfect for warm weather, pets in the bed, or reducing interior heat and condensation.
• Pressure Air Vent: Built-in passive airflow management reduces condensation and helps air escape during panel closing.

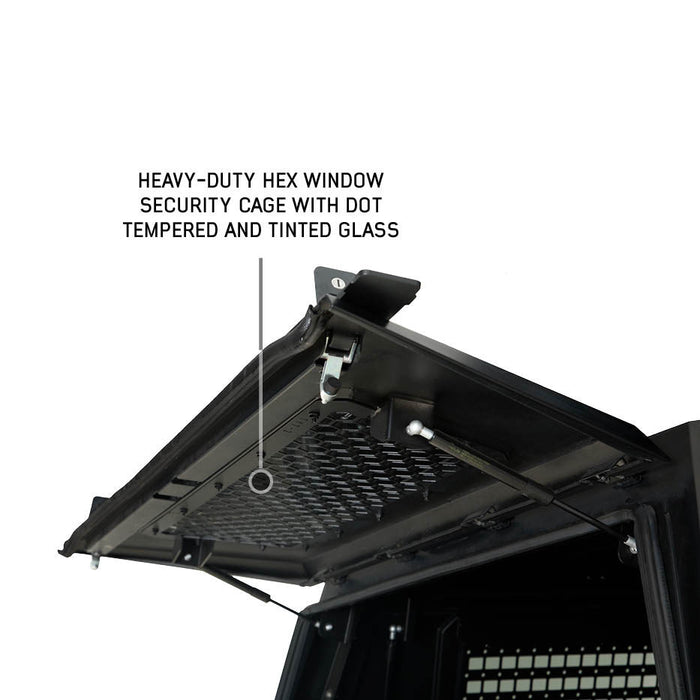

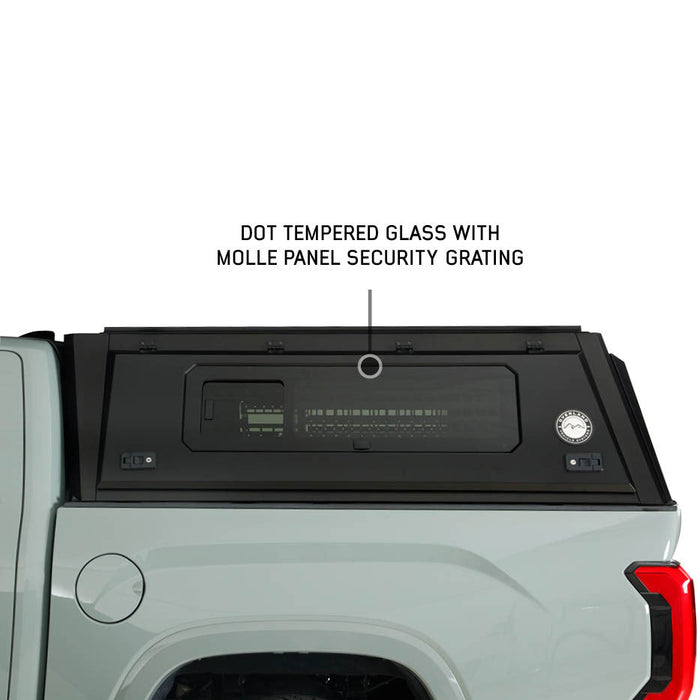

• Rear Security Cage + MOLLE Window Cage: Stainless steel security cages protect the rear window and the MOLLE windows from impact and unauthorized access. Serious security for serious cargo.

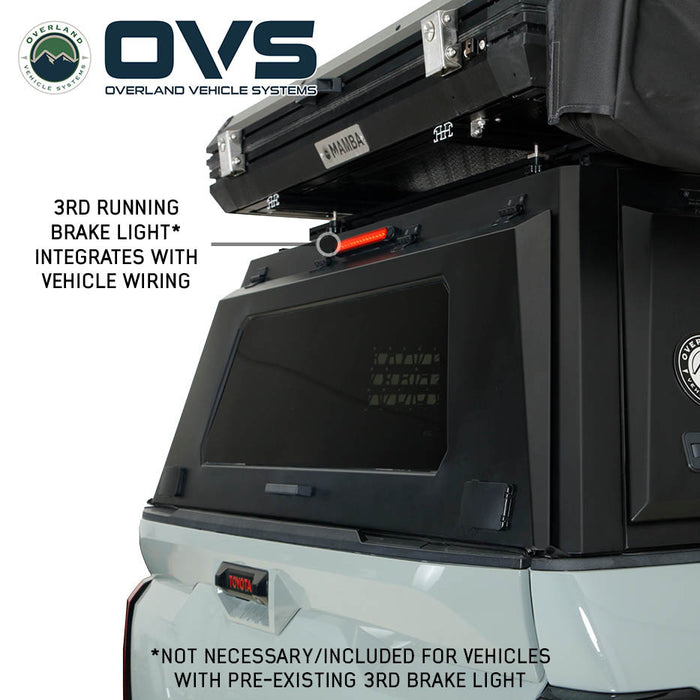

• Integrated 3rd Brake Light: Elevated LED brake light maintains full vehicle safety compliance and improves visibility to following traffic.

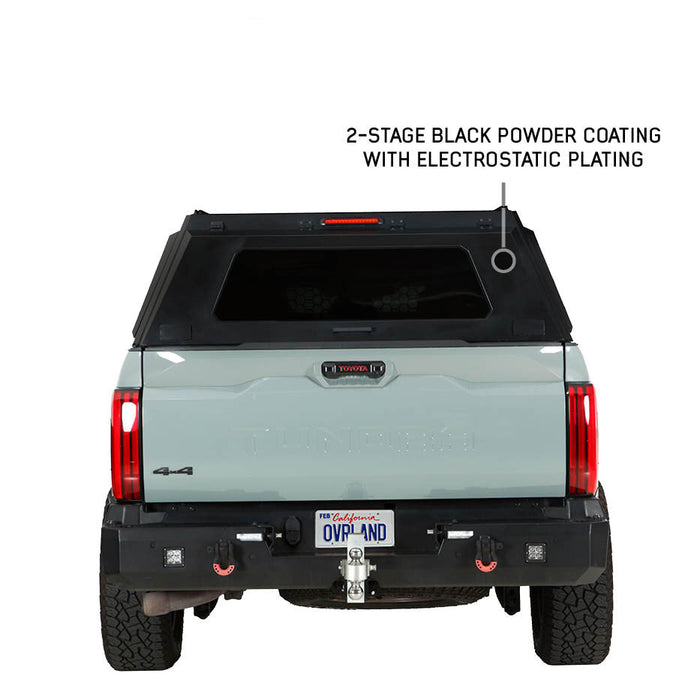

• Two-Stage Textured Powder Coat Finish: E-coat corrosion protection under a two-stage textured black powder coat — resists scratches, UV damage, and chips for long-term durability.

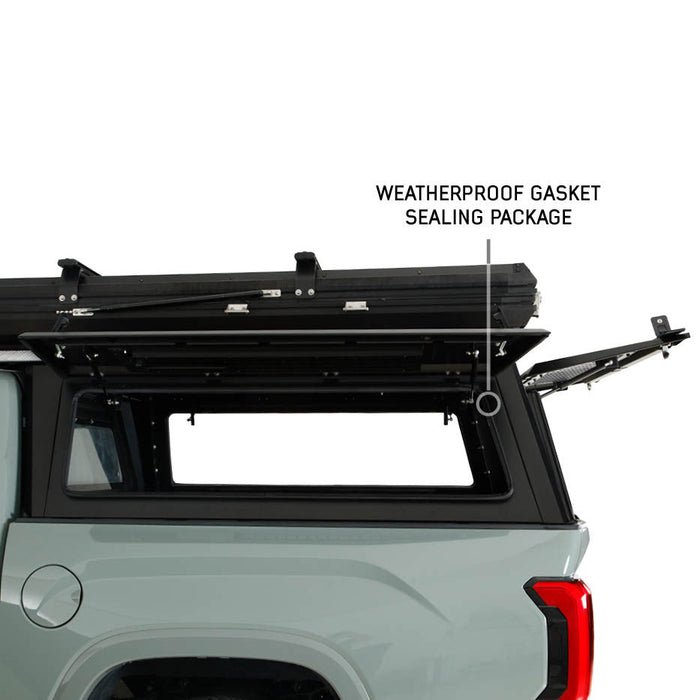

• Waterproof Sealing System: 3M single-bulb perimeter seal around bed rails and bulkhead, plus tailgate bulb seal and butyl tape at critical joints. As dust-tight and weather-tight as an aftermarket truck cap gets.

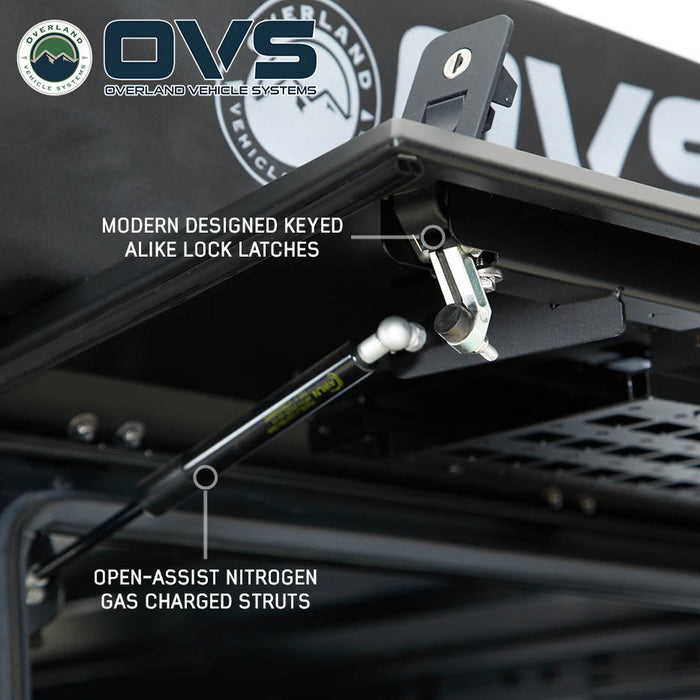

• High-Pressure Gas Struts: Consistent, reliable open-assist performance in demanding environments — from desert heat to backcountry cold.
• Reinforced Heavy-Duty Hinges: Solid hinge construction engineered for years of hard use.

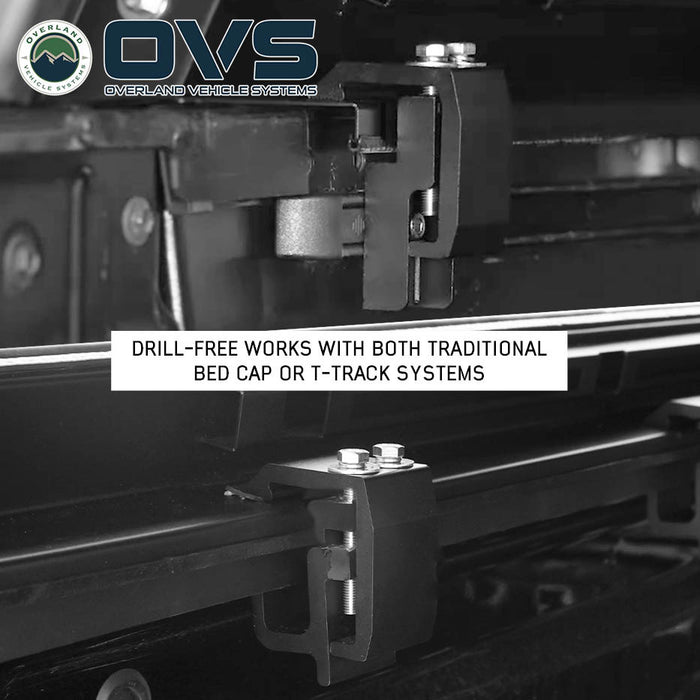

• No-Drill Clamping Installation: Clamps directly to your Maverick's factory bed rails — no drilling, no permanent modifications, no compromise to your factory warranty or resale value.
• Integrated Roof Rails with 19mm T-Slot: Compatible with OVS crossbars (optional) plus a range of aftermarket crossbar systems for mounting rooftop tents, cargo boxes, awnings, and expedition gear.

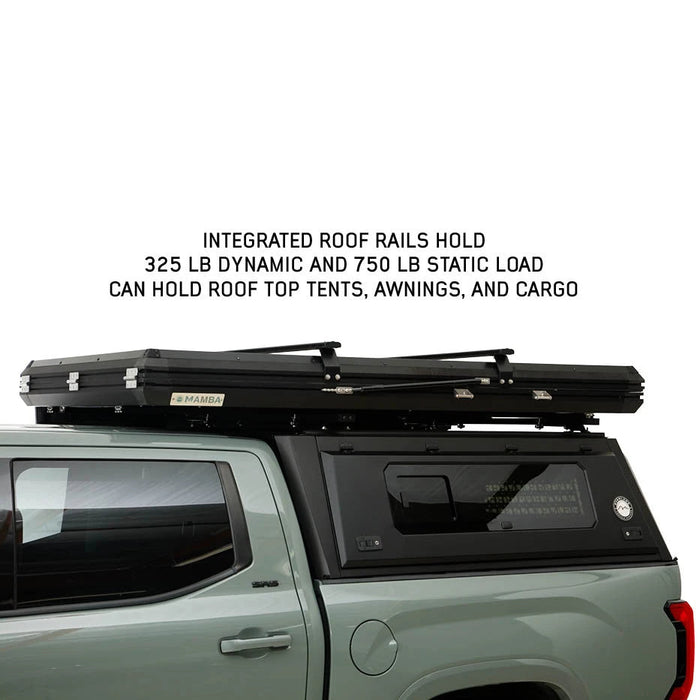

• 325 lb Dynamic / 750 lb Static Load Rating: Fully rated for rooftop tents and heavy overland accessories when paired with compatible crossbars.
• Lightweight for the Class: At 122.35 lbs, the Maverick Pro+ is significantly lighter than full-size Pro+ variants — critical for maintaining the Maverick's excellent payload capacity and fuel economy.
• Limited Lifetime Warranty: Industry-leading long-term structural warranty coverage.

Fitment

Important Fitment Notes:

• Purpose-engineered for the 2022–2027 Ford Maverick with the 4.5ft bed only.
• Compatible with all Ford Maverick configurations — 2WD, 4WD, hybrid, EcoBoost, XL, XLT, Lariat, and Tremor trims

FAQ

• What's the difference between the Pro+ and the standard Expedition? The Pro+ upgrades the standard Expedition with full-window wing doors (both sides feature tempered glass windows the full length of the door), integrated MOLLE-PAL channels inside the wing doors, sliding side window vents, an integrated 3rd brake light, and additional security cages. The base Expedition doesn't include the full glass wing doors or the same level of built-in accessory mounting.
• How is the cap sealed against water and dust? OVS includes a 3M single-bulb seal that installs around the perimeter of the bed rails and bulkhead. The rear hatch has its own bulb seal that compresses against the tailgate when closed. Two pieces of butyl tape are included for the step-down area between the side plastic bed rail and the bulkhead. Note: no truck bed can be completely waterproof — some minimal intrusion may occur, most commonly around the tailgate perimeter.
• Are the roof rails compatible with aftermarket crossbars? The integrated roof rails feature a 19mm T-slot channel and are designed to work with OVS optional crossbars. They're also compatible with various aftermarket crossbar and mounting systems. OVS is progressively testing aftermarket systems and updating the compatibility list.
• How much weight can the roof support? When equipped with OVS crossbars, the roof supports 325 lbs dynamic (while driving) and 750 lbs static (parked) — fully rated for rooftop tents, cargo boxes, and heavy overland gear.
• How much weight can the wing doors hold? The side access doors are designed to support approximately 15 lbs of mounted accessories on the integrated MOLLE panels. This is enough for MOLLE-compatible pouches, first aid kits, tool rolls, radios, and trail essentials while maintaining proper gas strut operation.
• Does the cap have a vent? Yes. The Pro+ features a fixed pressure air vent located on the panel closest to the cab (position varies by model — either above or below the window). The vent promotes airflow, reduces interior condensation, and allows air to escape when closing panels.
• Does the front (cab-side) glass slide open? No. The current design uses a fixed rear window with no drop-down or pass-through accessibility. The sliding vents are on the side windows only.
• Can the cap be opened or locked from inside the bed? No, not currently. The cap cannot be opened or locked from inside the truck bed. OVS is developing internal latch options but the feature is not yet available.
• Is drilling required for installation? For most vehicles, no drilling is required. The Maverick installation uses the no-drill clamping system. Note: some vehicles (like the Tacoma) require a single drilled hole for wiring; verify specific installation requirements in the instructions.
• How long does installation take? Installation takes approximately 1–2 hours with two people. The 5-piece modular design makes handling and mounting easier than one-piece caps.
• Can I install side frame MOLLE panels on the Pro+? No. The Pro+ already includes integrated MOLLE panels in the doors, so the standalone under-side door panels and side frame panels are not compatible. The mounting channels on the Pro+ only accommodate the built-in MOLLE panels, not additional ones.
• Will installing the cap affect my Maverick's fuel economy? The cap adds weight (122.35 lbs) and changes the aerodynamic profile of your Maverick. At highway speeds, some owners report slight fuel economy improvements over an open bed with loose cargo due to reduced drag. Weight impact is minimal but present.
• Is professional installation required? Two or more people are recommended to safely lift and position the modular sections during installation. Experienced DIYers can complete the install with basic hand tools in 1–2 hours, but professional installation is available for those who prefer it.
• What warranty is included? The Expedition Pro+ is backed by OVS's Limited Lifetime Warranty covering manufacturer defects in materials and workmanship for the life of the product.

Warranty

OVS LIMITED LIFETIME WARRANTY

The Overland Vehicle Systems Expedition Pro+ Truck Cap is backed by an industry-best Limited Lifetime Warranty covering manufacturer defects in materials and workmanship for the life of the product. Warranty extends to the original purchaser.

Contact Recon Recovery to initiate a warranty claim.

In the event of a defective product, OVS may request return of the defective product so their quality team can analyze the nature of the defect. OVS is not responsible for consequential damage to vehicles. Labor, installation, and any other applicable fees from the original purchase are non-refundable.
