LOGIQ AIRIQ SD2 – 2-CHANNEL SMART AIR MANAGEMENT PACKAGE WITH BLUETOOTH APP CONTROL, STANDARD-DUTY COMPRESSOR & LIMITED LIFETIME WARRANTY

Take total control of your LOGIQ air suspension system with the AirIQ SD2 Air Management Package — a factory-assembled, 100% pre-tested smart air management kit that transforms any LOGIQ air spring kit (or compatible aftermarket airbag system) into a fully app-controlled, Bluetooth-connected on-board air system. The SD2 is LOGIQ's "sweet spot" AMP — it combines LOGIQ's 2-channel Smart Manifold (same manifold as the premium HD2) with the Standard-Duty 275SD compressor, delivering independent driver/passenger side air control at a mid-tier price point. Whether you're running a 2024 F-350 Tremor with Carli Pathfinder suspension + Full Travel Bags installed at Super Duty Headquarters in Gilbert, AZ (per verified customer review), hooking up a 5th wheel on your GM HD, towing a travel trailer with your Ram or F-150, or simply want best-in-class smart air control for your LOGIQ-equipped truck, the SD2 delivers Bluetooth app control, dual-channel independent corner control for offset loads, and a Standard-Duty compressor that still runs 2x FASTER than competitor compressors.

Every detail is engineered for real-world truck duty. The 2-Channel AirIQ Bluetooth Management System provides independent control of each air spring from the AirIQ App — critical for managing offset loads (one-sided cargo, trailer sway, uneven payloads) where traditional 1-channel systems can't level the truck properly. The LOGIQ 275SD compressor delivers 2.03 CFM at 0 PSI with a 25% duty cycle at 100 PSI and a 150 PSI max output — enough to drive any LOGIQ air spring kit from empty to fully-loaded ride height faster than most competitor compressors. The compressor carries an IP54 ingress protection rating (dust/splash resistant) while all other system components are IP67-rated (fully dust-tight and submersible to 1m) — ready for real-world truck environments including off-road, overland, and work-truck duty. The system is universally compatible with ANY LOGIQ air spring kit (Ram 1500/2500/3500, Ford F-150, Ford Super Duty, GM 1500, GM HD 2500/3500, Toyota Tundra) AND compatible aftermarket helper bags (verified by customer running Full Travel Bags).

Installation is streamlined by LOGIQ's factory-assembled, pre-tested approach. The kit ships with the AirIQ SD2 Management System pre-installed with a 20ft wiring harness, 4 Easy Frame Mounting Brackets with hardware, 20ft of 1/4" air line, fuse taps, and 18ft of wire loom — everything needed for a clean install. The included Easy Frame Mounting Brackets simplify the mounting process compared to adhoc fabrication. The AirIQ App (FREE download for iOS and Android) connects via Bluetooth and provides:

• Real-time pressure monitoring (left + right)
• Manual inflation/deflation (each side independently)
• Trailer presets for one-tap towing setup
• Pressure differential alerts
• "Intuitive" controls per verified customer review

Pair the SD2 with the optional AirIQ Remote (sold separately, $149.95) for app-free quick-access control from the driver's seat. Add the optional 2-Gallon Aluminum Boost Tank (sold separately, $224.95) for faster lifts and sustained air delivery.

Key Highlights:

• 2-Channel Smart Manifold (independent L/R air control)
• Standard-Duty 275SD compressor
• 2.03 CFM at 0 PSI
• 25% duty cycle at 100 PSI
• 150 PSI maximum output
• 12V operation, 30 Amp current draw
• IP54 compressor / IP67 all other components
• Bluetooth AirIQ App control (FREE iOS + Android)
• 20ft wiring harness pre-installed
• 20ft 1/4" air line included
• 4 Easy Frame Mounting Brackets included
• Fuse taps + 18ft wire loom included
• Factory-assembled and pre-tested
• Universal compatibility with ALL LOGIQ air spring kits
• Compatible with select aftermarket helper bags
• Optional AirIQ Remote (sold separately)
• Optional 2-Gallon Boost Tank (sold separately)
• 2x FASTER than competitor compressors
• Limited Lifetime Warranty

Specs

Features

• 2-Channel Smart Manifold: The SD2's dual-channel manifold provides independent control of the driver and passenger side air springs. This is the SAME 2-channel smart manifold used in the premium AirIQ HD2 — only the compressor differs between SD2 and HD2. Independent corner control is critical for managing offset loads (one-sided cargo, uneven trailer tongue weight, side winds).
• Offset Load Management: Verified use case: when you load one side of your truck bed heavier than the other, a 1-channel system can only inflate both sides equally — your truck sits unlevel. The SD2's 2-channel manifold lets you add more air to the heavier side, keeping the truck level under offset loads. Essential for commercial, overland, and towing applications.
• Standard-Duty 275SD Compressor: LOGIQ's Standard-Duty compressor delivers 2.03 CFM at 0 PSI with a 25% duty cycle at 100 PSI. "Standard" means solid, reliable performance — the compressor is still 2x FASTER than competitor compressors on the market. Suitable for 95% of towing and load-leveling applications.
• 150 PSI Maximum Output: Matches the maximum pressure rating of all LOGIQ air spring kits (which have 5-150 PSI operating range). Drives any LOGIQ kit from empty to fully-loaded.
• 12V Operation, 30 Amp Current Draw: Standard automotive 12V electrical system. The 30A current draw requires a 40A fused circuit (included fuse taps are rated for the application).
• IP54 Compressor Rating: The compressor is dust-protected and splash-resistant — appropriate for frame-mounted installation under the truck, exposed to road spray and dust.
• IP67 All Other Components: The AirIQ Smart Manifold, control module, wiring connectors, and other electronics are IP67-rated — fully dust-tight AND submersible to 1 meter depth. Overbuilt for truck duty.
• AirIQ App (Bluetooth): FREE download for iOS and Android. Verified customer: "the Bluetooth controls are so incredibly simple and intuitive." App features:
  • Real-time pressure display (left + right independent)
  • Manual inflation/deflation (each side independently)
  • Trailer presets (save pressure settings per trailer, one-tap application)
  • Pressure differential alerts
  • System diagnostics
• Factory-Assembled & Pre-Tested: Every SD2 ships pre-assembled and tested for guaranteed performance. No field assembly, no plumbing from scratch, no manifold connections to fabricate.
• 20ft Wiring Harness Pre-Installed: The wiring harness is pre-installed on the AirIQ Management System and includes the 20-foot run from the compressor/manifold location to the under-dash fuse tap location. Simplifies install significantly.
• Easy Frame Mounting Brackets: 4 pre-fabricated frame mounting brackets simplify the compressor and manifold mounting process. No fabrication required — the brackets locate to common frame mounting points on most trucks.
• 20ft of 1/4" Air Line + 18ft of Wire Loom: Enough air line to reach from the compressor/manifold location to both air springs on most truck installations. Enough wire loom to professionally finish the wiring routing.
• Fuse Taps Included: Fuse taps for connecting the AirIQ to a 12V ignition-switched (or always-on) power source via your truck's fuse box. No need to run power directly to the battery.
• Universal Compatibility: The AirIQ SD2 is compatible with ALL LOGIQ air spring kits in the catalog:
  • Ram 1500 (89-11090)
  • Ram 2500 HD (89-12140)
  • Ram 3500 (88-13130)
  • Ford F-150 2009-2014 (88-21090)
  • Ford F-150 2015-2027 (88-21150)
  • Ford Super Duty 2011-2016 (88-23110)
  • Ford Super Duty 2017-2022 (88-23170)
  • Ford Super Duty 2023-2027 (88-23230)
  • GM 1500 2007-2018 (88-31070)
  • GM 1500 2019-2027 (88-31190)
  • GM HD 2011-2019 (88-33110)
  • GM HD 2020-2027 (88-33200)
  • Toyota Tundra 2007-2021 (88-52070)
• Compatible with Select Aftermarket Helper Bags: Verified customer review confirms compatibility with Carli Full Travel Bags (3rd party airbags on a 2024 F-350 Tremor build). The AirIQ system can be adapted to drive select aftermarket helper bag kits.
• Factory-Tuned Pressure Sensors: The 2-channel manifold includes integrated pressure sensors (one per channel) that monitor driver and passenger side pressures independently and report back to the app and remote.
• Optional AirIQ Remote (Sold Separately): 2-channel wireless remote (part 50-21200, $149.95) for app-free quick-access control from the driver's seat. Perfect for drivers who want to adjust pressure on the fly without pulling out their phone.
• Optional 2-Gallon Aluminum Boost Tank (Sold Separately): Powder-coated aluminum air tank (part 50-10200, $224.95) for faster lifts and sustained air delivery. The tank acts as a reserve that lets the compressor keep up with heavy air demand.
• Limited Lifetime Warranty: LOGIQ AirIQ systems come with a Limited Lifetime Warranty against defects in materials and workmanship for the original purchaser.

What's Included

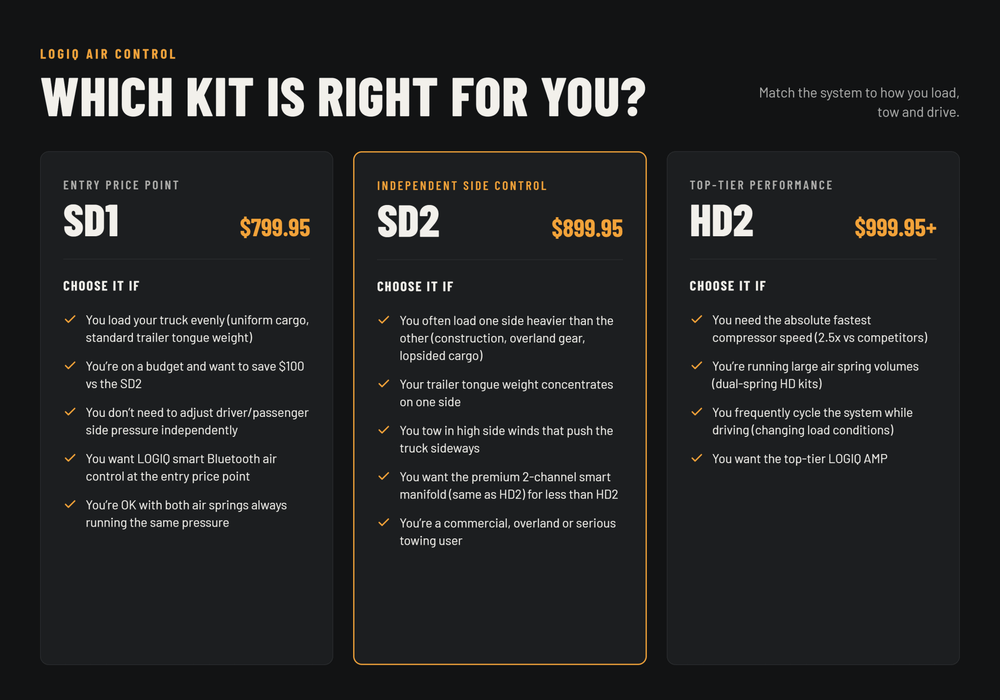

AirIQ Comparison Table

FAQ

• What's the difference between the AirIQ SD1, SD2, and HD2? All three provide smart Bluetooth app/remote control and 150 PSI max output. Key differences:
  • SD1 ($799.95): 1-channel manifold (BOTH sides inflate/deflate together) + Standard-Duty compressor (2x faster than competitors). Simplest, lowest price.
  • SD2 ($899.95): 2-channel manifold (independent L/R control) + Standard-Duty compressor (2x faster). "Sweet spot" — SAME manifold as HD2 at lower price.
  • HD2 ($999.95+): 2-channel manifold (independent L/R control) + Heavy-Duty compressor (2.5x faster than competitors). Fastest, premium tier.
• What does "2-channel manifold" mean? The manifold is the valve block that controls air flow to the air springs. A 1-channel manifold has one valve pair that inflates/deflates BOTH air springs simultaneously (they must always be at the same pressure). A 2-channel manifold has independent valve pairs for the driver and passenger sides, allowing you to inflate one side more than the other. This is critical for managing offset loads.
• Why do I need independent L/R control? Offset loads. If you load one side of your bed heavier than the other (common with construction materials, lopsided cargo, trailer tongue weight on one side, or wind blowing against one side of a towed trailer), a 1-channel system can only inflate both sides equally. Your truck sits unlevel because one side is sagging. The 2-channel SD2 lets you add more air to the sagging side, keeping the truck level under offset loads. Essential for serious towing, commercial, and overland use.
• What's the compressor duty cycle mean? Duty cycle is the percentage of time the compressor can run before needing to cool down. The SD2's 25% duty cycle at 100 PSI means it can run for 25% of any 60-minute period before needing a cool-down break. In practice: inflate your bags to desired pressure (typically 60-100 PSI for towing), compressor shuts off, you're done. Duty cycle only becomes limiting if you're constantly cycling the system (e.g., severe off-road situations with constant pressure adjustments).
• How much faster is the SD2 compressor than competitors? The LOGIQ 275SD compressor runs 2x faster than competitor compressors from traditional helper bag brands. If a competitor takes 60 seconds to inflate from 0 to 80 PSI, the SD2 does it in 30 seconds. Fast enough for all real-world towing and load-leveling applications.
• What about the HD2 compressor? The HD2 compressor runs 2.5x faster than competitors. If you need the absolute fastest system (large air spring volumes, frequent cycling, fast adjustments during towing), the HD2 is worth the ~$100 upgrade. For 95% of users, the SD2's 2x speed is more than sufficient.
• Does the SD2 work with any LOGIQ air spring kit? Yes. The AirIQ SD2 is universally compatible with ALL LOGIQ air spring kits across Ram, Ford F-150, Ford Super Duty, GM 1500, GM HD, and Toyota Tundra platforms. The air spring kits have identical air connections regardless of truck model.
• Does the SD2 work with aftermarket helper bags (Firestone, Air Lift, Carli Full Travel Bags, etc.)? Verified compatibility with Carli Full Travel Bags (customer review documents 2024 F-350 Tremor build with SD2 + Carli Full Travel Bags). Compatibility with Firestone, Air Lift, and PacBrake helper bags depends on the specific bag model and air connection style. Contact us for compatibility verification before ordering if you're pairing with non-LOGIQ bags.
• Can I upgrade from the Manual Inflation Kit to the SD2 later? Yes. The Manual Inflation Kit (included free with every LOGIQ air spring kit) is a simple airline + Schrader valve setup. You can upgrade to the SD2 at any time by removing the Manual Inflation Kit components and installing the SD2 in its place. The air springs themselves don't change.
• What's included in the box? (1) AirIQ SD2 Air Management System with 20ft wiring harness pre-installed, (4) Frame Mounting Brackets and Hardware, (1) Installation Kit: 20ft 1/4" air line, fuse taps, 18ft wire loom. Does NOT include: 2-Gallon Boost Tank (sold separately), AirIQ Remote (sold separately).
• What's the AirIQ App like? FREE download for iOS and Android. Verified customer review: "the Bluetooth controls are so incredibly simple and intuitive." Features include real-time pressure monitoring (left + right), manual inflate/deflate, trailer presets, pressure differential alerts, and system diagnostics.
• Do I need the AirIQ Remote? No — the AirIQ App on your phone works great as the primary control interface. But the optional AirIQ Remote ($149.95) adds a dash-mounted or steering-wheel-mounted wireless control for app-free quick access. Nice to have for drivers who don't want to grab their phone every time they want to adjust pressure.
• Do I need the 2-Gallon Boost Tank? No — the SD2 compressor can drive any LOGIQ air spring kit without a boost tank. But the optional 2-Gallon Aluminum Boost Tank ($224.95) stores extra pre-pressurized air, enabling faster lifts and reducing compressor cycling. Recommended for heavy-use scenarios (frequent trailer hookups, constant pressure adjustments, multiple air spring systems on one truck).
• What's the IP54 vs IP67 rating about? Ingress Protection ratings describe dust and water resistance. IP54 means dust-protected (dust can enter but won't damage) and splash-resistant from any direction. IP67 means fully dust-tight (zero dust ingress) and submersible to 1 meter depth for 30 minutes. The compressor is IP54 (appropriate for frame mounting with road spray exposure). All other components (manifold, control module, connectors) are IP67 (overbuilt for truck duty, suitable for exposed mounting).
• What's the current draw and electrical requirements? 12V operation, 30 Amp current draw at full compressor load. The included fuse taps are rated for the application. Install on a 40A circuit for safety margin. The compressor only draws 30A when actively running (which is typically brief intervals during inflation).
• Does the SD2 compressor have voltage monitoring? Verified customer review on the HD2 (which uses the same compressor platform family) notes internal voltage monitoring that prevents the compressor from running when the vehicle is off (below 13V) and only operates when the alternator is running (above 13.3V). This eliminates the need for a keyed power relay. Verify SD2 has this same feature — likely yes based on platform commonality.
• How long does the AirIQ SD2 take to install? Expect 2–3 hours for AirIQ installation on top of the base air spring kit install. The pre-installed wiring harness, pre-assembled manifold+compressor, and included frame mounting brackets speed up the install significantly compared to competitor systems that require more fabrication.
• Where do I mount the AirIQ SD2? The compressor and manifold are typically frame-mounted on the inside of the frame rail, protected from direct road debris. The included Easy Frame Mounting Brackets locate to common frame mounting points. Routing varies by truck — refer to the included installation instructions and LOGIQ's install videos (search YouTube: "LOGIQ AirIQ install").
• Where do I connect the wiring? The 20ft wiring harness runs from the compressor/manifold location to the fuse tap location (typically the under-dash fuse panel). The included fuse taps connect to an ignition-switched fuse (so the compressor doesn't run with the ignition off) or an always-on fuse (depending on installation preference). If you want ignition-switched behavior without a dedicated relay, use an ignition-switched fuse (verify SD2 compressor has built-in voltage monitoring that provides this behavior natively).
• Can I use the SD2 to inflate tires or air tools? Not out of the box. The SD2 is engineered to drive air springs through the manifold's air spring outputs. However, the system CAN be plumbed to add a tire inflation chuck via additional fittings (not included). Verified customer review expressed interest in this capability: "Looking forward to expanding this system to include the capability of inflating tires or just blowing my clothes off after a long day in the dirt!" Contact LOGIQ for guidance on tire inflation adapters.
• What's the warranty? LOGIQ AirIQ systems come with a Limited Lifetime Warranty against defects in materials and workmanship for the original purchaser. One of the strongest warranties in the air management category.

Warranty

LOGIQ LIMITED LIFETIME WARRANTY

The LOGIQ AirIQ SD2 is backed by LOGIQ's Limited Lifetime Warranty against defects in materials and workmanship for the original purchaser. Compressor, manifold, control module, pressure sensors, wiring harness, frame mounting brackets, and included components are covered for the life of the vehicle (original owner).

Warranty does not cover damage from accidents, improper installation, exceeding voltage/current ratings, exceeding operating pressure limits (150 PSI max), or use outside of the intended air spring/helper bag application. Contact Recon Recovery to initiate a warranty claim.
