LOGIQ AIRIQ SD1 – 1-CHANNEL SMART AIR MANAGEMENT PACKAGE WITH BLUETOOTH APP CONTROL, STANDARD-DUTY COMPRESSOR & LIMITED LIFETIME WARRANTY

Take smart control of your LOGIQ air suspension system with the AirIQ SD1 Air Management Package — LOGIQ's most affordable Bluetooth-controlled AMP solution, factory-assembled and 100% pre-tested for guaranteed performance. The SD1 is LOGIQ's budget-tier AMP — it combines a 1-channel Smart Manifold (parallel control of both air springs) with the Standard-Duty 275SD compressor, delivering reliable app-controlled on-board air at the lowest price point in the AirIQ lineup. Whether you're pulling a 36ft bumper-pull trailer behind your Ford F-350 (per verified customer review that documents outstanding LOGIQ customer service), hauling with your Silverado 1500 Z71, towing a travel trailer with your Tundra, running a Ram 1500 work truck, or simply want smart Bluetooth air control at a price-conscious entry point, the SD1 delivers premium app connectivity, a Standard-Duty compressor that still runs 2x FASTER than competitor compressors, and the same bulletproof IP67-rated electronics as the higher-tier SD2 and HD2.

Every detail is engineered for real-world truck duty. The 1-Channel AirIQ Bluetooth Management System provides parallel control of two air springs from the AirIQ App — both air springs inflate and deflate together at the same pressure. This is the simpler, lower-cost approach vs the 2-channel SD2/HD2 systems, and it's exactly what most users need for standard load leveling (uniform cargo loads, standard trailer towing without side-to-side lean). The included Tee Fitting splits air output from the single-channel manifold to drive both the driver and passenger air springs. The LOGIQ 275SD compressor delivers 2.03 CFM at 0 PSI with a 25% duty cycle at 100 PSI and a 150 PSI max output — the SAME compressor used in the mid-tier SD2 (only the manifold channels differ between SD1 and SD2). The compressor carries an IP54 ingress protection rating (dust/splash resistant) while all other system components are IP67-rated (fully dust-tight and submersible to 1m) — ready for real-world truck duty.

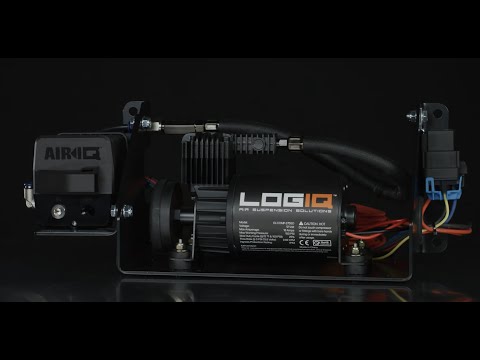

Installation is streamlined by LOGIQ's factory-assembled, pre-tested approach. The kit ships with the AirIQ SD1 Management System pre-installed with a 20ft wiring harness, 4 Easy Frame Mounting Brackets with hardware, 20ft of 1/4" air line, a Tee Fitting (unique to SD1 for splitting air output to both springs), fuse taps, and 18ft of wire loom — everything needed for a clean install. The AirIQ App (FREE download for iOS and Android) connects via Bluetooth and provides real-time pressure monitoring, manual inflate/deflate, and trailer presets. LOGIQ's industry-leading customer service is universally praised across verified reviews — one 36ft trailer-towing F-350 customer documents a module replacement experience with LOGIQ's "Frank" that resolved an issue overnight: "I will always buy LogIQ for trucks in the future."

Pair the SD1 with the optional AirIQ Remote (sold separately, $149.95) for app-free quick-access control from the driver's seat. Add the optional 2-Gallon Aluminum Boost Tank (sold separately, $224.95) for faster lifts and sustained air delivery. The SD1 is universally compatible with ANY LOGIQ air spring kit (Ram 1500/2500/3500, Ford F-150, Ford Super Duty, GM 1500, GM HD 2500/3500, Toyota Tundra) AND compatible aftermarket helper bags.

Key Highlights:

• 1-Channel Smart Manifold (parallel control of both air springs)
• Standard-Duty 275SD compressor
• 2.03 CFM at 0 PSI
• 25% duty cycle at 100 PSI
• 150 PSI maximum output
• 12V operation, 30 Amp current draw
• IP54 compressor / IP67 all other components
• Bluetooth AirIQ App control (FREE iOS + Android)
• 20ft wiring harness pre-installed
• 20ft 1/4" air line included
• 4 Easy Frame Mounting Brackets included
• Tee Fitting included (splits air output to both springs — unique to SD1)
• Fuse taps + 18ft wire loom included
• Factory-assembled and pre-tested
• Universal compatibility with ALL LOGIQ air spring kits
• Compatible with select aftermarket helper bags
• Optional AirIQ Remote (sold separately)
• Optional 2-Gallon Boost Tank (sold separately)
• 2x FASTER than competitor compressors
• Legendary LOGIQ customer service (verified module replacement overnight)
• Limited Lifetime Warranty
• LOGIQ'S MOST AFFORDABLE AIRIQ OPTION — $100 less than SD2

Specs

Features

• 1-Channel Smart Manifold: The SD1's single-channel manifold provides parallel control of both air springs — both sides inflate and deflate together at the same pressure. The included Tee Fitting splits air output from the single-channel manifold to drive both the driver and passenger air springs simultaneously. Simpler plumbing, lower cost.
• When 1-Channel is Enough: For standard load leveling applications where you're loading your truck evenly (uniform cargo, standard trailer tongue weight, no significant offset loads), 1-channel control is all you need. Most daily towing and hauling applications fall into this category — the SD1 saves $100 vs the SD2 without compromising load-leveling capability.
• Standard-Duty 275SD Compressor: LOGIQ's Standard-Duty compressor delivers 2.03 CFM at 0 PSI with a 25% duty cycle at 100 PSI. "Standard" means solid, reliable performance — the compressor is still 2x FASTER than competitor compressors on the market. SAME compressor as the mid-tier SD2 — only the manifold channels differ.
• 150 PSI Maximum Output: Matches the maximum pressure rating of all LOGIQ air spring kits.
• 12V Operation, 30 Amp Current Draw: Standard automotive 12V electrical system. The 30A current draw requires a 40A fused circuit (included fuse taps are rated for the application).
• IP54 Compressor Rating: The compressor is dust-protected and splash-resistant.
• IP67 All Other Components: The AirIQ Smart Manifold, control module, wiring connectors, and other electronics are IP67-rated — fully dust-tight AND submersible to 1 meter depth. Overbuilt for truck duty, SAME IP rating as premium SD2 and HD2.
• AirIQ App (Bluetooth): FREE download for iOS and Android. Features include:
  • Real-time pressure display
  • Manual inflation/deflation
  • Trailer presets (save pressure settings per trailer, one-tap application)
  • System diagnostics
• Factory-Assembled & Pre-Tested: Every SD1 ships pre-assembled and tested for guaranteed performance. No field assembly, no plumbing from scratch, no manifold connections to fabricate.
• 20ft Wiring Harness Pre-Installed: The wiring harness is pre-installed on the AirIQ Management System and includes the 20-foot run from the compressor/manifold location to the under-dash fuse tap location.
• Easy Frame Mounting Brackets: 4 pre-fabricated frame mounting brackets simplify the compressor and manifold mounting process. SAME brackets as SD2 and HD2 — commonality across the AirIQ lineup.
• Included Tee Fitting: The Tee Fitting is unique to the SD1 package — it splits the single-channel manifold's air output into two legs, one going to each air spring. The SD2 and HD2 don't need this because each spring has its own manifold channel.
• 20ft of 1/4" Air Line + 18ft of Wire Loom: Enough air line to reach from the compressor/manifold location to both air springs on most truck installations.
• Fuse Taps Included: For connecting the AirIQ to a 12V power source via your truck's fuse box.
• Universal Compatibility: The AirIQ SD1 is compatible with ALL LOGIQ air spring kits in the catalog:
  • Ram 1500 (89-11090)
  • Ram 2500 HD (89-12140)
  • Ram 3500 (88-13130)
  • Ford F-150 2009-2014 (88-21090)
  • Ford F-150 2015-2027 (88-21150)
  • Ford Super Duty 2011-2016 (88-23110)
  • Ford Super Duty 2017-2022 (88-23170)
  • Ford Super Duty 2023-2027 (88-23230)
  • GM 1500 2007-2018 (88-31070)
  • GM 1500 2019-2027 (88-31190)
  • GM HD 2011-2019 (88-33110)
  • GM HD 2020-2027 (88-33200)
  • Toyota Tundra 2007-2021 (88-52070)
• Compatible with Select Aftermarket Helper Bags: The AirIQ system can be adapted to drive select aftermarket helper bag kits (Firestone, Air Lift, Carli, PacBrake — compatibility varies by specific model).
• Factory-Tuned Pressure Sensor: The 1-channel manifold includes an integrated pressure sensor that monitors system pressure and reports back to the app and remote.
• Optional AirIQ Remote (Sold Separately): 2-channel wireless remote (part 50-21200, $149.95). Note: the 2-channel remote will function with the 1-channel SD1 — the remote itself can control up to 2 channels, but only 1 channel will be active with the SD1.
• Optional 2-Gallon Aluminum Boost Tank (Sold Separately): Powder-coated aluminum air tank (part 50-10200, $224.95) for faster lifts and sustained air delivery.
• Legendary LOGIQ Customer Service: Verified customer review documents outstanding support experience: F-350 owner with 36ft bumper-pull trailer had remote module stop working, LOGIQ customer service rep "Frank" (also known as Frankie Acuna, named in multiple other LOGIQ product reviews) troubleshot via email, then replaced the unit and shipped overnight. "I run a business and appreciate good customer service... I will always buy LogIQ for trucks in the future."
• Limited Lifetime Warranty: LOGIQ AirIQ systems come with a Limited Lifetime Warranty against defects in materials and workmanship for the original purchaser.
• LOGIQ's Most Affordable AMP: At $799.95, the SD1 is the entry point into LOGIQ's smart air management lineup — $100 less than the SD2 and $200 less than the HD2.

What's Included

AirIQ Comparison Table

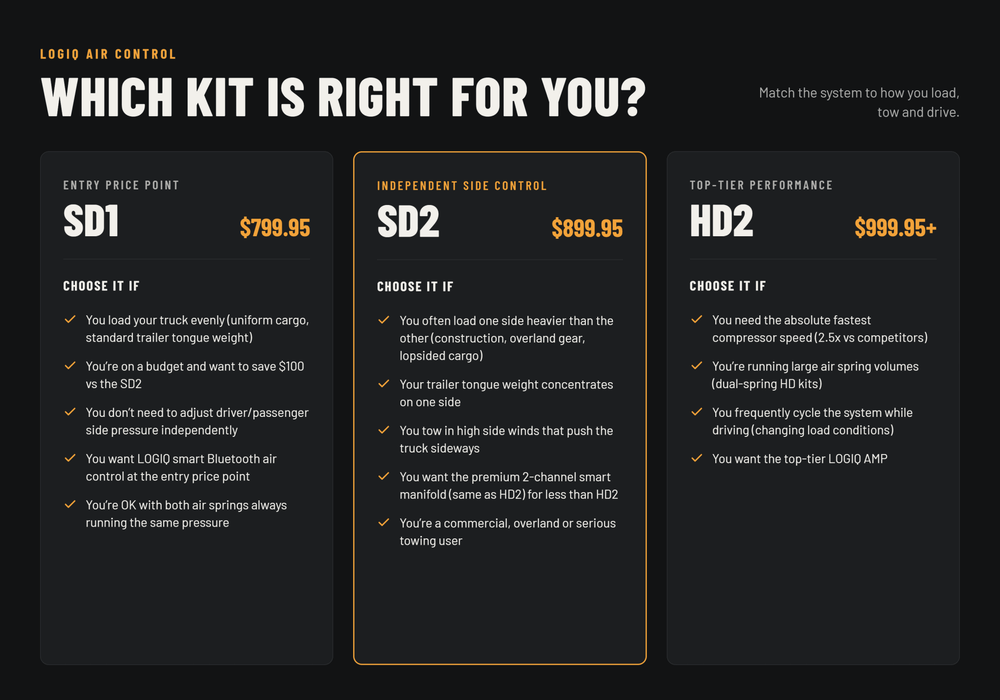

When to Choose SD1 vs SD2

Choose the SD1 ($799.95) if:

• You load your truck evenly (uniform cargo, standard trailer tongue weight)
• You're on a budget and want to save $100 vs the SD2
• You don't need to independently adjust driver/passenger side pressure
• You want LOGIQ smart Bluetooth air control at the entry price point
• You're OK with both air springs always running the same pressure

Choose the SD2 ($899.95) if:

• You frequently load one side heavier than the other (construction, overland gear, lopsided cargo)
• Your trailer tongue weight concentrates on one side
• You tow in high side winds that push the truck sideways
• You want the premium 2-channel smart manifold (same as HD2) at a lower price than HD2
• You're a commercial, overland, or serious towing user

Choose the HD2 ($999.95+) if:

• You need the absolute fastest compressor speed (2.5x vs competitors)
• You're running large air spring volumes (dual-spring HD kits)
• You frequently cycle the system during drives (changing load conditions)
• You want the top-tier LOGIQ AMP

FAQ

• What's the difference between the AirIQ SD1 and SD2? The ONLY difference is the manifold channels. The SD1 has a 1-channel manifold (parallel control — both air springs always at the same pressure, with an included Tee Fitting to split air to both springs). The SD2 has a 2-channel manifold (independent L/R control — you can inflate one side more than the other). Both use the SAME Standard-Duty 275SD compressor, SAME Bluetooth app, SAME IP67-rated electronics, and SAME 150 PSI max output. The SD2 costs $100 more for the manifold upgrade.
• What's the difference between the SD1 and HD2? Two differences: (1) manifold channels (SD1 is 1-channel, HD2 is 2-channel) and (2) compressor (SD1 has Standard-Duty 275SD, HD2 has Heavy-Duty compressor that runs 2.5x faster than competitors vs SD1's 2x faster). The HD2 costs $200 more for both upgrades combined.
• When should I choose the SD1 over the SD2? If you load your truck evenly and don't need independent driver/passenger side control, the SD1 saves you $100 without compromising load-leveling capability. Standard towing (uniform trailer tongue weight), uniform cargo loads, and most daily hauling applications are perfect for the SD1. If you have offset loads (one-sided cargo, lopsided trailer tongue weight, side wind towing), the SD2 is worth the upgrade.
• What does "1-channel manifold" mean? The manifold is the valve block that controls air flow to the air springs. A 1-channel manifold has one valve pair that inflates/deflates BOTH air springs simultaneously via the included Tee Fitting. Both springs always have the same pressure. This is simpler and lower cost than a 2-channel system but means you can't independently adjust one side vs the other.
• What's the Tee Fitting for? The Tee Fitting is unique to the SD1 package. Since the SD1 has only one air output channel from the manifold, the Tee Fitting splits that single air line into two legs — one going to the driver side air spring, one going to the passenger side air spring. Both springs receive air simultaneously at the same pressure. The SD2 and HD2 don't need Tee Fittings because they have independent manifold channels for each spring.
• How much faster is the SD1 compressor than competitors? The LOGIQ 275SD compressor runs 2x faster than competitor compressors from traditional helper bag brands. Fast enough for all real-world towing and load-leveling applications.
• Does the SD1 work with any LOGIQ air spring kit? Yes. The AirIQ SD1 is universally compatible with ALL LOGIQ air spring kits across Ram, Ford F-150, Ford Super Duty, GM 1500, GM HD, and Toyota Tundra platforms.
• Does the SD1 work with aftermarket helper bags? Compatibility with Firestone, Air Lift, PacBrake, and Carli helper bags depends on the specific bag model and air connection style. Contact us for compatibility verification before ordering if you're pairing with non-LOGIQ bags.
• Can I upgrade from the SD1 to the SD2 or HD2 later? Not easily. The SD1 and SD2/HD2 use different manifolds, so upgrading would require purchasing a new AMP. If you think you might want 2-channel control eventually, start with the SD2 to avoid the upgrade cost later.
• Can I upgrade from the Manual Inflation Kit to the SD1 later? Yes. The Manual Inflation Kit (included free with every LOGIQ air spring kit) is a simple airline + Schrader valve setup. You can upgrade to the SD1 at any time by removing the Manual Inflation Kit components and installing the SD1 in its place. The air springs themselves don't change.
• What's included in the box? (1) AirIQ SD1 Air Management System with 20ft wiring harness pre-installed, (4) Frame Mounting Brackets and Hardware, (1) Installation Kit: Tee Fitting, 20ft 1/4" air line, fuse taps, 18ft wire loom. Does NOT include: 2-Gallon Boost Tank (sold separately), AirIQ Remote (sold separately).
• What's the AirIQ App like? FREE download for iOS and Android. Features include real-time pressure monitoring, manual inflate/deflate, trailer presets, and system diagnostics. SAME app that controls the SD2 and HD2 — just displays single-channel data on the SD1 vs dual-channel on SD2/HD2.
• Do I need the AirIQ Remote? No — the AirIQ App on your phone works great as the primary control interface. But the optional AirIQ Remote ($149.95) adds a dash-mounted or steering-wheel-mounted wireless control for app-free quick access. Note: the AirIQ Remote is a 2-channel remote; when paired with the SD1, only 1 channel will be active.
• Do I need the 2-Gallon Boost Tank? No — the SD1 compressor can drive any LOGIQ air spring kit without a boost tank. But the optional 2-Gallon Aluminum Boost Tank ($224.95) stores extra pre-pressurized air, enabling faster lifts and reducing compressor cycling.
• What's the IP54 vs IP67 rating about? Ingress Protection ratings describe dust and water resistance. IP54 means dust-protected (dust can enter but won't damage) and splash-resistant from any direction. IP67 means fully dust-tight (zero dust ingress) and submersible to 1 meter depth for 30 minutes. The compressor is IP54 (appropriate for frame mounting with road spray exposure). All other components (manifold, control module, connectors) are IP67 (overbuilt for truck duty).
• What's the current draw and electrical requirements? 12V operation, 30 Amp current draw at full compressor load. The included fuse taps are rated for the application. Install on a 40A circuit for safety margin.
• How reliable is the SD1 long-term? Verified customer review documents outstanding real-world reliability — one customer who tows a 36ft bumper-pull trailer with his F-350 using the SD1 had a module issue and received overnight replacement from LOGIQ customer service. The customer: "I run a business and appreciate good customer service... I will always buy LogIQ for trucks in the future." LOGIQ's customer service response is as much a product feature as the hardware itself.
• How does LOGIQ customer service work? Verified reviews consistently praise LOGIQ customer service, with multiple reviewers naming "Frank" or "Frankie Acuna" as their service contact. One customer: "I talked to Frank, told him all the stuff I tried, and he over email gave me what to try. It didn't work so they replaced it and sent it overnight." Industry-leading support alongside industry-leading product.
• How long does the AirIQ SD1 take to install? Expect 2–3 hours for AirIQ installation on top of the base air spring kit install. The pre-installed wiring harness, pre-assembled manifold+compressor, included Tee Fitting, and included frame mounting brackets speed up the install significantly.
• Where do I mount the AirIQ SD1? The compressor and manifold are typically frame-mounted on the inside of the frame rail. The included Easy Frame Mounting Brackets locate to common frame mounting points. Routing varies by truck — refer to the included installation instructions.
• What's the warranty? LOGIQ AirIQ systems come with a Limited Lifetime Warranty against defects in materials and workmanship for the original purchaser.

Warranty

The LOGIQ AirIQ SD1 is backed by LOGIQ's Limited Lifetime Warranty against defects in materials and workmanship for the original purchaser. Compressor, manifold, control module, pressure sensor, wiring harness, Tee Fitting, frame mounting brackets, and included components are covered for the life of the vehicle (original owner).

Warranty does not cover damage from accidents, improper installation, exceeding voltage/current ratings, exceeding operating pressure limits (150 PSI max), or use outside of the intended air spring/helper bag application. Contact Recon Recovery to initiate a warranty claim.

⚠️ WARNING: This product can expose you to chemicals including Di(2-ethylhexyl) phthalate (DEHP), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov/product.
