LOGIQ ReadyAir Load Leveling Air Bag Kit for 2019 - 2026 GM Silverado & Sierra 1500 - Recon Recovery - Recon Recovery

LOGIQ Air Spring Kit | 2019-2027 Chevy Silverado & GMC Sierra 1500

by Logiq Air
SKU 88-31190
Availability:
In stock
Availability:
in stock, ready to be shipped
Availability:
In stock
Availability:
In stock
Save $50.09 Save $50.04
$599.99
$599.99 - $1,549.90
$599.99
$549.95
$549.95 - $1,549.90
$549.95

Does this part fit my vehicle?

Verify

2019–2027 CHEVROLET SILVERADO 1500 & GMC SIERRA 1500 (T1 PLATFORM) – LOGIQ AXLE-MOUNTED LOAD-LEVELING AIR SPRING KIT WITH 3,200 LB CAPACITY, HEAT WRAP KIT & LIMITED LIFETIME WARRANTY

Transform your 2019+ Chevy Silverado 1500 or GMC Sierra 1500's rear load-handling with the LOGIQ Air Spring Kit — a 100% factory-assembled, bolt-in axle-mounted air spring system engineered specifically for the T1 platform GM half-ton pickup. Unlike leaf-spring-mounted helper kits, this LOGIQ kit mounts over the axle, inboard of the frame rails, delivering a durable single air sleeve configuration that provides the ultimate blend of ride quality and load stability. Whether you're hauling a 6,000 lb family travel trailer behind your Sierra 1500 Denali, running a welding trailer with 750 lb tongue weight (per verified Sierra Denali Ultimate review), hooking up a half-ton 5th wheel, loading your Chevy LTZ with construction materials, or simply tired of rear sag under load, LOGIQ delivers the premium T1-platform-specific air suspension that reviewers call "far superior than the other ones I have used" (vs Airlift and Firestone).

Every detail is engineered for the real-world 2019+ GM 1500 platform. The OE-style LOGIQ air springs feature a low-frequency design for smooth, controlled ride performance even while towing and hauling. Verified customer review: "The ride with a fully wet travel trailer is also smoother with big bumps having more of a glide rather than a bounce." The large-diameter single air sleeve delivers 3,200 lbs of load capacity at 150 PSI, with a wide 5–150 PSI operating range. The axle-mounted inboard configuration maintains maximum travel while utilizing your factory bumpstops for OEM axle articulation. Built-in locating features reference off the factory frame, guaranteeing proper fitment and operation on every install. An exhaust heat wrap kit is INCLUDED — essential given the T1 platform's exhaust routing. The AirIQ HD2 compressor can hit 60-70 PSI in 15-20 seconds, per verified customer reports.

Pair the kit with your choice of LOGIQ Air Management Package (AMP) or run it with the included Manual Inflation Kit for app-free, wiring-free simplicity. The AirIQ HD2 (2-channel smart manifold with Heavy-Duty compressor, up to 2.5x faster than competitors) delivers best-in-class smart air control with trailer presets — verified by multiple Sierra 1500 Denali owners. The AirIQ SD2 pairs the same 2-channel smart manifold with the Standard Duty compressor. The AirIQ SD1 gives you a sophisticated 1-channel setup with paired rear controls. All AMP options are controlled via the free AirIQ App or the optional AirIQ Remote (verified as "easy to use and very easy to handle"). Add the 2-Gallon Aluminum Boost Tank for lightning-fast lifts and sustained air delivery.

Key Highlights:

  • Axle-mounted inboard-frame-rail air spring kit (not leaf-spring-mounted)
  • Fits 2019–2027 Chevy Silverado 1500 & GMC Sierra 1500 (T1 platform)
  • 3,200 lb load capacity at 150 PSI
  • Wide 5–150 PSI operating range
  • Large-diameter single air sleeve for stability
  • Mounts over axle, inboard of frame rails
  • Utilizes factory bumpstops — preserves OEM axle travel
  • EXHAUST HEAT WRAP KIT INCLUDED
  • Height-sensor trucks require sensor relocation kit 88-31190-1
  • AT4 / Trail Boss / 1-3" lifted trucks require spacer kit 88-91003
  • 1-3" lifts without bump stop spacers require 88-31190-3 + 88-91003
  • NOT compatible with ZR2 or AT4X models
  • NOT compatible with 3.0L diesel + single exit exhaust combo
  • NOT compatible with aftermarket fuel tanks
  • CONFIRMED 5th wheel hitch compatibility (5 hitches — full list in Fitment)
  • 100% factory-assembled kit — ready to install
  • Choice of Manual Inflation or AirIQ Smart Air Management
  • Optional AirIQ Remote and 2-Gallon Boost Tank
  • Limited Lifetime Warranty
  • FREE ReadyGUARD 5-Year / 60,000 Mile Powertrain Warranty

Specs
Specification Details
Part Number 88-31190
System Type Axle-Mounted Load-Leveling Air Spring Kit
Air Spring Location Axle Mounted, Inboard Frame Rails

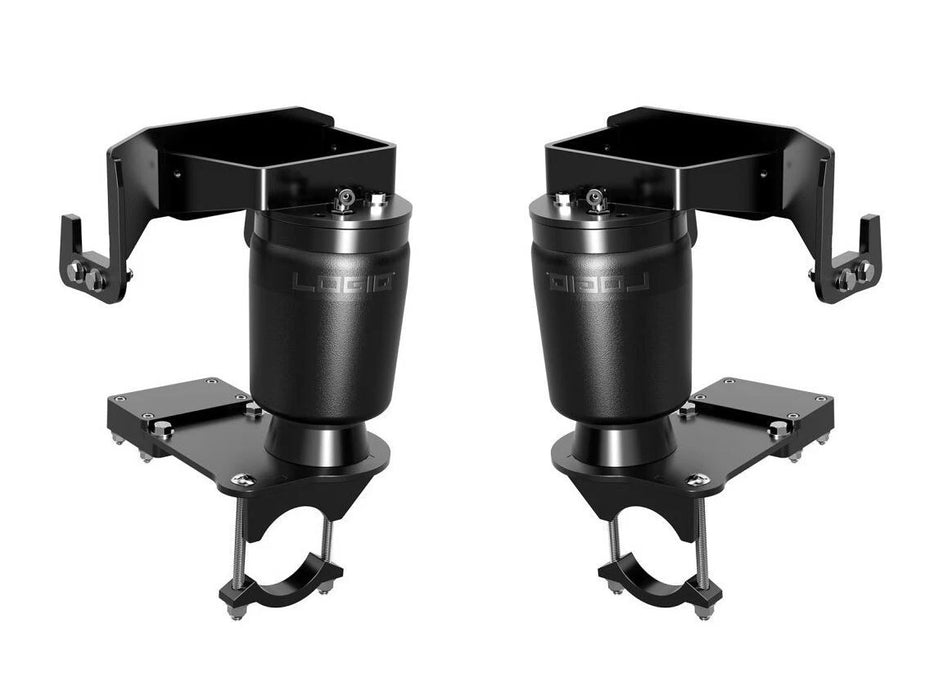

Air Spring Quantity 2 (Driver + Passenger)
Air Sleeve Configuration Large-Diameter Single Air Sleeve
Load Capacity 3,200 lbs @ 150 PSI
Maximum Pressure 150 PSI
Minimum Pressure 5 PSI
Compressor Speed (HD2) 60-70 PSI in 15-20 sec (verified)
Bumpstop Compatibility Utilizes Factory Bumpstops
Exhaust Heat Wrap ✓ INCLUDED
Height-Sensor Trucks Require 88-31190-1 relocation kit
AT4 / Trail Boss / 1-3" Lift Require 88-91003 spacer kit
1-3" Lift Without Bumpstop Spacers Require 88-31190-3 + 88-91003
Lifts Larger Than 3" NOT Compatible
ZR2 Compatibility NOT Compatible
AT4X Compatibility NOT Compatible
3.0L Diesel + Single Exit Exhaust NOT Compatible
Aftermarket Fuel Tanks NOT Compatible
5th Wheel Compatibility ✓ CONFIRMED (5 hitches — full list below)

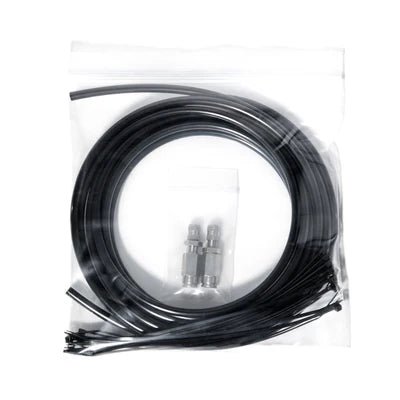

Default Management Manual Inflation Kit (airline + Schrader valves)
Smart Air Management Options AirIQ SD1 / SD2 / HD2
Controller Options Free AirIQ App or AirIQ Remote
Optional Tank 2-Gallon Aluminum Boost Tank
Warranty Limited Lifetime + 5-Yr/60K ReadyGUARD Powertrain
Features

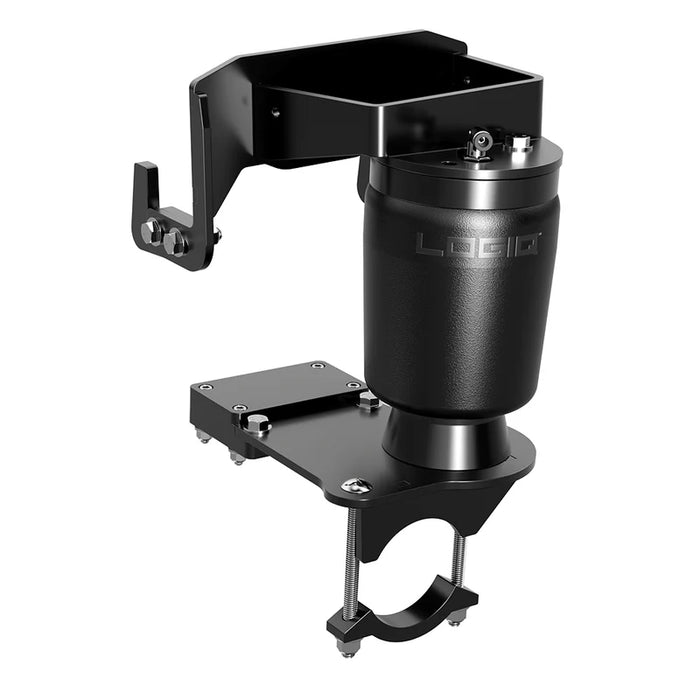

  • Axle-Mounted Inboard Configuration: Mounts the air springs OVER the axle, INBOARD of the frame rails. This architecture is specifically engineered for the T1 platform's rear suspension layout. Delivers better load distribution and ride stability for the current-gen GM half-ton.
  • 3,200 lb Load Capacity at 150 PSI: Solid load support for half-ton Silverado/Sierra duty cycles. Verified customer handling of 6,000 lb family travel trailers and welding trailers with 750 lb tongue weight.
  • Wide 5–150 PSI Operating Range: The 5 PSI minimum gives you unloaded ride-quality flexibility. Dial up to 150 PSI for max load support.
  • Large-Diameter Single Air Sleeve: The single large-diameter sleeve provides consistent pressure distribution and reliable load support.

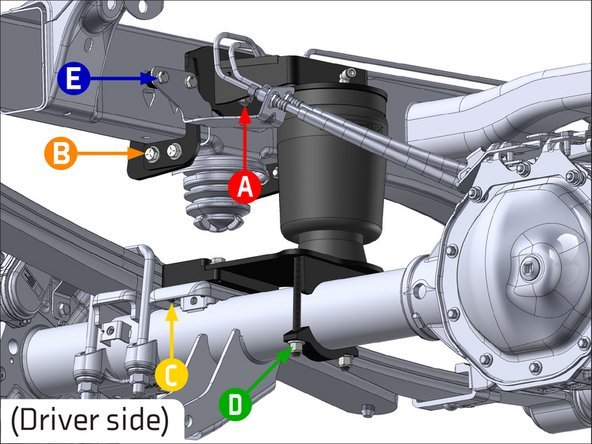

  • Axle-Mounted, Inboard Frame Rails: Air springs mount directly to the rear axle, inboard of the frame rails. Specifically engineered for the T1 platform's rear suspension architecture.
  • Utilizes Factory Bumpstops: Preserves maximum axle travel and factory suspension geometry.
  • EXHAUST HEAT WRAP KIT INCLUDED: The GM 1500 T1 platform exhaust routing passes close enough to the inboard-mounted air springs that heat protection is needed. LOGIQ includes an exhaust heat wrap kit at no extra cost.
  • Verified Superior to Competitors: One verified customer review documents direct experience with Airlift (x4 kits) and Firestone (x2 kits) before trying LOGIQ: "your system is far superior than the other ones I have used." Direct testimonial advantage over the two biggest helper-bag competitors in the market.
  • High-Speed Compressor Performance: Verified customer review of AirIQ HD2 performance: "The compressor is quick, I can get up to 60-70 lbs in 15-20 seconds or less." Significantly faster than competitor compressors.
  • AT4 / Trail Boss / Lifted Truck Compatibility (with spacers): Compatible with GMC AT4, Chevy Trail Boss (both have 2" factory lift), AND aftermarket 1-3" rear lifts — but these require the 88-91003 spacer kit (sold separately). Lifts WITHOUT factory bump stop spacers also require the 88-31190-3 spacer kit.
  • Factory Height Sensor Compatibility (with relocation kit): Trucks equipped with factory rear height sensors (common on Denali Ultimate, Silverado High Country, and other premium trims with air ride) require the additional sensor relocation kit 88-31190-1 (sold separately).
  • 100% Factory-Assembled Kit: Ships ready to bolt in — no field assembly, no shim stacking, no fabrication.
  • CONFIRMED 5th Wheel Hitch Compatibility: LOGIQ has CONFIRMED compatibility with 5 OEM and aftermarket 5th wheel hitches on the T1 platform (see Fitment section). Smaller than the 2007-2018 kit's 10-hitch list but still substantial for half-ton 5th wheel owners.
  • OE-Style Low-Frequency Ride Quality: The LOGIQ air springs are tuned for OEM-like ride comfort unloaded, so you don't trade daily ride quality for load support. Verified customer: "Nice ride, very smooth."
  • Precision Fitment: Built-in locating features reference off the factory frame.
  • Covers 2019+ T1 Platform: The kit works across the full T1 platform run from the 2019 redesign through the current model year (through 2027). One kit, 9+ model years, both brands.
  • Choice of Air Management: The default kit includes a Manual Inflation Kit (airline + Schrader valves + zip ties) for simple, wiring-free operation. Upgrade to one of three AirIQ Smart Air Management Packages for app and remote control.

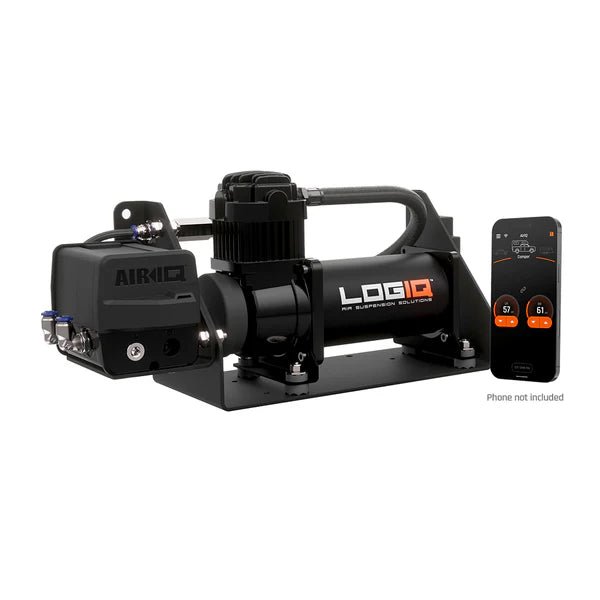

  • AirIQ HD2 (Optional): 2-channel Smart Manifold + Heavy-Duty compressor. Independent driver/passenger air control. Up to 2.5x faster than competitors. Verified by multiple customer reviews on 2019+ Silverado/Sierra builds.

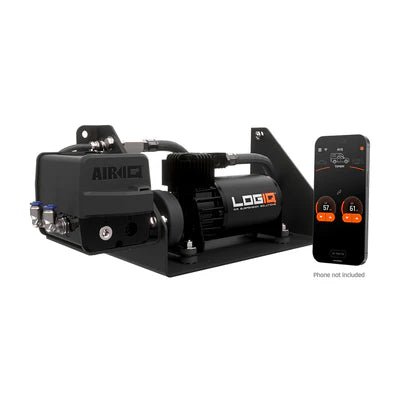

  • AirIQ SD2 (Optional): 2-channel Smart Manifold + Standard-Duty compressor. Independent driver/passenger control. 2x faster than competitors.
  • AirIQ SD1 (Optional): 1-channel Smart Manifold + Standard-Duty compressor. Paired rear controls.
  • AirIQ App Control: FREE download. Control inflation, deflation, presets, and monitoring from your phone.
  • Optional AirIQ Remote: 2-channel wireless remote for app-free quick-access control. Verified customer: "easy to use and very easy to handle."
  • Optional 2-Gallon Boost Tank: Powder-coated aluminum air tank for faster lifts and sustained air delivery.
  • Limited Lifetime Warranty + FREE ReadyGUARD Coverage: LOGIQ air spring kits are backed by a Limited Lifetime Warranty on the air springs, PLUS a FREE 5-year / 60,000-mile ReadyGUARD powertrain warranty.
Fitment
Year Make Model Platform Notes
2019 Chevrolet Silverado 1500 T1 Standard fitment
2020 Chevrolet Silverado 1500 T1 Standard fitment
2021 Chevrolet Silverado 1500 T1 Standard fitment
2022 Chevrolet Silverado 1500 T1 Standard fitment
2023 Chevrolet Silverado 1500 T1 Standard fitment
2024 Chevrolet Silverado 1500 T1 Refresh Standard fitment
2025 Chevrolet Silverado 1500 T1 Refresh Standard fitment
2026 Chevrolet Silverado 1500 T1 Refresh Standard fitment
2027 Chevrolet Silverado 1500 T1 Refresh Standard fitment
2019 GMC Sierra 1500 T1 Standard fitment
2020 GMC Sierra 1500 T1 Standard fitment
2021 GMC Sierra 1500 T1 Standard fitment
2022 GMC Sierra 1500 T1 Standard fitment
2023 GMC Sierra 1500 T1 Standard fitment
2024 GMC Sierra 1500 T1 Refresh Standard fitment
2025 GMC Sierra 1500 T1 Refresh Standard fitment
2026 GMC Sierra 1500 T1 Refresh Standard fitment
2027 GMC Sierra 1500 T1 Refresh Standard fitment

CONFIRMED 5th Wheel Hitch Compatibility:

Brand Model
B&W BWGNRK1019
B&W BWRVK2504
Demco DM8552034
Demco DM8553019
Demco DM8551011



FAQ

  • Does this fit both Silverado 1500 AND Sierra 1500? Yes. Chevy Silverado 1500 and GMC Sierra 1500 share the same T1 chassis, suspension, and frame. The LOGIQ 88-31190 kit works on both.
  • Does this fit my 2018 or older Silverado/Sierra 1500? No. GM redesigned the Silverado/Sierra 1500 for 2019 with the T1 platform. Use LOGIQ part 88-31070 for 2007-2018 GM 1500 (GMT900 + K2XX platforms).
  • Does this fit my ZR2 or AT4X? No. The Chevy Silverado ZR2 and GMC Sierra AT4X use unique Multimatic DSSV long-travel suspension that this kit cannot accommodate. There is NO LOGIQ-compatible kit for ZR2 or AT4X trims.
  • Does this fit my AT4 (standard) or Trail Boss? Yes, WITH the additional 88-91003 spacer kit (sold separately). The AT4 (standard, not AT4X) and Trail Boss have a 2" factory lift that requires spacers to work properly with the air springs.
  • Does this fit my 3.0L Duramax diesel? It depends on your exhaust configuration. 3.0L Duramax trucks with DUAL exit exhaust ARE compatible. 3.0L Duramax trucks with SINGLE exit exhaust are NOT compatible — the single exit exhaust routing conflicts with the air spring installation.
  • Does this fit my Denali Ultimate or High Country with factory air ride? Yes, WITH the additional 88-31190-1 sensor relocation kit (sold separately). Trucks equipped with factory rear height sensors (common on premium trims with adaptive suspension) require the sensor relocation kit for proper installation.
  • How do I know if my truck has factory rear height sensors? Check the rear axle area for a factory height sensor (typically mounted between the frame and the axle). If you see one, you need the 88-31190-1 relocation kit. When in doubt, consult your dealer or contact Recon Recovery for help identifying.
  • Does this fit my lifted Silverado/Sierra? Yes, with the appropriate spacer kit(s):
    • AT4 / Trail Boss (2" factory lift): 88-91003 spacer kit
    • 1-3" aftermarket lift WITH bump stop spacers: 88-91003 spacer kit
    • 1-3" aftermarket lift WITHOUT bump stop spacers: Both 88-31190-3 AND 88-91003 spacer kits
      Lifts larger than 3" are NOT compatible with this kit.
  • Does this fit my Silverado EV or Sierra EV? No. The electric Silverado EV and Sierra EV use different suspension architecture (independent rear suspension in some configurations).
  • Does this fit my Silverado 2500HD or 3500HD? No. The HD platforms use different rear suspension architecture. This kit is for GM half-ton (1500) trucks only.
  • Does this fit my truck with an aftermarket fuel tank? No. Larger aftermarket replacement fuel tanks (Transfer Flow, Titan, etc.) conflict with the air spring installation. The factory fuel tank is required for proper fitment.
  • What's included in the exhaust heat wrap kit? The included exhaust heat wrap kit protects the air springs from heat radiating off the exhaust system. T1 platform exhaust routing passes close enough to the air springs that heat protection is required. The kit includes the heat wrap material and mounting hardware.
  • Will this work with my 5th wheel hitch? LOGIQ has CONFIRMED compatibility with 5 OEM and aftermarket 5th wheel hitches on the T1 platform: B&W BWGNRK1019, B&W BWRVK2504, Demco DM8552034, Demco DM8553019, and Demco DM8551011. If your hitch isn't on this list, contact us before ordering.
  • How does the AirIQ HD2 compressor perform? Verified customer review documents the AirIQ HD2 reaching 60-70 PSI in 15-20 seconds or less. Significantly faster than competitor compressors (verified by a customer who previously used Airlift and Firestone systems and switched to LOGIQ).
  • How does the ride compare to competitors? One verified customer review documents extensive comparison: "your system is far superior than the other ones I have used (Airlift x4, Firestone x2)." Direct testimonial advantage over the two biggest helper-bag competitors.
  • Any install challenges to watch out for on the T1 platform? Yes — verified customer reviews note specific T1 platform install challenges:
    • Compressor mounting: Passenger side has limited space; driver side requires spacer bars/leaf spring spacers to clear fuel lines.
    • Install documentation: LOGIQ's install instructions assume a 4-post vehicle lift. DIY installers without lifts may need to improvise.
    • Electrical: Customers report the fuse-tap instructions could be clearer; running the compressor wiring through the passenger side pass-through area is recommended.
    • Attention to detail required: Verified customer: "install was fairly easy after I slowed down and paid more attention to details."
      Professional installation recommended, especially for AirIQ Air Management Package installations.
  • Do I need an Air Management Package to use this kit? No. The default option is the Manual Inflation Kit (included at no additional cost) — just a length of airline with Schrader valves. Upgrade to an AirIQ AMP when you want smart on-board air with trailer presets.
  • What's the difference between the AirIQ HD2, SD2, and SD1 Air Management options? All three provide smart app/remote control. The HD2 has a 2-channel smart manifold (independent driver/passenger control) and the Heavy-Duty compressor (2.5x faster than competitors). The SD2 has the same 2-channel manifold but with the Standard-Duty compressor (2x faster than competitors). The SD1 has a 1-channel manifold (paired rear control) with the Standard-Duty compressor.
  • What's the load capacity at lower PSI? Load capacity scales linearly with PSI. At 150 PSI maximum, the kit supports 3,200 lbs. At 100 PSI, expect approximately 2,100 lbs. At 60 PSI (common cruising/towing pressure per verified customer), expect approximately 1,300 lbs. Always observe the 5 PSI minimum and 150 PSI maximum pressure limits, and never exceed your truck's GVWR or maximum payload.
  • How does the kit handle a travel trailer? Verified customer review from a Sierra 1500 Denali owner with a 6,000 lb dual-axle family travel trailer: "the ride with a fully wet travel trailer is also smoother with big bumps having more of a glide rather than a bounce. It definitely handles the trailer with ease."
  • What's the warranty? LOGIQ Air Spring Kits come with a Limited Lifetime Warranty on the air springs themselves, PLUS a FREE 5-year / 60,000-mile ReadyGUARD Powertrain Warranty.
  • What's included in the kit? (1) Driver Side Air Spring Assembly, (1) Passenger Side Air Spring Assembly, (1) Hardware Kit, (1) Manual Inflation Kit (airline + Schrader valves + zip ties), and (1) Exhaust Heat Wrap Kit.
  • Does this fit the 2024+ refresh Silverado/Sierra? Yes. GM refreshed the Silverado/Sierra 1500 interior for 2024 (and the Sierra Denali Ultimate exterior), but the T1 chassis and rear suspension architecture carried over. The LOGIQ kit covers 2019 through current model year (2027).
Warranty

The LOGIQ Air Spring Kit is backed by LOGIQ's Limited Lifetime Warranty against defects in materials and workmanship for the original purchaser. Air springs, hardware, heat wrap kit, and included components are covered for the life of the vehicle (original owner).

FREE ReadyGUARD 5-Year / 60,000-Mile Powertrain Warranty is included with every LOGIQ Air Spring Kit — providing supplemental powertrain coverage when the kit is professionally installed per manufacturer specifications. ReadyGUARD registration required; see LOGIQ's warranty page for terms and conditions.

Warranty does not cover damage from accidents, improper installation, overloading beyond specified capacity, exceeding vehicle GVWR, or use on vehicles not listed in the fitment guide. Contact Recon Recovery to initiate a warranty claim.

⚠️ WARNING: This product can expose you to chemicals including Di(2-ethylhexyl) phthalate (DEHP), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov/product.
