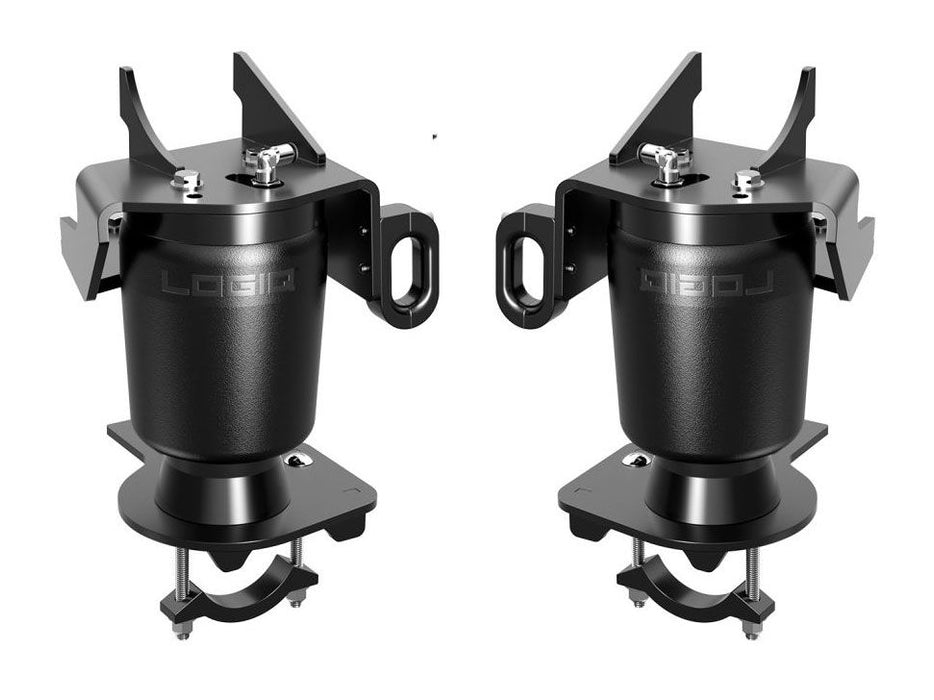

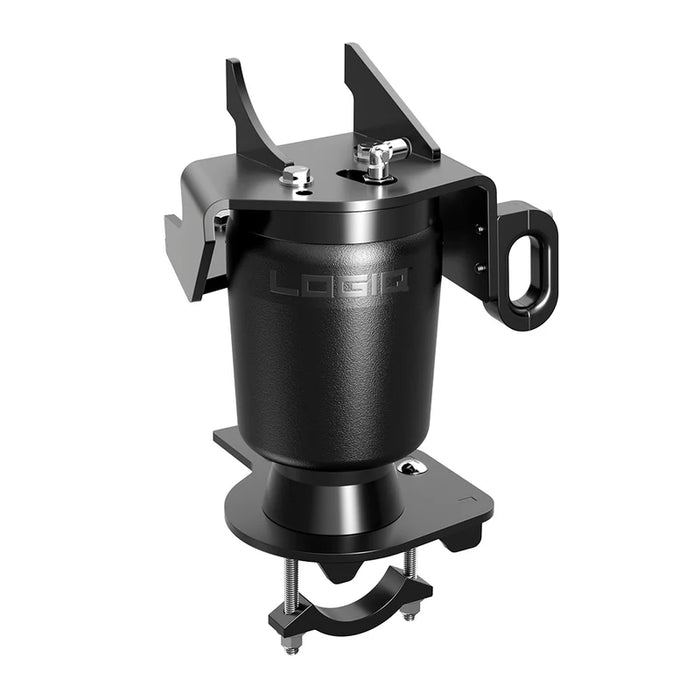

2007–2018 CHEVROLET SILVERADO 1500 & GMC SIERRA 1500 (GMT900 & K2XX) – LOGIQ AXLE-MOUNTED LOAD-LEVELING AIR SPRING KIT WITH 3,200 LB CAPACITY, HEAT WRAP KIT & LIMITED LIFETIME WARRANTY

Transform your 2007–2018 Chevy Silverado 1500 or GMC Sierra 1500's rear load-handling with the LOGIQ Air Spring Kit — a 100% factory-assembled, bolt-in axle-mounted air spring system engineered specifically for the GM half-ton pickup. Unlike leaf-spring-mounted helper kits, this LOGIQ kit mounts over the axle, inboard of the frame rails, delivering a durable single air sleeve configuration that provides the ultimate blend of ride quality and load stability. Whether you're hooking up a 5th wheel RV, hauling tools in your work truck, towing a travel trailer behind your LTZ or Denali, loading your bed with construction materials, or simply tired of rear sag under load, LOGIQ delivers premium half-ton air suspension that works across the full 12-year GMT900 and K2XX platform run.

Every detail is engineered for real-world GM 1500 use. The OE-style LOGIQ air springs feature a low-frequency design for smooth, controlled ride performance even while towing and hauling. The large-diameter single air sleeve delivers 3,200 lbs of load capacity at 150 PSI, with a wide 5–150 PSI operating range that lets you dial in exactly the right ride height for any load condition. The axle-mounted inboard configuration maintains maximum travel while utilizing your factory bumpstops for OEM axle articulation. Built-in locating features reference off the factory frame, guaranteeing proper fitment and operation on every install. An exhaust heat wrap kit is INCLUDED — a smart addition for the GM 1500's exhaust routing, which passes close enough to the air springs that heat protection is warranted (and included at no extra cost, unlike many competitors).

Pair the kit with your choice of LOGIQ Air Management Package (AMP) or run it with the included Manual Inflation Kit for app-free, wiring-free simplicity. The AirIQ HD2 (2-channel smart manifold with Heavy-Duty compressor, up to 2.5x faster than competitors) delivers best-in-class smart air control with trailer presets — perfect for GM 5th wheel owners (10+ confirmed hitch compatibilities). The AirIQ SD2 pairs the same 2-channel smart manifold with the Standard Duty compressor. The AirIQ SD1 gives you a sophisticated 1-channel setup with paired rear controls. All AMP options are controlled via the free AirIQ App or the optional AirIQ Remote. Add the 2-Gallon Aluminum Boost Tank for lightning-fast lifts and sustained air delivery.

Key Highlights:

• Axle-mounted inboard-frame-rail air spring kit (not leaf-spring-mounted)
• Fits 2007–2018 Chevy Silverado 1500 & GMC Sierra 1500 (GMT900 + K2XX)
• 3,200 lb load capacity at 150 PSI
• Wide 5–150 PSI operating range
• Large-diameter single air sleeve for stability
• Mounts over axle, inboard of frame rails
• Utilizes factory bumpstops — preserves OEM axle travel
• EXHAUST HEAT WRAP KIT INCLUDED
• Lifted trucks compatible with spacer kits 88-91003 or 88-91006 (sold separately)
• CONFIRMED 5th wheel hitch compatibility (10 hitches — full list in Fitment)
• 100% factory-assembled kit — ready to install
• Choice of Manual Inflation or AirIQ Smart Air Management
• Optional AirIQ Remote and 2-Gallon Boost Tank
• Limited Lifetime Warranty
• FREE ReadyGUARD 5-Year / 60,000 Mile Powertrain Warranty

Specs

Features

• Axle-Mounted Inboard Configuration: Unlike LOGIQ's F-150 and Ram HD leaf-spring-mounted kits, the GM 1500 kit mounts the air springs OVER the axle, INBOARD of the frame rails. This architecture is specifically engineered for the GMT900 and K2XX platform's rear suspension layout. Delivers better load distribution and ride stability for GM half-ton applications.
• 3,200 lb Load Capacity at 150 PSI: Solid load support for half-ton GM 1500 duty cycles. Handles trailer tongue weight, loaded bed cargo, 5th wheel pin weight, and real-world towing.
• Wide 5–150 PSI Operating Range: The 5 PSI minimum gives you unloaded ride-quality flexibility. Run minimum pressure for empty cruising comfort, dial up to 150 PSI for max load support.
• Large-Diameter Single Air Sleeve: The single large-diameter sleeve provides consistent pressure distribution and reliable load support.

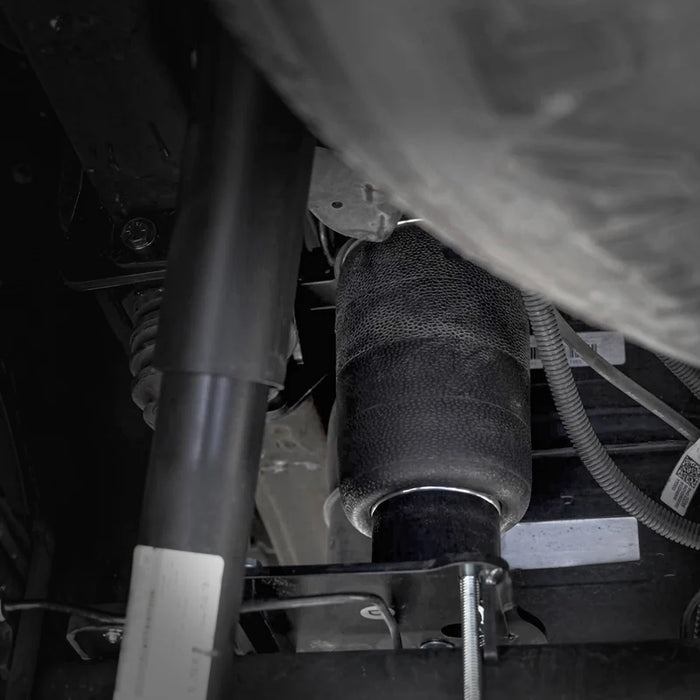

• Axle-Mounted, Inboard Frame Rails: Air springs mount directly to the rear axle, inboard of the frame rails. This mounting style is specifically engineered for the GM 1500's rear suspension architecture.
• Utilizes Factory Bumpstops: Preserves maximum axle travel and factory suspension geometry. No modification to bumpstops required.

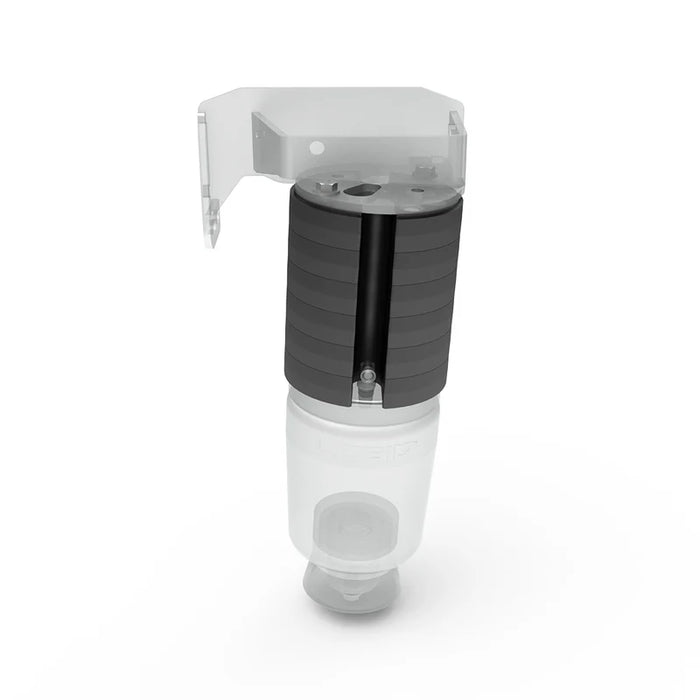

• EXHAUST HEAT WRAP KIT INCLUDED: The GM 1500's exhaust routing passes close enough to the inboard-mounted air springs that heat protection is warranted. LOGIQ includes an exhaust heat wrap kit at no extra cost — a key feature that cheaper competitors omit.
• LIFTED TRUCK COMPATIBILITY: For GM 1500 trucks with aftermarket rear lift, LOGIQ offers spacer kits
• 100% Factory-Assembled Kit: Ships ready to bolt in — no field assembly, no shim stacking, no fabrication.
• CONFIRMED 5th Wheel Hitch Compatibility: Unlike LOGIQ's F-150 kits (which are NOT 5th-wheel compatible), the GM 1500 kit has CONFIRMED compatibility with 10 different OEM and aftermarket 5th wheel hitches (see Fitment section). Half-ton 5th wheel owners finally have an air spring option engineered for their setup.
• OE-Style Low-Frequency Ride Quality: The LOGIQ air springs are tuned for OEM-like ride comfort unloaded, so you don't trade daily ride quality for load support.
• Precision Fitment: Built-in locating features reference off the factory frame, guaranteeing proper fitment and operation for every install.
• Covers Both GMT900 and K2XX Platforms: The kit works across the full 12-year run — 2007-2013 GMT900 (the "classic" style Silverado/Sierra) AND 2014-2018 K2XX (the second redesign). One kit, 12 model years, two platforms.
• Choice of Air Management: The default kit includes a Manual Inflation Kit (airline + Schrader valves + zip ties) for simple, wiring-free operation. Upgrade to one of three AirIQ Smart Air Management Packages for app and remote control.
• AirIQ HD2 (Optional): 2-channel Smart Manifold + Heavy-Duty compressor. Independent driver/passenger air control. Up to 2.5x faster than competitors.
• AirIQ SD2 (Optional): 2-channel Smart Manifold + Standard-Duty compressor. Independent driver/passenger control. 2x faster than competitors.
• AirIQ SD1 (Optional): 1-channel Smart Manifold + Standard-Duty compressor. Paired rear controls.
• AirIQ App Control: FREE download. Control inflation, deflation, presets, and monitoring from your phone. Save trailer-specific presets for one-tap towing setup.
• Optional AirIQ Remote: 2-channel wireless remote for app-free quick-access control.
• Optional 2-Gallon Boost Tank: Powder-coated aluminum air tank for faster lifts and sustained air delivery.
• Limited Lifetime Warranty + FREE ReadyGUARD Coverage: LOGIQ air spring kits are backed by a Limited Lifetime Warranty on the air springs, PLUS a FREE 5-year / 60,000-mile ReadyGUARD powertrain warranty.

Fitment

CONFIRMED 5th Wheel Hitch Compatibility:

FAQ

• Does this fit both Silverado 1500 AND Sierra 1500? Yes. Chevy Silverado 1500 and GMC Sierra 1500 share the same chassis, suspension, and frame — just different exterior badging, grilles, and trim-level packages. The LOGIQ 88-31070 kit works on both.
• Does this fit my 2019 or newer Silverado/Sierra 1500? No. GM redesigned the Silverado/Sierra 1500 for 2019 with the T1 platform. The rear suspension architecture differs from the 2007-2018 GMT900/K2XX platforms. If you have a 2019+ GM 1500, you'll need a different LOGIQ SKU — check LOGIQ's GM catalog.
• Does this fit my 2006 or older Silverado/Sierra 1500? No. The GMT800 platform (1999-2006) uses different rear suspension geometry. This kit is specific to the GMT900 (2007-2013) and K2XX (2014-2018) platforms.
• What's the difference between GMT900 and K2XX? GMT900 is GM's 2007-2013 half-ton platform (the "second-redesign" post-GMT800). K2XX is GM's 2014-2018 half-ton platform (the "third-redesign" with revised exterior styling and interior). The rear suspension architecture is close enough that LOGIQ engineered a single kit that works on both platforms.
• Does this fit my Silverado 2500HD or 3500HD? No. The HD platforms (2500HD, 3500HD) use different rear suspension architecture. This kit is for GM half-ton (1500) trucks only. Check LOGIQ's GM HD catalog if available.
• Does this fit my Silverado EV or Sierra EV? No. Electric trucks use different suspension architecture (independent rear suspension in some cases).
• What's included in the exhaust heat wrap kit? The included exhaust heat wrap kit protects the air springs from heat radiating off the exhaust system. GM 1500 exhaust routing passes close enough to the air springs on some configurations that heat protection is warranted. The kit includes the heat wrap material and mounting hardware.
• Will this work with my 5th wheel hitch? LOGIQ has CONFIRMED compatibility with 10 OEM and aftermarket 5th wheel hitches on the GM 1500: B&W BWGNRK1057, BWGNRK1007, BWRVK2503; Curt 60632, 16400; Reese RP56007, RP50064; Demco DM8552013, DM8552027; and Draw-Tite 4454. If your hitch isn't on this list, contact us before ordering.
• Why is the GM 1500 kit axle-mounted but the F-150 kit is leaf-mounted? Different trucks, different rear suspension architectures. The F-150 kit mounts over the factory leaf springs outboard of the frame rails. The GM 1500 kit mounts over the rear axle inboard of the frame rails. Both approaches are engineered for the specific chassis — LOGIQ builds truck-specific kits rather than one-size-fits-all helper bags.
• Does the GM 1500 kit have the same 5th wheel compatibility limitation as the F-150 kit? No. The F-150 kit has significant 5th wheel compatibility limitations (NOT compatible with most 5th wheel hitches). The GM 1500 kit has CONFIRMED compatibility with 10 different 5th wheel hitches. GM 1500 is a better choice for half-ton 5th wheel RV owners from a kit-compatibility standpoint.
• Do I need an Air Management Package to use this kit? No. The default option is the Manual Inflation Kit (included at no additional cost) — just a length of airline with Schrader valves. Upgrade to an AirIQ AMP when you want smart on-board air with trailer presets.
• What's the difference between the AirIQ HD2, SD2, and SD1 Air Management options? All three provide smart app/remote control. The HD2 has a 2-channel smart manifold (independent driver/passenger control) and the Heavy-Duty compressor (2.5x faster than competitors). The SD2 has the same 2-channel manifold but with the Standard-Duty compressor (2x faster than competitors). The SD1 has a 1-channel manifold (paired rear control) with the Standard-Duty compressor.
• What's the load capacity at lower PSI? Load capacity scales linearly with PSI. At 150 PSI maximum, the kit supports 3,200 lbs. At 100 PSI, expect approximately 2,100 lbs. At 60 PSI (common cruising/towing pressure), expect approximately 1,300 lbs. Always observe the 5 PSI minimum and 150 PSI maximum pressure limits, and never exceed your truck's GVWR or maximum payload.
• How long does installation take? Expect 2–3 hours for the air springs on a GM 1500 (axle-mounted install is slightly more involved than F-150's leaf-mounted). Add 2–3 hours for an AirIQ Air Management Package installation. Professional installation recommended.
• What's the warranty? LOGIQ Air Spring Kits come with a Limited Lifetime Warranty on the air springs themselves, PLUS a FREE 5-year / 60,000-mile ReadyGUARD Powertrain Warranty.
• What's included in the kit? (1) Driver Side Air Spring Assembly, (1) Passenger Side Air Spring Assembly, (1) Hardware Kit, (1) Manual Inflation Kit (airline + Schrader valves + zip ties), and (1) Exhaust Heat Wrap Kit.
• Does this fit Z71 off-road trim? Yes. The Z71 off-road package affects shocks, skid plates, and trim, but doesn't change the rear suspension architecture that this kit mounts to.
• Does this fit my Denali or High Country? Yes. Denali (GMC's premium trim) and High Country (Chevrolet's premium trim) use the same chassis and rear suspension as other 1500 trims. The kit fits regardless of trim level.
• What about the diesel 3.0L Duramax option? The 3.0L Duramax diesel wasn't offered in the 2007-2018 Silverado/Sierra 1500 platforms — it debuted in the 2020 model year on the T1 platform. If you have a 3.0L Duramax, your truck is a 2020+ T1 platform and needs a different LOGIQ kit.

Warranty

LOGIQ LIMITED LIFETIME WARRANTY + READYGUARD POWERTRAIN COVERAGE

The LOGIQ Air Spring Kit is backed by LOGIQ's Limited Lifetime Warranty against defects in materials and workmanship for the original purchaser. Air springs, hardware, heat wrap kit, and included components are covered for the life of the vehicle (original owner).

FREE ReadyGUARD 5-Year / 60,000-Mile Powertrain Warranty is included with every LOGIQ Air Spring Kit — providing supplemental powertrain coverage when the kit is professionally installed per manufacturer specifications. ReadyGUARD registration required; see LOGIQ's warranty page for terms and conditions.

Warranty does not cover damage from accidents, improper installation, overloading beyond specified capacity, exceeding vehicle GVWR, or use on vehicles not listed in the fitment guide. Contact Recon Recovery to initiate a warranty claim.
