2009–2026 RAM 1500 – LOGIQ COIL REPLACEMENT PRIMARY AIR SPRING KIT WITH 6,000 LB LIFTING FORCE & LIMITED LIFETIME WARRANTY

Transform your Ram 1500's rear suspension with the LOGIQ Air Spring Kit — a bolt-in coil replacement that swaps factory rear coil springs (or factory air suspension) for a true primary air spring setup at the rear axle. This isn't a helper spring. This isn't an add-on auxiliary air bag. This is a full coil replacement that delivers OEM-style ride quality unloaded, superior load support when hauling, and adjustable rear ride height for easier loading, trailer hookup, or fine-tuning your stance. Whether you're towing a travel trailer, hauling tools on a work truck, loading a motorcycle for a weekend ride, or just tired of sagging rear suspension under load, LOGIQ delivers smarter air suspension engineered for serious work.

Every detail is engineered for real-world Ram 1500 use. The OE-style LOGIQ air springs feature a low-frequency design for smooth, controlled ride performance even while towing and hauling. High-endurance construction (the same technology semi-trucks, buses, and trains have relied on for decades) delivers up to 6,000 lbs of total lifting force at 150 PSI and 3,800 lbs of payload capacity at 150 PSI. 3" of surplus extension travel lets the LOGIQ system flex on the competition — delivering increased off-road comfort, articulation, and confidence that typical helper-spring systems simply can't match. Built-in locating features reference off the factory frame and axle, guaranteeing proper fitment and operation on every install, and the "click-into-place" coil replacement design makes this one of LOGIQ's easiest-installing kits to date.

Pair the kit with your choice of LOGIQ Air Management Package (AMP) or run it with the included Manual Inflation Kit for app-free, wiring-free simplicity. The AirIQ HD2 (2-channel smart manifold with Heavy-Duty compressor, up to 2.5x faster than competitors) delivers best-in-class smart air control. The AirIQ SD2 pairs the same 2-channel smart manifold with the Standard Duty compressor. The AirIQ SD1 gives you a sophisticated 1-channel setup with paired rear controls. All AMP options are controlled via the free AirIQ App or the optional AirIQ Remote. Add the 2-Gallon Aluminum Boost Tank for lightning-fast lifts and sustained air delivery.

Key Highlights:

• Coil replacement primary air suspension — NOT a helper spring
• Fits 2009–2026 Ram 1500 factory height to +3" lifts
• Compatible with +3" to +6" lifts with Spacer Kit 89-11090-3
• 6,000 lb total lifting force at 150 PSI
• 3,800 lb payload capacity at 150 PSI (never exceed GVWR)
• 3" surplus extension travel for off-road articulation
• Axle-mounted outboard frame rails
• Compatible with ALL 5th wheel hitches (OEM & aftermarket)
• OE-style low-frequency ride quality
• Precision fitment — locates off factory frame & axle
• Click-into-place coil replacement installation
• Choice of Manual Inflation or AirIQ Smart Air Management
• Optional AirIQ Remote and 2-Gallon Boost Tank
• Limited Lifetime Warranty
• FREE ReadyGUARD 5-Year / 60,000 Mile Powertrain Warranty

Specs

Features

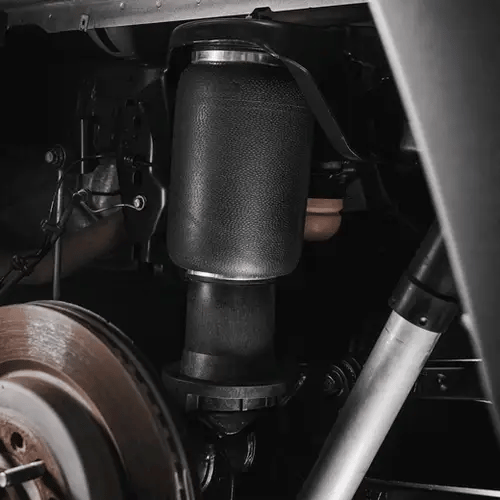

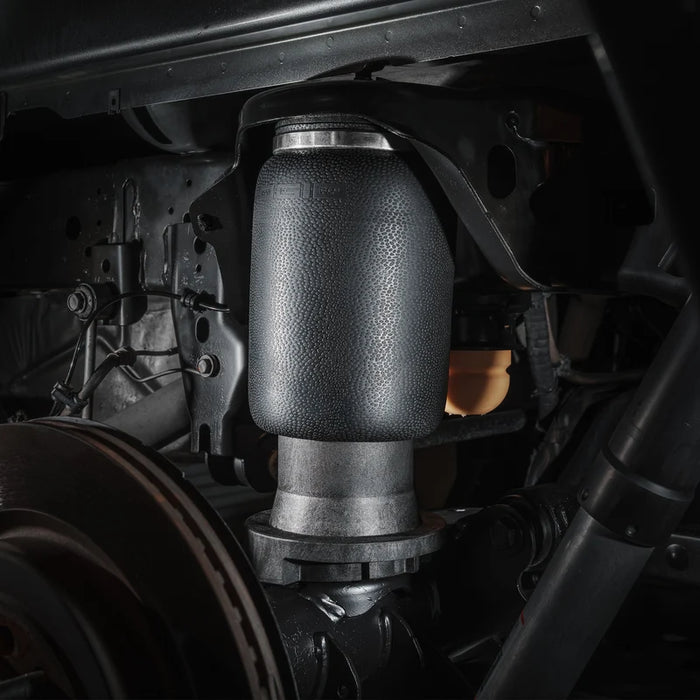

• Coil Replacement Primary Air Suspension: Unlike helper spring kits that add auxiliary air bags on top of existing coil springs, the LOGIQ Air Spring Kit completely replaces your factory rear coil springs (or factory air suspension) with a true primary air spring. The result: superior ride quality AND load support in one system.
• Click-Into-Place Installation: Once the factory coil is removed, the LOGIQ Air Spring Kit simply clicks into place — making this one of LOGIQ's easiest-installing kits to date. No complex mounting hardware, no fabrication, no permanent modifications.
• 6,000 lb Lifting Force at 150 PSI: Serious lifting capacity for serious work. Supports heavy payloads, trailer tongue weight, loaded beds, and real-world towing scenarios. Pressure range: 20 PSI minimum (unloaded cruising) to 150 PSI maximum (full load).
• 3,800 lb Payload Capacity at 150 PSI: Supports the real-world payload your Ram 1500 is rated for. Always observe your truck's GVWR and maximum payload specifications — the air springs don't change your truck's rating, they just support it better.
• OE-Style Low-Frequency Ride Quality: The LOGIQ air springs are tuned for OEM-like ride comfort unloaded, so you don't trade daily ride quality for load support. Smooth, controlled, no harshness — even when driving unloaded.
• 3" Surplus Extension Travel: Off-road articulation with increased comfort and confidence. The extra extension travel means your Ram 1500 can flex over trail obstacles, dips, and uneven terrain without binding or losing wheel contact — critical for Rebel owners, overlanders, and anyone running the trails.
• Axle-Mounted Outboard Frame Rails: Air springs mount outboard of the frame rails on the axle for maximum stability, consistent pressure, and precision load distribution.
• Precision Fitment: Built-in locating features reference off the factory frame and axle, guaranteeing proper fitment and operation for every install. No guesswork, no shimming.
• OEM Hitch Integration: Compatible with all OEM and aftermarket 5th wheel hitches. The LOGIQ system is designed to work alongside your existing hitch setup, not replace it or require modifications.
• Tested Tough: LOGIQ Air Spring Kits are universally validated to withstand the harshest conditions. Semi-trucks, buses, and trains have used air springs for decades because they outperform coils under load — LOGIQ brings that proven technology to your pickup.

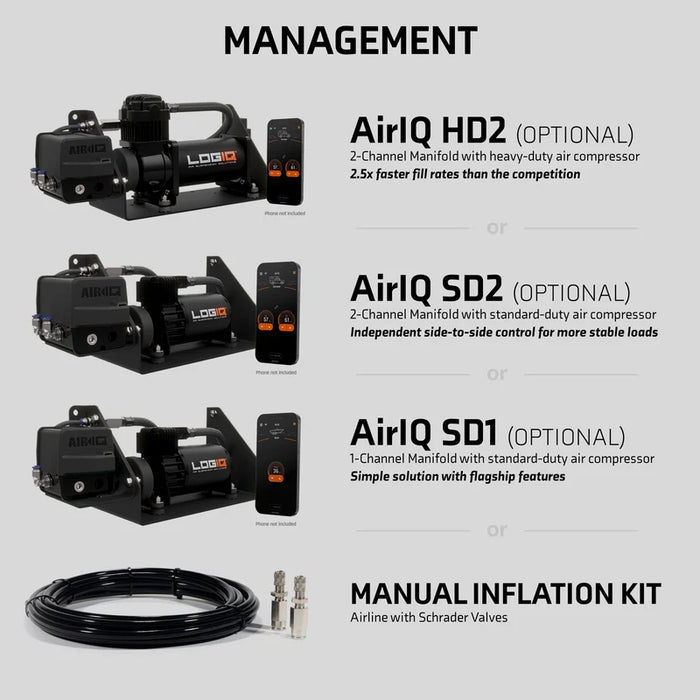

• Choice of Air Management: The default kit includes a Manual Inflation Kit (airline + Schrader valves + zip ties) for simple, wiring-free operation. Upgrade to one of three AirIQ Smart Air Management Packages for app and remote control.

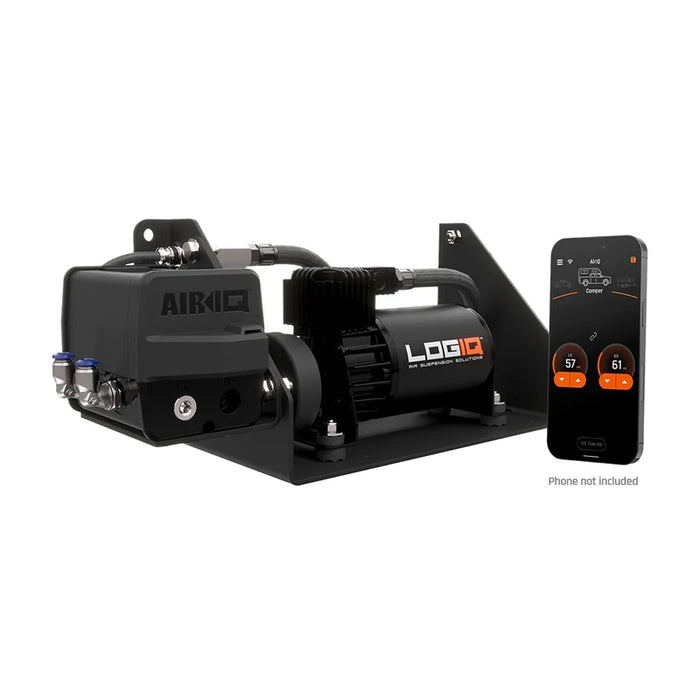

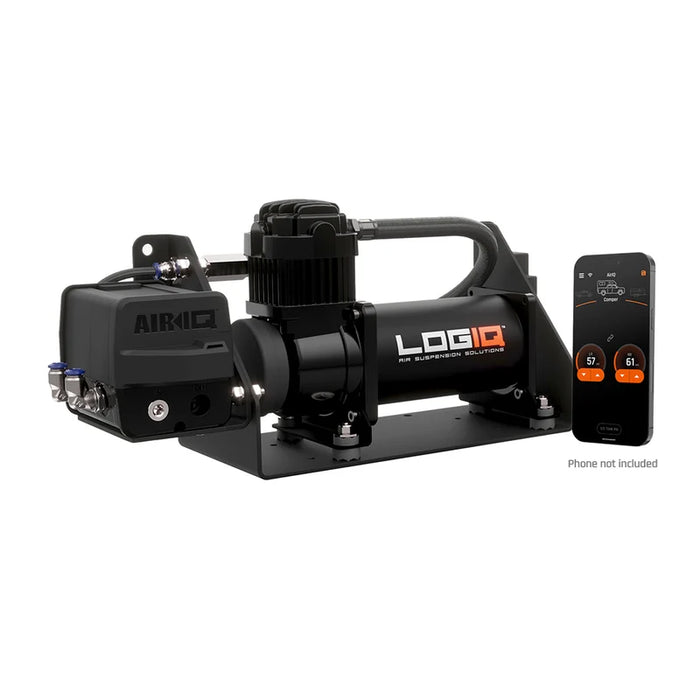

• AirIQ HD2 (Optional): 2-channel Smart Manifold + Heavy-Duty compressor. Independent driver/passenger air control. Up to 2.5x faster than competitors.

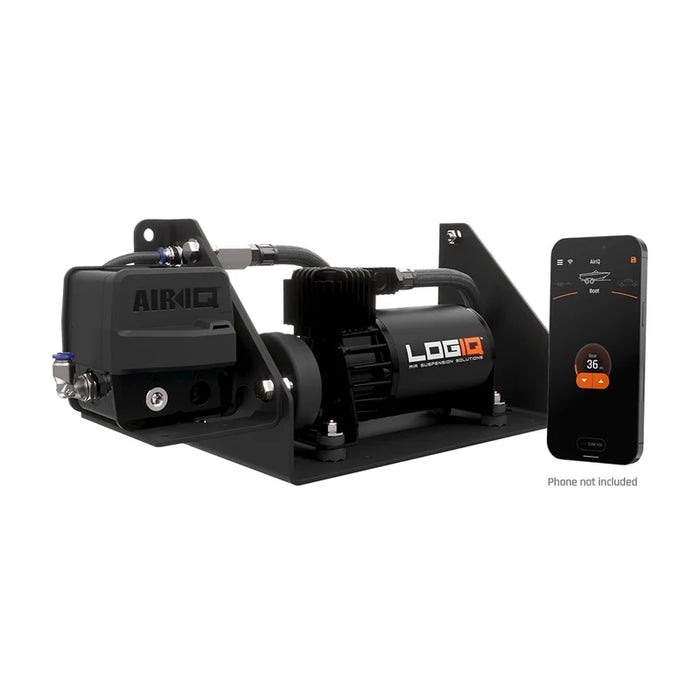

• AirIQ SD2 (Optional): 2-channel Smart Manifold + Standard-Duty compressor. Independent driver/passenger control. 2x faster than competitors.
• AirIQ SD1 (Optional): 1-channel Smart Manifold + Standard-Duty compressor. Paired rear controls. Simple and sophisticated.

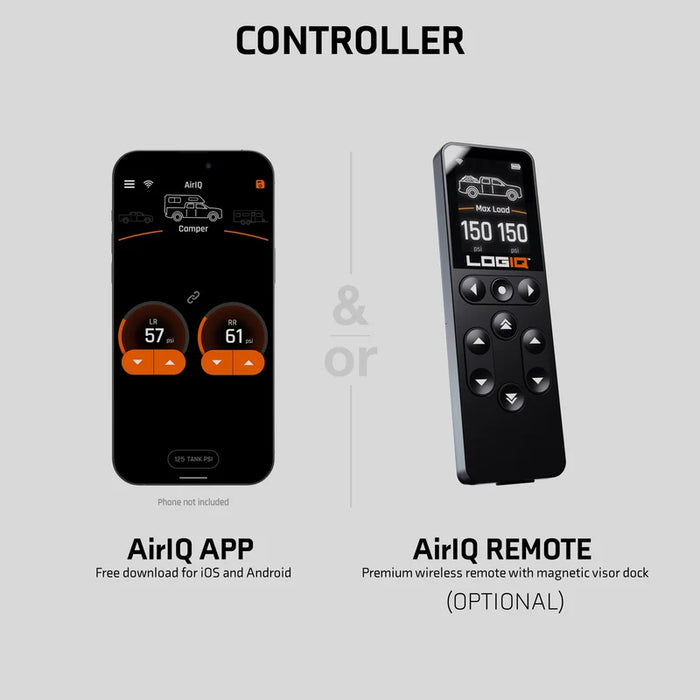

• AirIQ App Control: FREE download. Control inflation, deflation, presets, and monitoring from your phone with the LOGIQ ecosystem.
• Optional AirIQ Remote: 2-channel wireless remote for app-free quick-access control.
• Optional 2-Gallon Boost Tank: Powder-coated aluminum air tank for faster lifts and sustained air delivery.
• Lift-Height Flexibility: Fits factory-height trucks and up to +3" lifts out of the box. For lifts between +3" and +6", add the LOGIQ Rear Spacer Kit (89-11090-3) for proper geometry.

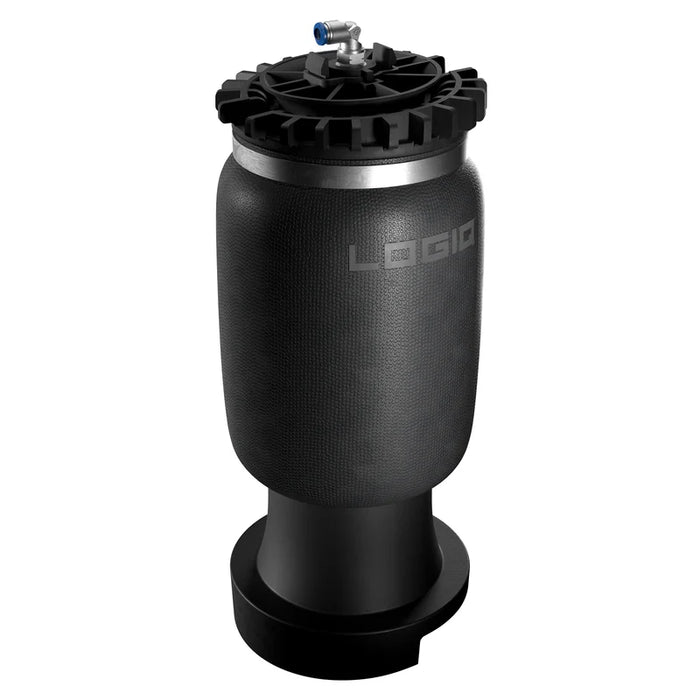

• Replacement Air Springs Available: Single replacement air spring (89-90008 / IQ-ASA-11090) available if you ever need service parts.
• Limited Lifetime Warranty + FREE ReadyGUARD Coverage: LOGIQ air spring kits are backed by a Limited Lifetime Warranty on the air springs, PLUS a FREE 5-year / 60,000-mile ReadyGUARD powertrain warranty. One of the strongest warranty packages in the air suspension aftermarket.

Fitment

Important Fitment Notes:

• Ride Height Compatibility: Fits factory to +3" lifts out of the box. For lifts between +3" and +6", add LOGIQ Rear Spacer Kit 89-11090-3 ($149.95).
• Replaces factory coil springs OR factory air suspension — this is a full coil replacement, not a helper spring. If your Ram has factory air (optional on some trims), this kit replaces that too.
• Covers both DT (New Body) and Classic (DS) platforms from 2019+ — Ram sold both bodies simultaneously starting in 2019 under separate nameplates. This single kit works for both because they share the same rear suspension architecture.
• 5th Wheel Compatible — works with all OEM and aftermarket 5th wheel hitches without modification.
• 4x2 and 4x4 compatible — same kit works on both drivetrain configurations.
• Compatible with gas HEMI, Pentastar V6, and EcoDiesel powertrains — rear suspension architecture is consistent across engine options.

FAQ

• Is this a helper air bag kit or something more? This is NOT a helper air bag kit. The LOGIQ Air Spring Kit is a primary air suspension system that completely replaces your factory rear coil springs (or factory air suspension) with a true air spring setup. Unlike helper bags that sit on top of existing coils to add load support, LOGIQ swaps the coils entirely — giving you full air suspension functionality, OEM-style ride quality unloaded, and massive load support when hauling.
• Will this fit my lifted Ram 1500? Out of the box, the kit fits factory height to +3" lifts. For lifts between +3" and +6", add the LOGIQ Rear Spacer Kit (89-11090-3, $149.95). Lifts over +6" require custom geometry work — contact us if you have a taller lift.
• Does this fit my Ram 1500 Rebel? Yes — and it's one of the most popular applications. Multiple verified customer installs on 2022–2025 Rebels, including Rebels with lift kits. Customers report dramatically improved ride quality on the off-road-tuned Rebel suspension.
• Does this fit the 2019+ Ram 1500 Classic (DS body)? Yes. Starting in 2019, Ram sold both the all-new DT body and the previous-generation DS body (badged as "Classic") simultaneously. This single kit works for both because they share the same rear suspension architecture.
• Does this replace my factory air suspension? Yes. If your Ram 1500 is equipped with the optional factory 4-corner air suspension, this kit replaces the rear air components with LOGIQ's primary air spring system. You'll gain more load capacity, better ride tuning, and the LOGIQ ecosystem of smart air management options.

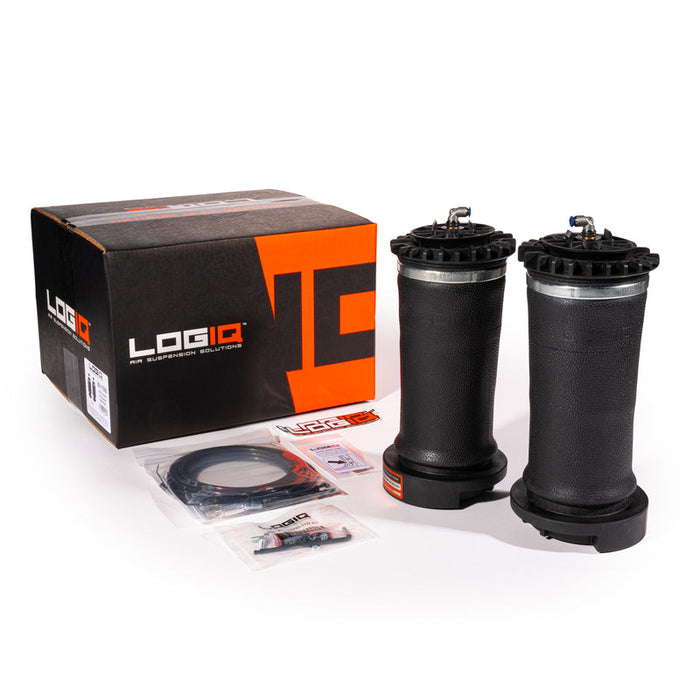

• What's included in the base kit? (1) Driver Side Air Spring Assembly, (1) Passenger Side Air Spring Assembly, (1) Hardware Kit, and (1) Manual Inflation Kit (airline + Schrader valves + zip ties). You'll need to add a compressor-based AirIQ Air Management Package separately if you want app or remote control.
• What's the difference between the AirIQ HD2, SD2, and SD1 Air Management options? All three provide smart app/remote control. The HD2 has a 2-channel smart manifold (independent driver/passenger control) and the Heavy-Duty compressor (2.5x faster than competitors). The SD2 has the same 2-channel manifold but with the Standard-Duty compressor (2x faster than competitors). The SD1 has a 1-channel manifold (paired rear control) with the Standard-Duty compressor. HD2 is the premium option; SD1 is the budget-friendly entry.
• Do I need an Air Management Package to use this kit? No. The default option is the Manual Inflation Kit (included at no additional cost) — just a length of airline with Schrader valves. You inflate from any compressor (shop air, portable 12V pump, etc.) to your desired ride height. Simple, wiring-free, no app needed. Upgrade to an AirIQ AMP when you want smart on-board air.
• Is the kit compatible with my 5th wheel hitch? Yes. The LOGIQ Air Spring Kit is compatible with ALL OEM and aftermarket 5th wheel hitches without modification. The air springs are axle-mounted outboard of the frame, so they don't interfere with bed-mounted hitch hardware.
• What's the lifting force at 100 PSI? 80 PSI? Lifting force scales linearly with PSI. At 150 PSI maximum, the kit delivers 6,000 lbs of lifting force. At 100 PSI (roughly 2/3 max pressure), expect approximately 4,000 lbs. At 80 PSI (common cruising pressure), expect approximately 3,200 lbs. Always observe the 20 PSI minimum and 150 PSI maximum pressure limits.
• What's the payload capacity vs the lifting force? Lifting force (6,000 lbs @ 150 PSI) is the total force the air springs can generate. Payload capacity (3,800 lbs @ 150 PSI) is the real-world payload the kit will support with proper ride height maintained. Always observe your Ram 1500's factory GVWR and maximum payload rating — the air springs don't change your truck's rating, they just support loads better.
• Can I use this to lower my truck for easier loading? Yes. At 20 PSI minimum pressure, you can lower the rear ride height for easier bed loading, trailer hookup, or motorcycle loading via ramps. Multiple customer reviews mention this as a game-changing feature.
• How long does installation take? The base coil replacement is one of LOGIQ's easiest-installing kits — click into place after removing factory coils. Expect 2–4 hours for the air springs alone. Add 2–3 hours for an AirIQ Air Management Package installation (electrical wiring, compressor mounting, air line routing).
• What's the warranty? LOGIQ Air Spring Kits come with a Limited Lifetime Warranty on the air springs themselves, PLUS a FREE 5-year / 60,000-mile ReadyGUARD Powertrain Warranty. One of the strongest warranty packages in the air suspension aftermarket.
• Where can I get replacement air springs? Individual replacement air springs are available as part #89-90008 (IQ-ASA-11090) for $349.95. One of the benefits of going with LOGIQ — service parts are readily available.
• Does the kit work with my aftermarket shocks? The air springs replace factory coils — your shocks are a separate component. The kit works with factory shocks and most aftermarket shocks designed for the Ram 1500. Verify shock travel compatibility with the +3" extension travel if running aftermarket.
• Will this affect my truck's warranty? Modifying rear suspension may affect your powertrain warranty depending on your dealer. LOGIQ addresses this with the FREE 5-year / 60,000-mile ReadyGUARD Powertrain Warranty — effectively a backup warranty when you install the kit. Contact LOGIQ or your installer for ReadyGUARD registration details.

Warranty

The LOGIQ Air Spring Kit is backed by LOGIQ's Limited Lifetime Warranty against defects in materials and workmanship for the original purchaser. Air springs, hardware, and included components are covered for the life of the vehicle (original owner).

FREE ReadyGUARD 5-Year / 60,000-Mile Powertrain Warranty is included with every LOGIQ Air Spring Kit — providing supplemental powertrain coverage when the kit is professionally installed per manufacturer specifications. ReadyGUARD registration required; see LOGIQ's warranty page for terms and conditions.

Warranty does not cover damage from accidents, improper installation, overloading beyond specified capacity, exceeding vehicle GVWR, or use on vehicles not listed in the fitment guide. Contact Recon Recovery to initiate a warranty claim.
