LOGIQ AIRIQ HD2 – PREMIUM 2-CHANNEL SMART AIR MANAGEMENT PACKAGE WITH HEAVY-DUTY 400HD COMPRESSOR, BLUETOOTH APP CONTROL, FULL IP67 WEATHERPROOFING & LIMITED LIFETIME WARRANTY

Take ultimate control of your LOGIQ air suspension system with the AirIQ HD2 — LOGIQ's premium flagship AMP that combines the 2-channel Smart Manifold with the Heavy-Duty 400HD compressor for the fastest, most capable, and most durable air management package in the LOGIQ lineup. The HD2 is engineered for buyers who demand the best-of-the-best: 2.62 CFM at 0 PSI (29% more airflow than the Standard-Duty compressor), 33% duty cycle at 100 PSI (32% more continuous runtime), full IP67 weatherproofing on ALL components (including the compressor — unique to the HD2 vs IP54 on SD1/SD2), and 2.5x faster compressor speed vs competitor compressors. Whether you're towing a 34ft travel trailer behind your lifted 2023 F-250 (per verified customer review that was a trip-saver with overnight service support), running a 2022 Ram 1500 that previously went through 4 failed Airlift compressors in less than a year (per verified customer who switched to LOGIQ and never looked back), hauling an ATC toy hauler with your 2018 Ram 3500, pulling 12,000 lb travel trailers and dump trailers daily, or building the ultimate overland/expedition platform, the HD2 delivers the premium smart air management experience.

Every detail is engineered to premium specs. The 2-Channel AirIQ Bluetooth Management System provides independent control of each air spring from the AirIQ App — critical for managing offset loads where the driver and passenger sides need different pressures. The LOGIQ 400HD Heavy-Duty compressor is the engineering centerpiece: it delivers 2.62 CFM at 0 PSI (vs the SD1/SD2's 2.03 CFM, a 29% increase in airflow), a 33% duty cycle at 100 PSI (vs the Standard-Duty's 25%, a 32% increase in continuous runtime), and runs 2.5x FASTER than competitor compressors (vs the Standard-Duty's 2x faster). Verified customer comparison from a 2022 Ram owner who replaced a 4-time-failed Airlift system: "it's at least twice as fast... it makes half the noise." The ENTIRE SYSTEM carries IP67 ingress protection — unlike the SD1/SD2 (which have IP67 on all components except the IP54-rated compressor), the HD2 compressor is ALSO IP67-rated (fully dust-tight and submersible to 1m depth). Premium weatherproofing throughout.

Installation is streamlined by LOGIQ's factory-assembled, pre-tested approach. The kit ships with the AirIQ HD2 Management System pre-installed with a 20ft wiring harness, 4 Easy Frame Mounting Brackets with hardware, 20ft of 1/4" air line, fuse taps, and 18ft of wire loom. Verified customer review from a 2018 Ram 3500 ATC toy hauler owner: "Easy to mount, plumb, and wire." The AirIQ App (FREE download for iOS and Android) connects via Bluetooth with real-time dual-channel pressure monitoring, independent inflate/deflate controls, trailer presets, and system diagnostics. Verified customer review: "the app works much better" than Airlift's app, and "the remote is light-years ahead of the airlift unit." LOGIQ's industry-leading customer service is universally praised across verified reviews — multiple customers specifically name customer service reps "Reno" (new in this review set) and "Frank/Frankie Acuna" (named in other LOGIQ product reviews). Trip-saving overnight replacements are documented across multiple reviews.

Pair the HD2 with the optional AirIQ Remote (sold separately, $149.95) for app-free quick-access control. Add the optional 2-Gallon Aluminum Boost Tank (sold separately, $224.95) for even faster lifts and sustained air delivery on the biggest air spring kits. The HD2 is universally compatible with ANY LOGIQ air spring kit (all 13 LOGIQ SKUs) AND compatible aftermarket helper bags.

Key Highlights:

• PREMIUM FLAGSHIP AMP — LOGIQ's top-tier Air Management Package
• 2-Channel Smart Manifold (independent L/R air control — same as SD2)
• Heavy-Duty 400HD compressor (upgraded from Standard-Duty)
• 2.62 CFM at 0 PSI (29% more airflow than SD1/SD2)
• 33% duty cycle at 100 PSI (32% more runtime than SD1/SD2)
• 2.5x FASTER than competitor compressors (vs 2x on Standard-Duty)
• 150 PSI maximum output
• 12V operation, 40 Amp current draw
• IP67 ALL COMPONENTS (including compressor — unique vs SD1/SD2)
• Bluetooth AirIQ App control (FREE iOS + Android)
• 20ft wiring harness pre-installed
• 20ft 1/4" air line included
• 4 Easy Frame Mounting Brackets included
• Fuse taps + 18ft wire loom included
• Factory-assembled and pre-tested
• Universal compatibility with ALL LOGIQ air spring kits
• Compatible with select aftermarket helper bags
• Optional AirIQ Remote (sold separately)
• Optional 2-Gallon Boost Tank (sold separately)
• Verified "twice as fast" vs Airlift competitors
• Verified "half the noise" vs Airlift competitors
• Legendary LOGIQ customer service (verified overnight trip-saving replacements)
• Limited Lifetime Warranty

Specs

Features

• 2-Channel Smart Manifold: Provides independent control of the driver and passenger side air springs. SAME manifold as the mid-tier SD2 — the HD2 upgrades the compressor, not the manifold.
• Heavy-Duty 400HD Compressor — The Engineering Centerpiece: This is what makes the HD2 the HD2. The 400HD delivers:
  • 2.62 CFM at 0 PSI — 29% more airflow than the Standard-Duty 275SD (2.03 CFM)
  • 33% duty cycle at 100 PSI — 32% more continuous runtime than Standard-Duty (25%)
  • 2.5x faster than competitor compressors — vs 2x on Standard-Duty
    Translation: faster inflation, longer continuous runtime, better capacity under heavy demand.
• IP67 ALL COMPONENTS — Unique to HD2: The HD2 compressor is IP67-rated (fully dust-tight and submersible to 1 meter), vs the SD1/SD2 compressor which is IP54 (dust-protected and splash-resistant). The ENTIRE HD2 system is IP67. Premium weatherproofing for serious off-road, overland, work truck, and marine applications.
• Verified "Twice as Fast" vs Airlift: Verified customer review from a 2022 Ram owner who switched from a 4-time-failed Airlift system to the LOGIQ HD2: "it's at least twice as fast... it makes half the noise." Direct testimonial advantage over Airlift (one of the dominant competitors in the air management space).
• Verified "Half the Noise": Same customer review documents the HD2's quieter operation vs Airlift competitors. Important for daily-driver use cases where compressor noise matters.
• 150 PSI Maximum Output: Matches the maximum pressure rating of all LOGIQ air spring kits.
• 12V Operation, 40 Amp Current Draw: 10A more current draw than the SD1/SD2 (30A). Reflects the Heavy-Duty compressor's higher power. Requires a 50A fused circuit for safety margin.
• Bluetooth AirIQ App (FREE): iOS + Android. Verified customer review: "the app works much better" than Airlift's. Features:
  • Real-time dual-channel pressure display
  • Independent L/R inflate/deflate
  • Trailer presets (one-tap towing setup)
  • Pressure differential alerts
  • System diagnostics
• AirIQ Remote "Light-Years Ahead" of Competitors: Verified customer review: "the remote is light-years ahead of the airlift unit." The optional AirIQ Remote (sold separately, $149.95) is specifically called out as a premium feature advantage.
• Factory-Assembled & Pre-Tested: Every HD2 ships pre-assembled and tested for guaranteed performance.
• 20ft Wiring Harness Pre-Installed: Simplifies install significantly.
• Easy Frame Mounting Brackets: 4 pre-fabricated frame mounting brackets. SAME brackets as SD1 and SD2 — commonality across the AirIQ lineup for consistent install experience.
• 20ft of 1/4" Air Line + 18ft of Wire Loom: Standard inclusion.
• Fuse Taps Included: For connecting the AirIQ to a 12V power source via your truck's fuse box.
• Universal Compatibility: The AirIQ HD2 is compatible with ALL LOGIQ air spring kits in the catalog:
  • Ram 1500 (89-11090)
  • Ram 2500 HD (89-12140)
  • Ram 3500 (88-13130)
  • Ford F-150 2009-2014 (88-21090)
  • Ford F-150 2015-2027 (88-21150)
  • Ford Super Duty 2011-2016 (88-23110)
  • Ford Super Duty 2017-2022 (88-23170)
  • Ford Super Duty 2023-2027 (88-23230)
  • GM 1500 2007-2018 (88-31070)
  • GM 1500 2019-2027 (88-31190)
  • GM HD 2011-2019 (88-33110)
  • GM HD 2020-2027 (88-33200)
  • Toyota Tundra 2007-2021 (88-52070)
• Compatible with Select Aftermarket Helper Bags: Verified customer reviews document HD2 compatibility with Airlift replacement scenarios (2022 Ram 1500 switched from Airlift to LOGIQ HD2).
• Factory-Tuned Pressure Sensors: The 2-channel manifold includes integrated pressure sensors (one per channel) for independent L/R pressure monitoring.
• Optional AirIQ Remote (Sold Separately): 2-channel wireless remote (part 50-21200, $149.95). Verified customer: "light-years ahead of the airlift unit."
• Optional 2-Gallon Aluminum Boost Tank (Sold Separately): Powder-coated aluminum air tank (part 50-10200, $224.95). Especially valuable with the HD2's higher airflow — the tank acts as a reserve that lets the Heavy-Duty compressor deliver sustained air to large air spring kits.
• Legendary LOGIQ Customer Service — Multiple Verified Trip-Saves: Verified customer reviews consistently rate LOGIQ customer service 5-star:
  • "Reno" named by one customer for responsive support and ideas for app expansion
  • Overnight part replacement before a travel trailer road trip (lifted 2023 F-250)
  • 1-year-post-install issue diagnosed immediately with overnighted replacement
  • Multiple customers compare LOGIQ customer service favorably to Airlift (whose service they describe as "abysmal")
• Limited Lifetime Warranty: LOGIQ AirIQ systems come with a Limited Lifetime Warranty against defects in materials and workmanship for the original purchaser.

What's Included

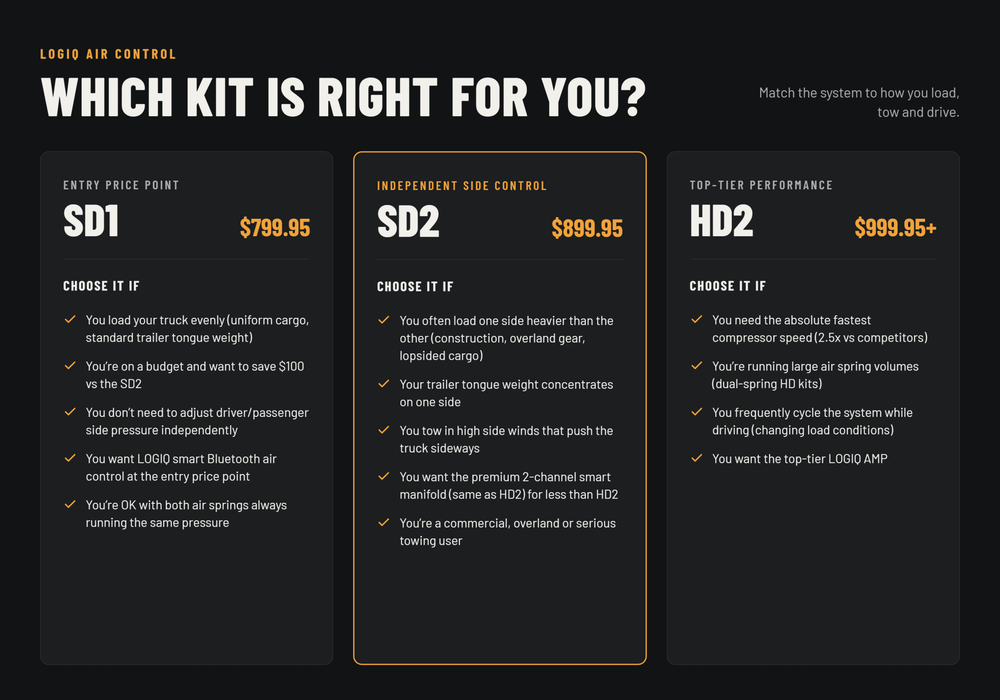

AirIQ Comparison Table

When to Choose HD2 Over SD2

Choose the HD2 ($999.95) if:

• You run large air spring volumes (dual-spring HD kits like Ford Super Duty 88-23110/23170/23230 or GM HD 88-33110/33200)
• You need the fastest possible compressor (33% more runtime, 29% more airflow, 2.5x faster than competitors)
• You frequently cycle the system during drives (changing load conditions, variable towing)
• You want full IP67 weatherproofing including the compressor (overland, work truck, marine)
• You tow frequently and heavily (10,000+ lb trailers)
• You're building the ultimate LOGIQ system and want zero compromises
• You've had Airlift failures and want a proven replacement (verified customer scenarios)

Choose the SD2 ($899.95) if:

• You want independent L/R control but don't need the fastest compressor
• Your air spring kit is a half-ton single-sleeve kit (lower air volume)
• You tow occasionally or moderately
• You want to save $100 vs the HD2
• Standard IP54 compressor rating is acceptable for your use case

Choose the SD1 ($799.95) if:

• You load evenly and don't need independent L/R control
• You want the budget entry point into LOGIQ smart AMP
• You're on a tight budget

FAQ

• What's the difference between the AirIQ HD2 and SD2? Two differences: (1) compressor — the HD2 has the Heavy-Duty 400HD (2.62 CFM, 33% duty cycle, 2.5x faster than competitors); the SD2 has the Standard-Duty 275SD (2.03 CFM, 25% duty cycle, 2x faster than competitors). (2) IP rating — the HD2 compressor is IP67 (fully dust-tight, submersible to 1m); the SD2 compressor is IP54 (dust-protected, splash-resistant). Both have 2-channel smart manifolds and identical electronics otherwise. The HD2 costs $100 more.
• Is the Heavy-Duty compressor really worth the $100 upgrade? Depends on your use case. The HD2's 400HD compressor delivers 29% more airflow (2.62 vs 2.03 CFM), 32% more continuous runtime (33% vs 25% duty cycle), and runs 2.5x faster vs 2x faster vs competitors. For large air spring kits (Ford Super Duty, GM HD, Ram HD — all 4-air-spring configurations with 6,400 lb capacity), the HD2's higher airflow fills the bags noticeably faster. For heavy towing applications, the longer duty cycle matters. For overland/marine use cases, the IP67 compressor rating is a real benefit. For half-ton applications with standard towing, the SD2 may be sufficient.
• What does "33% duty cycle at 100 PSI" mean? Duty cycle is the percentage of time the compressor can run continuously before needing to cool down. The HD2's 33% duty cycle at 100 PSI means it can run for 33% of any 60-minute period before needing a cool-down break. The SD1/SD2's 25% duty cycle means they can run for 25% of any 60-minute period. In practice: the HD2 handles more intense cycling scenarios (constant pressure adjustments during towing, large air spring volumes, variable load conditions) better than the Standard-Duty units.
• What does "IP67" mean vs "IP54"? Ingress Protection ratings describe dust and water resistance. IP54 means dust-protected (dust can enter but won't damage) and splash-resistant from any direction. IP67 means fully dust-tight (zero dust ingress) and submersible to 1 meter depth for 30 minutes. The HD2's full IP67 rating (including compressor) makes it the appropriate choice for serious off-road, overland, work truck, marine, and farming applications where the system will be exposed to dust, mud, water crossings, pressure washing, or submersion risk.
• How much faster is the HD2 vs competitor compressors? The LOGIQ 400HD compressor runs 2.5x faster than competitor compressors from traditional helper bag brands (Airlift, Firestone, PacBrake). Verified customer who switched from Airlift to LOGIQ HD2: "it's at least twice as fast... it makes half the noise."
• Does the HD2 work with any LOGIQ air spring kit? Yes. The AirIQ HD2 is universally compatible with ALL LOGIQ air spring kits across Ram, Ford F-150, Ford Super Duty, GM 1500, GM HD, and Toyota Tundra platforms. The HD2 is especially recommended for the larger 4-air-spring HD kits (Ford Super Duty 88-23110/23170/23230, GM HD 88-33110/33200) where the Heavy-Duty compressor's higher airflow fills the larger air spring volume faster.
• Does the HD2 work with aftermarket helper bags? Verified compatibility with Airlift replacement scenarios (2022 Ram 1500 customer switched from 4-time-failed Airlift system to LOGIQ HD2). Compatibility with other brands (Firestone, PacBrake, Carli Full Travel Bags) depends on the specific bag model. Contact us for compatibility verification before ordering if you're pairing with non-LOGIQ bags.
• Can I upgrade from the SD1 or SD2 to the HD2 later? The SD2 → HD2 upgrade is more straightforward since both use the same 2-channel manifold — you'd primarily be upgrading the compressor and the IP67 enclosure. The SD1 → HD2 upgrade requires a new manifold (going from 1-channel to 2-channel) in addition to the compressor upgrade. In either case, upgrading means purchasing a new AMP, so if you think you'll want the HD2 eventually, start with it to avoid the upgrade cost.
• Can I upgrade from the Manual Inflation Kit to the HD2 later? Yes. The Manual Inflation Kit (included free with every LOGIQ air spring kit) is a simple airline + Schrader valve setup. You can upgrade to the HD2 at any time by removing the Manual Inflation Kit components and installing the HD2 in its place.
• What's included in the box? (1) AirIQ HD2 Air Management System with 20ft wiring harness pre-installed, (4) Frame Mounting Brackets and Hardware, (1) Installation Kit: 20ft 1/4" air line, fuse taps, 18ft wire loom. Does NOT include: 2-Gallon Boost Tank (sold separately), AirIQ Remote (sold separately).
• What's the AirIQ App like? FREE download for iOS and Android. Verified customer review (switching from Airlift): "the app works much better" than Airlift's. Features include real-time dual-channel pressure monitoring, independent L/R inflate/deflate, trailer presets, pressure differential alerts, and system diagnostics.
• Do I need the AirIQ Remote? No — the AirIQ App on your phone works great as the primary control interface. But the optional AirIQ Remote ($149.95) is specifically praised in verified reviews as "light-years ahead of the airlift unit." Worth considering if you want dash-mounted or steering-wheel-mounted wireless control from the driver's seat.
• Do I need the 2-Gallon Boost Tank? Depends on your use case. The HD2 compressor can drive any LOGIQ air spring kit without a boost tank. But the optional 2-Gallon Aluminum Boost Tank ($224.95) is especially valuable with the HD2's higher airflow — the tank acts as a reserve that lets the Heavy-Duty compressor deliver sustained air to large air spring kits. Recommended for Ford Super Duty, GM HD, and Ram HD applications with 4-air-spring configurations.
• How does the HD2 compare to Airlift Load Controller systems? Multiple verified customer reviews document direct comparisons:
  • "Amazing quality, far superior than air lift compressors and the app works much better" (Robert S.)
  • "I had a competitor's product installed (airlift) the unit was plagued with problems. It failed 4 times in less than a year... customer service was abysmal... fast forward and the shop that installed it decided to not be an airlift partner any longer and suggested LOGIQ... it's at least twice as fast... it makes half the noise... customer service is great and the remote is light-years ahead of the airlift unit." (Arrin A.)
    LOGIQ HD2 is positioned as the premium upgrade or replacement for Airlift systems that have failed, been poorly supported, or just underperformed.
• What's the current draw and electrical requirements? 12V operation, 40 Amp current draw at full compressor load. This is higher than the SD1/SD2 (30A) — reflects the Heavy-Duty compressor's higher power. The included fuse taps are rated for the application. Install on a 50A circuit for safety margin.
• How reliable is the HD2 long-term? Verified customer reviews consistently document long-term reliability:
  • "Had one small issue a year after installing, and they helped me diagnose the issue immediately and had the new part overnighted" (Tim) — 1-year post-install support
  • Lifted 2023 F-250 with 34ft travel trailer — "it has worked flawlessly and seamlessly with the app" (Robert H.)
  • 2018 Ram 3500 with ATC toy hauler — "Easy to mount, plumb, and wire. This pump combined with the bags got the truck and trailer riding perfectly level and comfortable." (Greg H.)
    Combined with Limited Lifetime Warranty and legendary customer service, long-term reliability is a core LOGIQ brand asset.
• How does LOGIQ customer service work? Universally praised across verified reviews. Multiple customer service reps named by customers:
  • "Reno" — responsive support, provided ideas for app expansion to control airbag hitch
  • "Frank" / "Frankie Acuna" — named across multiple other LOGIQ product reviews
    Verified real-world experiences: overnight replacement parts before travel trailer road trips, 1-year-post-install issue diagnosis and overnight part shipping, pre-installation technical consultation. "Customer service is next level!!!" (Robert H.)
• How long does the AirIQ HD2 take to install? Expect 2–3 hours for AirIQ installation on top of the base air spring kit install. The pre-installed wiring harness, pre-assembled manifold+compressor, and included frame mounting brackets speed up the install significantly. Verified customer review: "Easy to mount, plumb, and wire." Add install time if you're mounting around complex factory accessories (power running boards, aftermarket tanks, etc.).
• Where do I mount the AirIQ HD2? The compressor and manifold are typically frame-mounted on the inside of the frame rail. The included Easy Frame Mounting Brackets locate to common frame mounting points. The HD2's IP67 compressor rating allows for more exposed mounting locations than the SD1/SD2's IP54 compressor (which would require some splash protection).
• What's the warranty? LOGIQ AirIQ systems come with a Limited Lifetime Warranty against defects in materials and workmanship for the original purchaser. Combined with legendary customer service (overnight replacement parts documented across multiple verified reviews), this is one of the strongest warranty-plus-support packages in the air management category.

Warranty

The LOGIQ AirIQ HD2 is backed by LOGIQ's Limited Lifetime Warranty against defects in materials and workmanship for the original purchaser. Heavy-Duty 400HD compressor, 2-channel smart manifold, control module, pressure sensors, wiring harness, frame mounting brackets, and included components are covered for the life of the vehicle (original owner).

Warranty does not cover damage from accidents, improper installation, exceeding voltage/current ratings, exceeding operating pressure limits (150 PSI max), or use outside of the intended air spring/helper bag application. Contact Recon Recovery to initiate a warranty claim.
