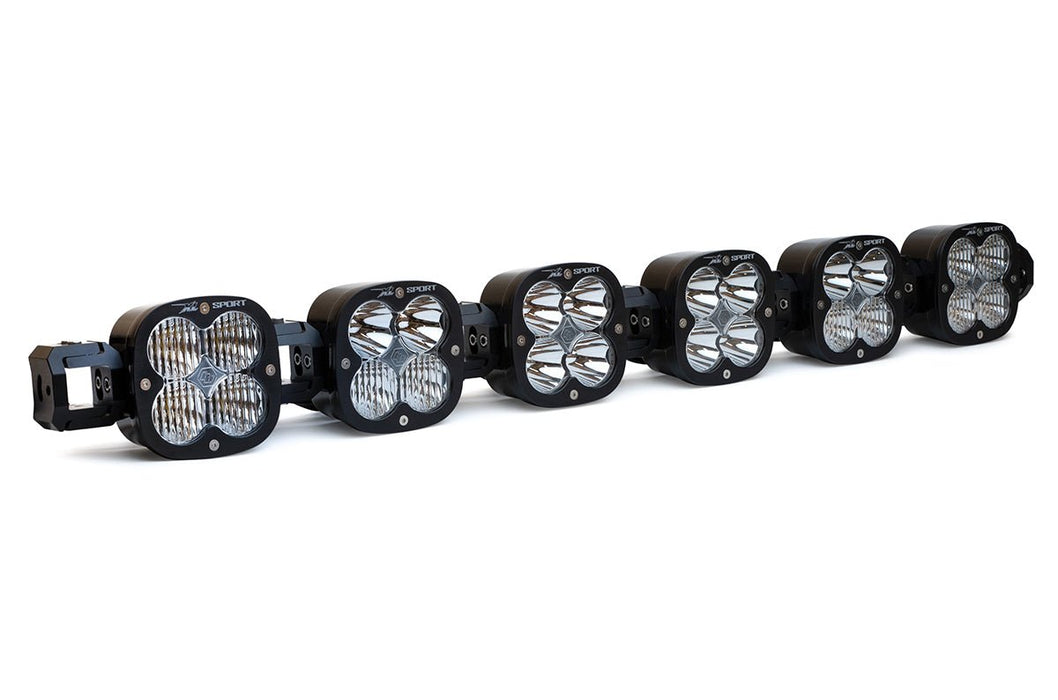

Experience full adjustment and total performance with the Baja Designs XL Sport Linkable LED light bar kit, engineered for enthusiasts seeking to take charge with a lighting package that is completely customizable. Built around our popular XL shallow moto housing, each light offers 3,162 raw lumens each from our next generation LEDs and can be configured with 3 up to 9 forward projecting lights that provide a smooth blend due to the use of multiple lens pattens illuminating zones 1, 2, 3 and 4 simultaneously. The unique feature of our XL Linkable system provides 45 degrees of vertical pitch adjustment within each light or the entire unit. Completely independent horizontal adjustment per light allows for straight or arc configurations to perfectly match the lines of your vehicle's bumper or roofline. The wiring comes fully crimped and trimmed, allowing for easy installation and the ability to add links down the road, and black rock guards are included to protect the lights when not in use. If you're looking to have a lighting system that performs as well as it looks, this is the auxiliary light kit for you!

Features

• Built around our popular XL shallow moto housing, each light offers 3,162 raw lumens each from our next generation LEDs and can be configured with 3 up to 9 forward projecting lights that provide a smooth blend due to the use of multiple lens pattens illuminating zones 1, 2, 3 and 4 simultaneously

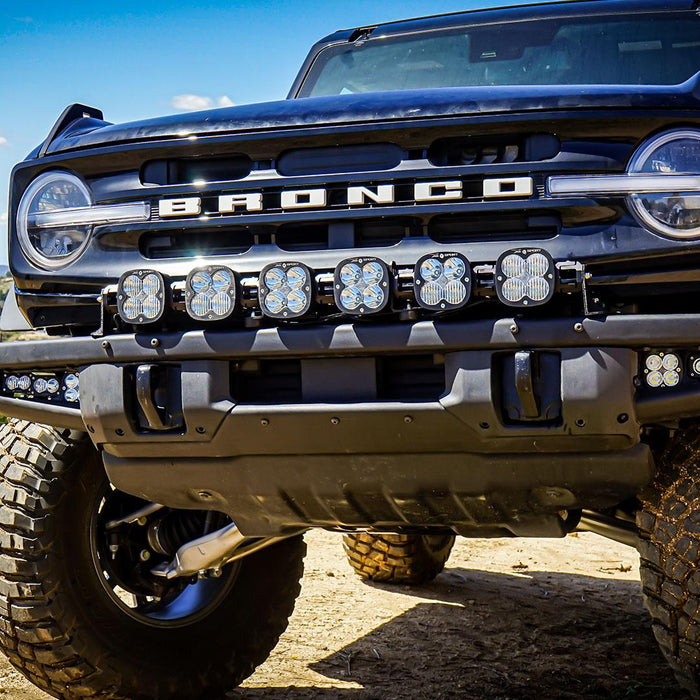

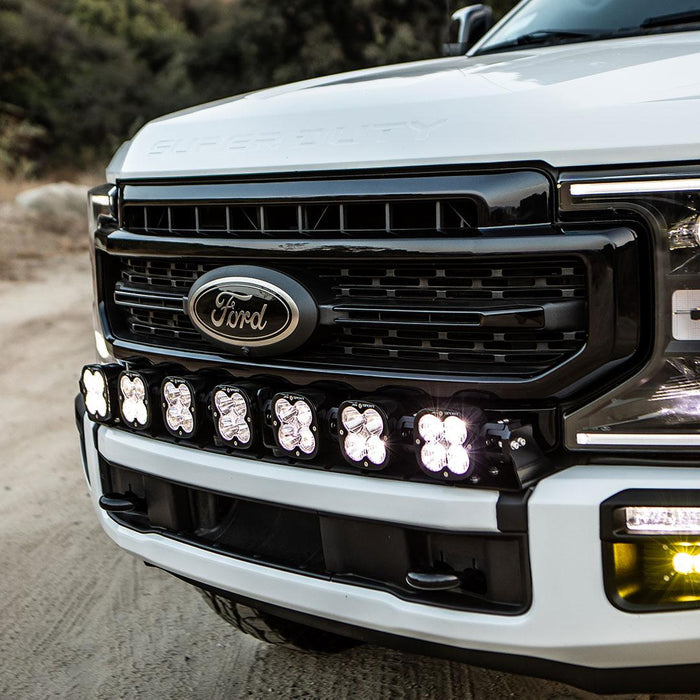

• Completely independent horizontal adjustment per light allows for straight or arc configurations to perfectly match the lines of your vehicle's bumper or roofline
• NOTE: This light does not come with mounting brackets. The applicable mounting brackets are 748003
• Satisfaction Guarantee - 30-Day Money Back Guarantee
• The unique feature of our XL Linkable system provides 45 degrees of vertical pitch adjustment within each light or the entire unit

Specifications

• Product Type: XL Linkable LED Light Bar
• Beam Pattern: Multi-Pattern
• Lens Color: Clear
• Brightness (Lumens): 18,900
• Amperage Draw (A): 12
• Wattage (W): 156

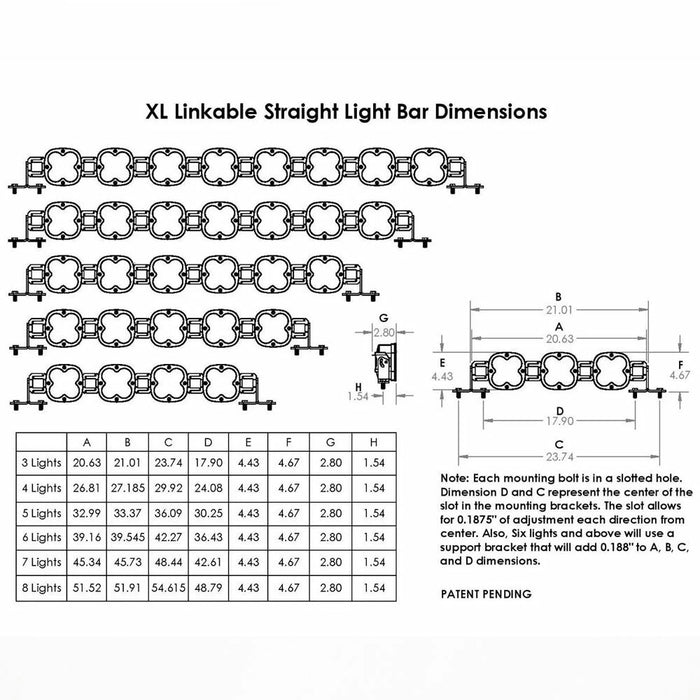

• Length (in.): 39.16
• Height (in.): 4.43
• Depth (in.): 2.8
• Housing Material: Hard Anodized and Powder Coated Cast Aluminum
• Lens Material: Hardcoated Polycarbonate
• Water Resistance: IP69K (Waterproof up to 9ft & Pressure Washable)
• Mounting Hardware Included: Yes
• Light Quantity: 6
• Lighting Modes: Beam
• Lighting Quantity: 24
• Lighting Technology: LED
• Lighting Type: Forward Projecting
• Mounting Hardware Description: Pre-Load Kit; Links; Rock Guards
• Mounting Hardware Material: Stainless Steel
• Overvoltage Protection: Built-In
• Universal or Specific: Universal
• Wiring Harness Included: Yes
• Standards/Compliance (Durability): Exceeds MIL-STD810G (Mil-Spec Testing)
• Standards/Compliance (Impact Resistance): IK10 Compliant (Mechanical Impact Testing)
• Average Rated Life (hr.): 49,930
• Bezel Material: Powder Coated Cast Aluminum
• Housing Color: Black
• Country of Origin: United States
• Package Dimensions: 24.000" L x 10.000" W x 8.000" H
• Package Weight: 17.000 lbs

Warranty

Manufacturer Warranty: Limited Lifetime

Baja Designs stands behind every product with their industry-leading warranty. Their LED lighting products are designed, engineered, and assembled in the USA to the highest standards. For warranty claims or questions, contact Recon Recovery at sales@reconrecovery.com or 1-800-359-9397.
